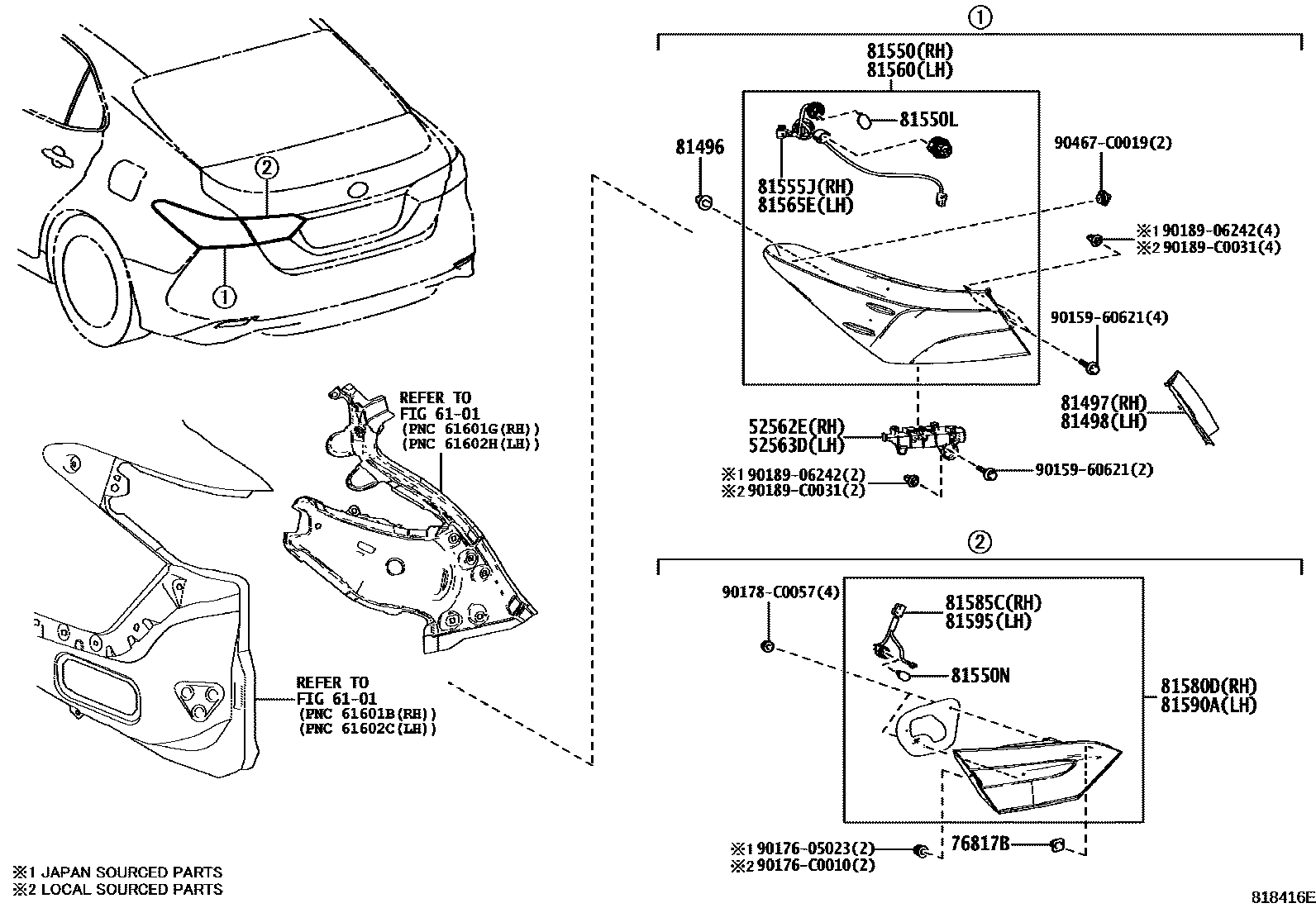

REAR COMBINATION LAMP

0001 1BULB TYPE(BACK UP LAMP & TURN0002 1LED TYPE(BACK UP LAMP & TURN

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-06170iAXVA70,AXVH71,MXVA71201712-202103

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-06170iAXVA70,AXVH71,MXVA71201712-202103

6101

76817BCLIP, REAR LAMP

main76817-26040iAXVA70,AXVH71,MXVA71201712-202103

81496GUIDE, REAR COMBINATION LAMP

main81496-0D030iASV71201712-202103

81497COVER, REAR COMBINATION LAMP, RH

main81497-06030iASV71201712-202103

81498COVER, REAR COMBINATION LAMP, LH

main81498-06030iASV71201712-202103

81550LAMP ASSY, REAR COMBINATION, RH

main81550-06740iAXVH71,MXVA71..G202103

WITHOUT(CLEARANCE & BACK SONER)

main81550-06760iAXVA70,AXVH71,MXVA71..G,S202103

main81550-06870iASV71..E201712-202103

VALUE PACKAGE

main81550-06880iAXVA70,MXVA71..G201712-202103

main81550-06890iAXVH71..G201712-202103

main81550-06A00iAXVA70,AXVH71,MXVA71..S201712-202103

main81550-06B20iAXVA70,MXVA71..S202206

BLACK EDITION

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iASV71..G201712-202103

12V 21W,AMBER

main90981-15021iASV71..E201712-202103

12V 21W,AMBER,VALUE PACKAGE

main90981-15021iAXVH71,MXVA71..E202103

12V 21W,AMBER,WITHOUT(CLEARANCE & BACK SONER)

81550NBULB, BACK UP LAMP

main90981-11059iMXVA71..G201712-202103

12V 16W

main90981-11059iASV71..E201712-202103

12V 16W,VALUE PACKAGE

main90981-11059iAXVH71,MXVA71..E202103

12V 16W,WITHOUT(CLEARANCE & BACK SONER)

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-06740iASV71..E201712-202103

VALUE PACKAGE

main81555-06740iAXVH71,MXVA71..E202103

WITHOUT(CLEARANCE & BACK SONER)

main81555-06760iASV71..G,S201712-202103

81560LAMP ASSY, REAR COMBINATION, LH

main81560-06740iAXVH71,MXVA71..E202103

WITHOUT(CLEARANCE & BACK SONER)

main81560-06760iAXVA70,AXVH71,MXVA71..G,S202103

main81560-06870iASV71..G201712-202103

VALUE PACKAGE

main81560-06880iASV71..G201712-202103

main81560-06890iAXVH71..G201712-202103

main81560-06A00iAXVA70,AXVH71,MXVA71..S201712-202103

main81560-06B20iAXVA70,MXVA71..S202206

BLACK EDITION

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-06740iAXVH71,MXVA71..E201712-202103

VALUE PACKAGE

main81555-06740iAXVH71,MXVA71..E202103

WITHOUT(CLEARANCE & BACK SONER)

main81555-06760iAXVA70,AXVH71,MXVA71..G,S201712-202103

81580DLAMP ASSY, REAR, RH

main81580-06640iAXVH71,MXVA71..G202103

WITHOUT(CLEARANCE & BACK SONER)

main81580-06640iASV71..E201712-202103

VALUE PACKAGE

main81580-06660iASV71..G201712-202103

main81580-06670iAXVH71..G201712-202103

main81580-06790iAXVA70,AXVH71,MXVA71..S201712-202103

main81580-06A10iAXVA70,MXVA71..S202206

BLACK EDITION

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-06640iASV71..E201712-202103

VALUE PACKAGE

main81585-06640iAXVH71,MXVA71..G202103

WITHOUT(CLEARANCE & BACK SONER)

main81585-06660iASV71..G,S201712-202103

81590ALAMP ASSY, REAR, LH

main81590-06640iAXVH71,MXVA71..E202103

WITHOUT(CLEARANCE & BACK SONER)

main81590-06640iASV71..G201712-202103

VALUE PACKAGE

main81590-06660iAXVA70,AXVH71,MXVA71..G,S201712-202103

main81590-06670iAXVH71..G201712-202103

main81590-06790iASV71..S201712-202103

main81590-06A10iAXVA70,MXVA71..S202206

BLACK EDITION

81595SOCKET & WIRE, REAR LAMP, LH

main81585-06640iASV71..G201712-202103

VALUE PACKAGE

main81585-06640iAXVH71,MXVA71..G202103

WITHOUT(CLEARANCE & BACK SONER)

main81585-06660iASV71..G,S201712-202103

9015960621

main90159-60621

9017605023

main90176-05023

90176C0010

main90176-C0010

90178C0057

main90178-C0057

9018906242

main90189-06242

90189C0031

main90189-C0031

90467C0019

main90467-C0019

24 parts on this diagram · 2 diagrams in section
