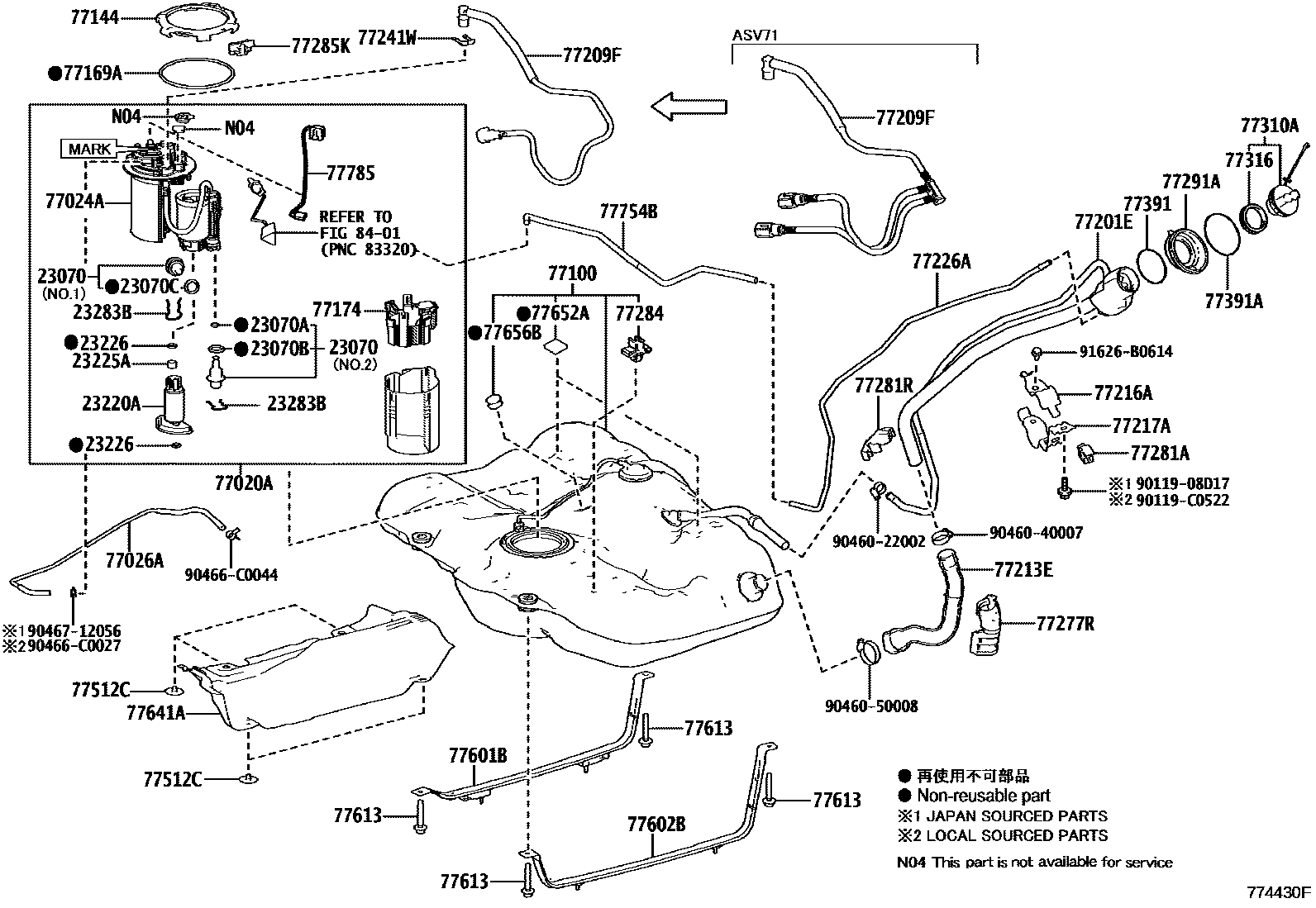

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
NO.1:REFER ILLUST.
EXHAUST EMISSION CONTROL-CHINA 6
NO.2:REFER ILLUST.
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23070BRING, O, NO.2(FOR FUEL MAIN VALVE)
23070CRING, O, NO.3(FOR FUEL MAIN VALVE)
23220APUMP ASSY, FUEL W/FILTER
*540
*541
*666
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
23283BHOLDER, FUEL PRESSURE REGULATOR
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
MARK=77020-06651
sub77020-06730
sub77020-33591
MARK=77020-33500
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
(L)
(L)
(J)
(J)
77100TANK ASSY, FUEL
(L)
(L)
(J)
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
*541
*666
*540
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
(L)
(L)
(L)
(J)
(J)
(J)
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77284CLAMP, FUEL TUBE
77285KCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512CBRACKET, FUEL TANK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77613BOLT, FUEL TANK BAND SET
(J)
(L)
77641APROTECTOR, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
(L)
(J)
77754BHOSE, CHARCOAL CANISTER OUTLET
(L)
(L)
(J)
(J)
77785HARNESS, FUEL PUMP
*541
*666
*540
8401
9011908D17
main90119-08D17
90119C0522
main90119-C0522
9046022002
main90460-22002
9046040007
main90460-40007
9046050008
main90460-50008
90466C0027
main90466-C0027
90466C0044
main90466-C0044
9046712056
main90467-12056
91626B0614
main91626-B0614
