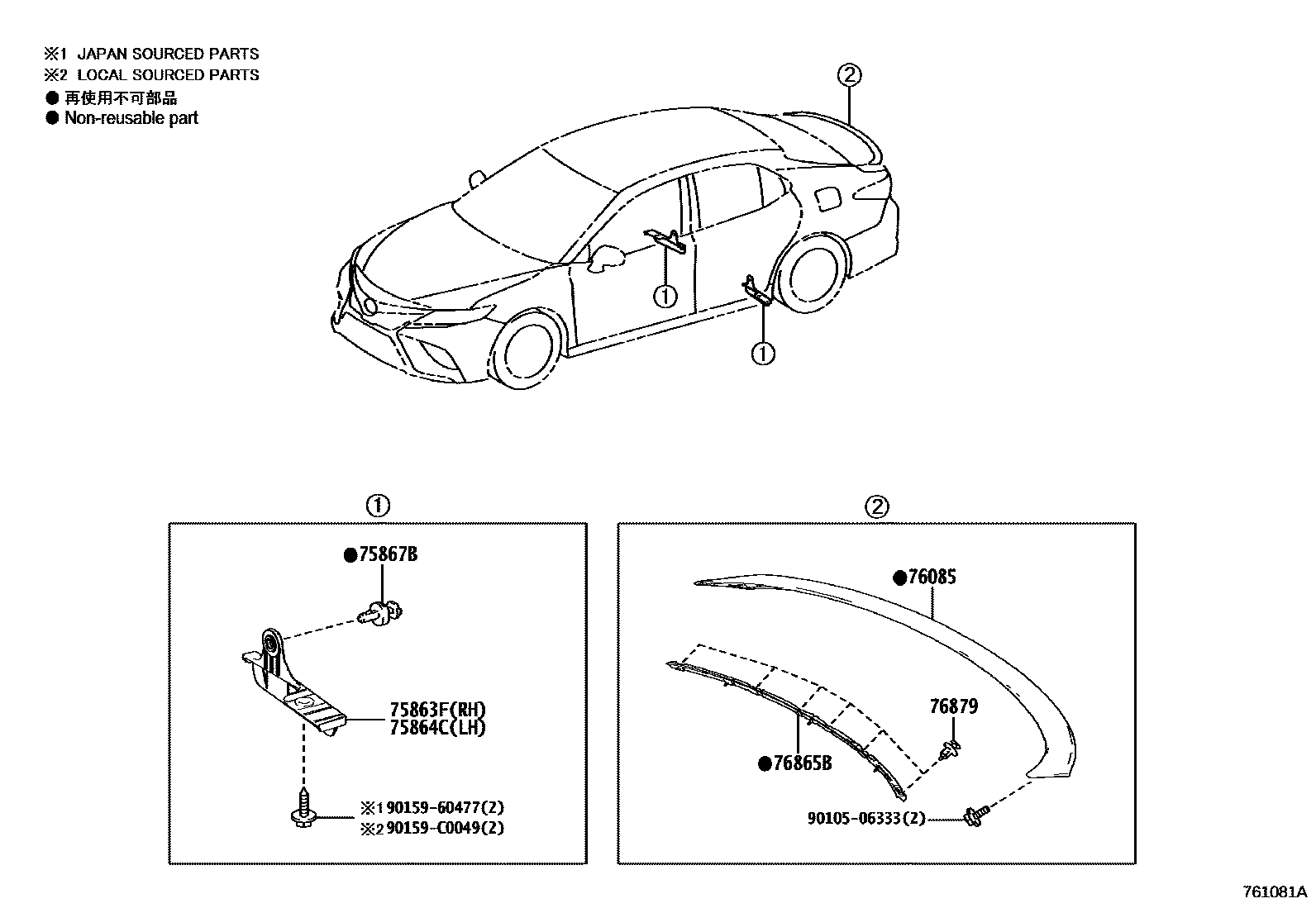

MUDGUARD & SPOILER

75863FCOVER, ROCKER PANEL MOULDING END, REAR RH

main75861-06210iAXVA70,AXVH71,MXVA71201712-202103

75864CCOVER, ROCKER PANEL MOULDING END, REAR LH

main75862-06220iASV71201712-202103

75867BCLIP, ROCKER PANEL MOULDING

main90467-07222iASV71201712-201907

main90467-C0069iAXVA70,AXVH71,MXVA71201908-202103

76085SPOILER SUB-ASSY, REAR

main76085-06160-A0iASV71..S201712-202103

PLATINUM WHITE PEARL MC.,089

main76085-06160-B1iAXVA70,AXVH71,MXVA71..S202103

METAL STREAM ME,1K0

main76085-06160-C0iAXVA70,AXVH71,MXVA71..S202103

BLACK MC.,209 ,2PU ,2SZ

main76085-06160-C0iASV71..S201712-202103

BLACK MC.,209

main76085-06160-D1iAXVA70..S201712-201903

RED M.M.,3R3

main76085-06160-D2iAXVA70,AXVH71,MXVA71..S201903-202103

EMOTIONAL RED 2,3U5

main76085-06160-E0iASV71..S201712-201903

DK. BROWN M.M.,4U3

main76085-06160-E1iAXVA70,AXVH71,MXVA71..S201712-202103

STEEL BLONDE ME.,4X1

main76085-06160-E2iAXVA70,AXVH71,MXVA71..S201903-202103

DARK SHERRY M.M.,4W4

main76085-06160-J0iAXVH71..S201903-202103

DK.BLUE M.M.,8W7

76865BRETAINER, REAR SPOILER

main76865-06030iASV71..S201712-202103

76879CLIP, REAR SPOILER, NO.1

main90467-05170iAXVA70,AXVH71,MXVA71..S201804-202103

(J)

main90467-05170iASV71,AXVA70..S201712-201804

main90467-C0032iAXVA70,AXVH71,MXVA71..S201804-202103

(L)

9010506333

main90105-06333

9015960477

main90159-60477

90159C0049

main90159-C0049

9 parts on this diagram · 1 diagram in section
