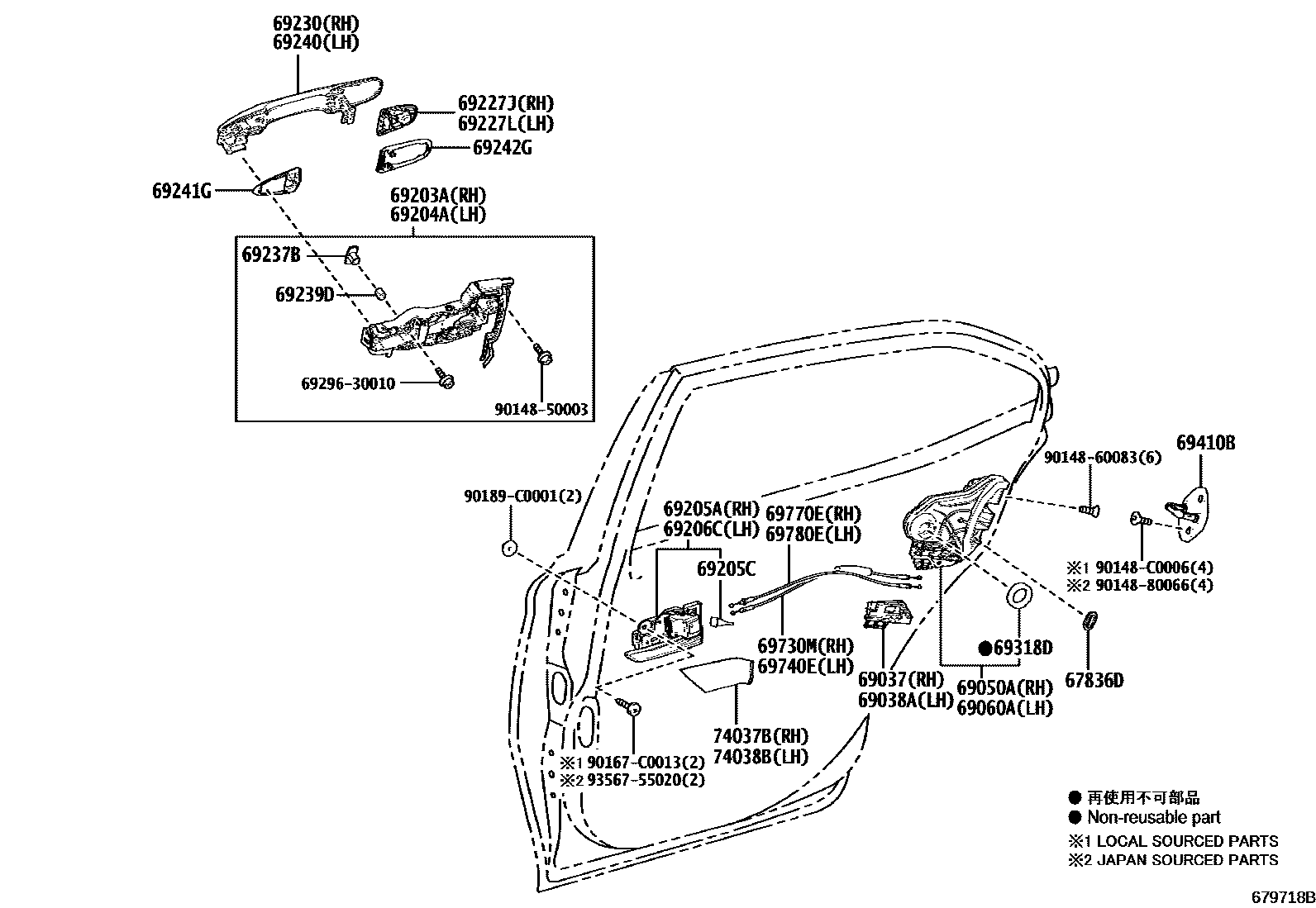

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATINUM WHITE PEARL MC.,089 ,2PU
VALUE PACKAGE,PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089
WITHOUT(CLEARANCE & BACK SONER),PLATINUM WHITE PEARL MC.,089
WITHOUT(CLEARANCE & BACK SONER),METAL STREAM ME,1K0
METAL STREAM ME,1K0
WITHOUT(CLEARANCE & BACK SONER),BLACK MC.,209
BLACK MC.,209
VALUE PACKAGE,BLACK MC.,209
BLACK MC.,209 ,2PU ,2SZ
RED M.M.,3R3
VALUE PACKAGE,RED M.M.,3R3
RED M.M.,2NU ,3R3
EMOTIONAL RED 2,2SZ ,3U5
EMOTIONAL RED 2,3U5
VALUE PACKAGE,EMOTIONAL RED 2,3U5
WITHOUT(CLEARANCE & BACK SONER),EMOTIONAL RED 2,3U5
DK. BROWN M.M.,4U3
VALUE PACKAGE,DK. BROWN M.M.,4U3
VALUE PACKAGE,STEEL BLONDE ME.,4X1
STEEL BLONDE ME.,4X1
WITHOUT(CLEARANCE & BACK SONER),STEEL BLONDE ME.,4X1
VALUE PACKAGE,DARK SHERRY M.M.,4W4
DARK SHERRY M.M.,4W4
DK.BLUE M.M.,8W7
PLATED
69237BNUT, REAR DOOR HANDLE
sub69237-0E010
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
VALUE PACKAGE,PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PU
WITHOUT(CLEARANCE & BACK SONER),PLATINUM WHITE PEARL MC.,089
WITHOUT(CLEARANCE & BACK SONER),METAL STREAM ME,1K0
METAL STREAM ME,1K0
VALUE PACKAGE,BLACK MC.,209
BLACK MC.,209
BLACK MC.,209 ,2PU ,2SZ
WITHOUT(CLEARANCE & BACK SONER),BLACK MC.,209
RED M.M.,3R3
RED M.M.,2NU ,3R3
VALUE PACKAGE,RED M.M.,3R3
EMOTIONAL RED 2,2SZ ,3U5
EMOTIONAL RED 2,3U5
VALUE PACKAGE,EMOTIONAL RED 2,3U5
WITHOUT(CLEARANCE & BACK SONER),EMOTIONAL RED 2,3U5
DK. BROWN M.M.,4U3
VALUE PACKAGE,DK. BROWN M.M.,4U3
STEEL BLONDE ME.,4X1
VALUE PACKAGE,STEEL BLONDE ME.,4X1
WITHOUT(CLEARANCE & BACK SONER),STEEL BLONDE ME.,4X1
VALUE PACKAGE,DARK SHERRY M.M.,4W4
DARK SHERRY M.M.,4W4
DK.BLUE M.M.,8W7
PLATED
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
74037BCOVER SUB-ASSY, REAR DOOR ARMREST, RH
74038BCOVER SUB-ASSY, REAR DOOR ARMREST, LH
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148C0006
main90148-C0006
90167C0013
main90167-C0013
90189C0001
main90189-C0001
9356755020
main93567-55020
34 parts on this diagram · 1 diagram in section
