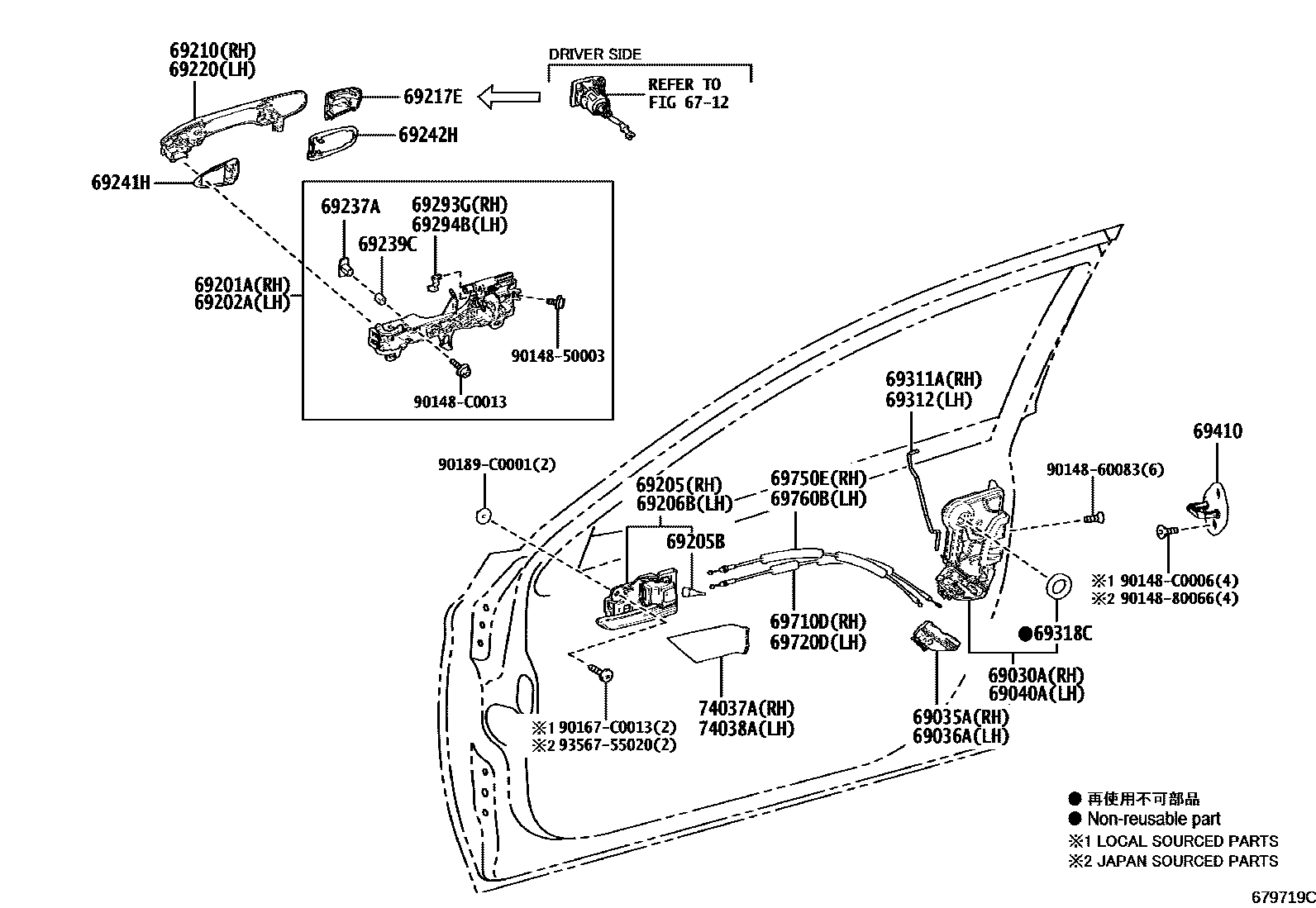

FRONT DOOR LOCK & HANDLE
6712
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATINUM WHITE PEARL MC.,089 ,2PU
VALUE PACKAGE,PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089
WITHOUT(CLEARANCE & BACK SONER),PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
WITHOUT(CLEARANCE & BACK SONER),METAL STREAM ME,1K0
BLACK MC.,209
VALUE PACKAGE,BLACK MC.,209
BLACK MC.,209 ,2PU ,2SZ
WITHOUT(CLEARANCE & BACK SONER),BLACK MC.,209
RED M.M.,3R3
RED M.M.,2NU ,3R3
VALUE PACKAGE,RED M.M.,3R3
EMOTIONAL RED 2,2SZ ,3U5
EMOTIONAL RED 2,3U5
VALUE PACKAGE,EMOTIONAL RED 2,3U5
WITHOUT(CLEARANCE & BACK SONER),EMOTIONAL RED 2,3U5
DK. BROWN M.M.,4U3
VALUE PACKAGE,DK. BROWN M.M.,4U3
STEEL BLONDE ME.,4X1
VALUE PACKAGE,STEEL BLONDE ME.,4X1
WITHOUT(CLEARANCE & BACK SONER),STEEL BLONDE ME.,4X1
VALUE PACKAGE,DARK SHERRY M.M.,4W4
DARK SHERRY M.M.,4W4
DK.BLUE M.M.,8W7
PLATED
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089 ,2PU
WITHOUT(CLEARANCE & BACK SONER),PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
WITHOUT(CLEARANCE & BACK SONER),METAL STREAM ME,1K0
BLACK MC.,209
WITHOUT(CLEARANCE & BACK SONER),BLACK MC.,209
BLACK MC.,209 ,2PU ,2SZ
RED M.M.,2NU ,3R3
EMOTIONAL RED 2,2SZ ,3U5
WITHOUT(CLEARANCE & BACK SONER),EMOTIONAL RED 2,3U5
DK. BROWN M.M.,4U3
WITHOUT(CLEARANCE & BACK SONER),STEEL BLONDE ME.,4X1
STEEL BLONDE ME.,4X1
DARK SHERRY M.M.,4W4
DK.BLUE M.M.,8W7
PLATED
PLATINUM WHITE PEARL MC.,089
VALUE PACKAGE,PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
VALUE PACKAGE,BLACK MC.,209
BLACK MC.,209
VALUE PACKAGE,RED M.M.,3R3
RED M.M.,3R3
VALUE PACKAGE,EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,3U5
VALUE PACKAGE,DK. BROWN M.M.,4U3
DK. BROWN M.M.,4U3
STEEL BLONDE ME.,4X1
VALUE PACKAGE,STEEL BLONDE ME.,4X1
VALUE PACKAGE,DARK SHERRY M.M.,4W4
DARK SHERRY M.M.,4W4
69237ANUT, FRONT DOOR HANDLE
sub69237-0E010
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
74037ACOVER SUB-ASSY, FRONT DOOR ARMREST, RH
74038ACOVER SUB-ASSY, FRONT DOOR ARMREST, LH
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148C0006
main90148-C0006
90148C0013
main90148-C0013
90167C0013
main90167-C0013
90189C0001
main90189-C0001
9356755020
main93567-55020
37 parts on this diagram · 1 diagram in section
