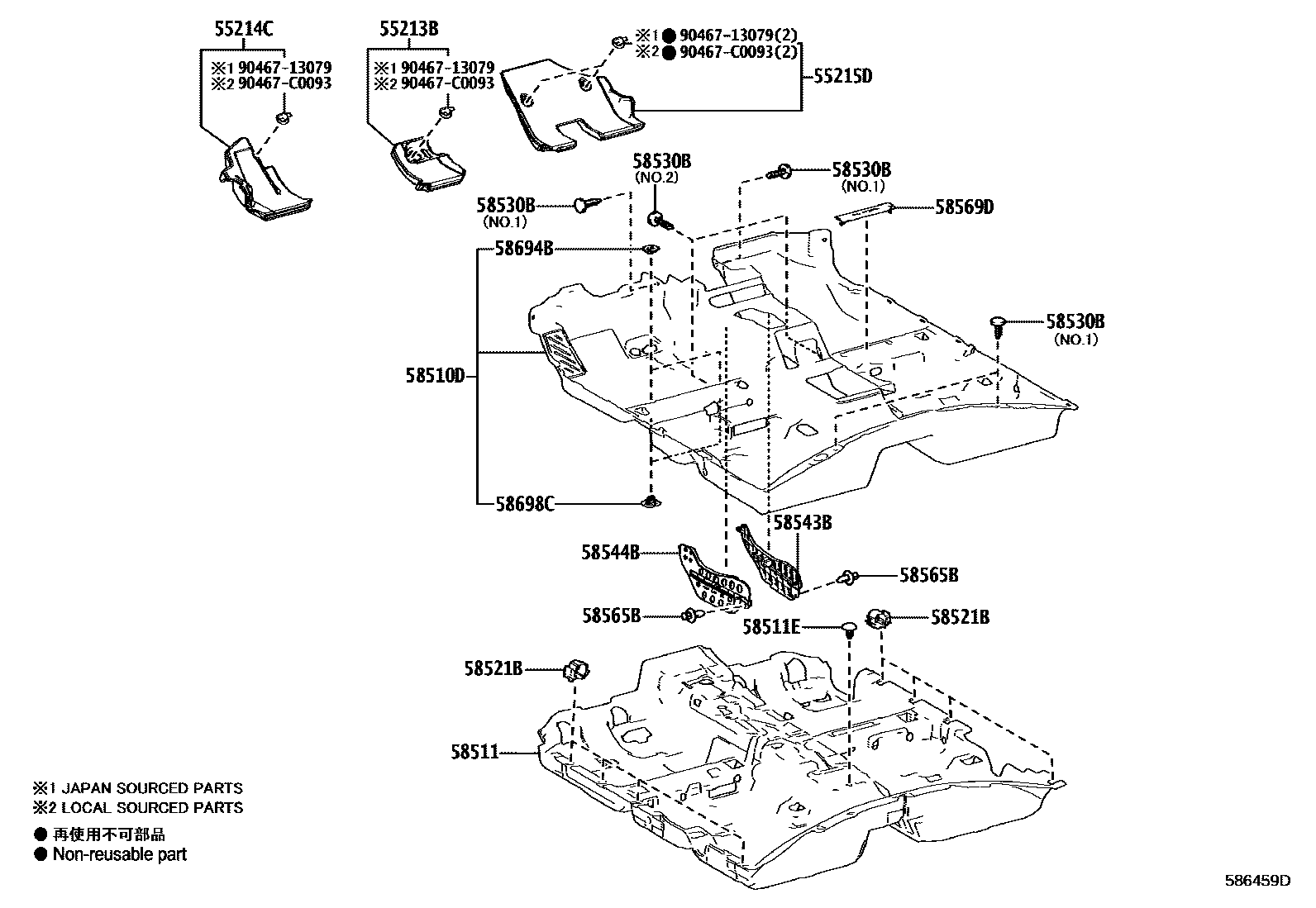

MAT & CARPET

0001 1 0002 1 0003 1TEXTILE FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-06120iASV71,AXVA70,AXVH71201712-201810

main55213-06121iAXVA70,AXVH71,MXVA71201810-202103

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-06160iAXVA70,AXVH71,MXVA71201712-202103

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-06050iAXVA70,AXVH71,MXVA71201712-202103

58510DCARPET ASSY, FLOOR, FRONT

main58510-06740-B2iAXVA70,MXVA71..G201712-202103

NEUTRAL WARM GRAY,TRIM4#

main58510-06740-B2iAXVA70,MXVA71..G201712-202103

NEUTRAL WARM GRAY,TRIM40

main58510-06740-C1iAXVA70,MXVA71..G201712-201902

BLACK,TRIM2#

main58510-06740-C1iAXVA70,MXVA71..G201712-202103

BLACK,TRIM2#,3#

main58510-06740-C1iMXVA71..E201712-202103

BLACK,TRIM2#,41

main58510-06750-B2iAXVH71..E201712-202103

NEUTRAL WARM GRAY,TRIM40

main58510-06750-B2iAXVH71..G201712-202103

NEUTRAL WARM GRAY,TRIM4#

main58510-06750-C1iAXVH71..E201903-202103

BLACK,TRIM2#,3#

main58510-06750-C1iAXVH71..E201712-202103

BLACK,TRIM2#,41

main58510-06750-C1iAXVH71..E201712-202103

BLACK,TRIM2#

58511MAT, FLOOR, FRONT

main58511-06140iASV71,AXVA70201712-201810

main58511-06141iASV71201810-202103

main58511-06150iAXVH71201712-201810

main58511-06151iAXVH71201810-202103

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iAXVA70,AXVH71,MXVA71201712-202103

BLACK

sub90467-07042

sub90467-06175

58521BHOOK, FLOOR CARPET

main58521-06180iAXVA70,AXVH71,MXVA71201712-202103

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iASV71;AXVA70..G201712-201803

BLACK,TRIM2#,NO.1 & NO.2:REF ILL.

sub90467-07049

main90467-07049-23iASV71;AXVA70..G201712-201803

BLACK,TRIM2#,3#,NO.1 & NO.2:REF ILL.

sub90467-07049

main90467-07049-23iAXVH71201803-201805

BLACK,TRIM2#,NO.1:REFER ILLUST.

sub90467-07049

main90467-07049-23iAXVH71201803-201805

BLACK,TRIM2#,3#,NO.1:REFER ILLUST.

sub90467-07049

main90467-07161-C0iASV71,AXVA70,AXVH71201803-201805

BLACK,NO.2:REFER ILLUST.

sub90467-07161

main90467-07161-C1iAXVH71201805-202103

BLACK,NO.1 & NO.2:REF ILL.

sub90467-07161

58543BBRACKET, FLOOR CARPET, RH

main58543-06160iASV71201712-202103

58544BBRACKET, FLOOR CARPET, LH

main58544-06170iASV71201712-202103

58565BCLIP

main90467-C0013-C1iAXVA70,AXVH71,MXVA71201712-202103

BLACK

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-06080-B0iMXVA71..E201712-202103

NEUTRAL WARM GRAY,TRIM4#

main58569-06080-B0iMXVA71..E201712-202103

NEUTRAL WARM GRAY,TRIM40

main58569-06080-C0iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,40,41

main58569-06080-C0iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,40

main58569-06080-C0iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

main58569-06080-C0iMXVA71..G201903-202103

BLACK,TRIM2#,41

main58569-06080-C0iAXVA70,AXVH71,MXVA71..S201712-201902

BLACK,TRIM2#

58694BPLATE, MAT SET, UPPER

main58694-78010iASV71201712-202103

58698CPLATE, MAT SET, LOWER

main58698-78010iASV71201712-202103

9046713079

main90467-13079

90467C0093

main90467-C0093

16 parts on this diagram · 3 diagrams in section
