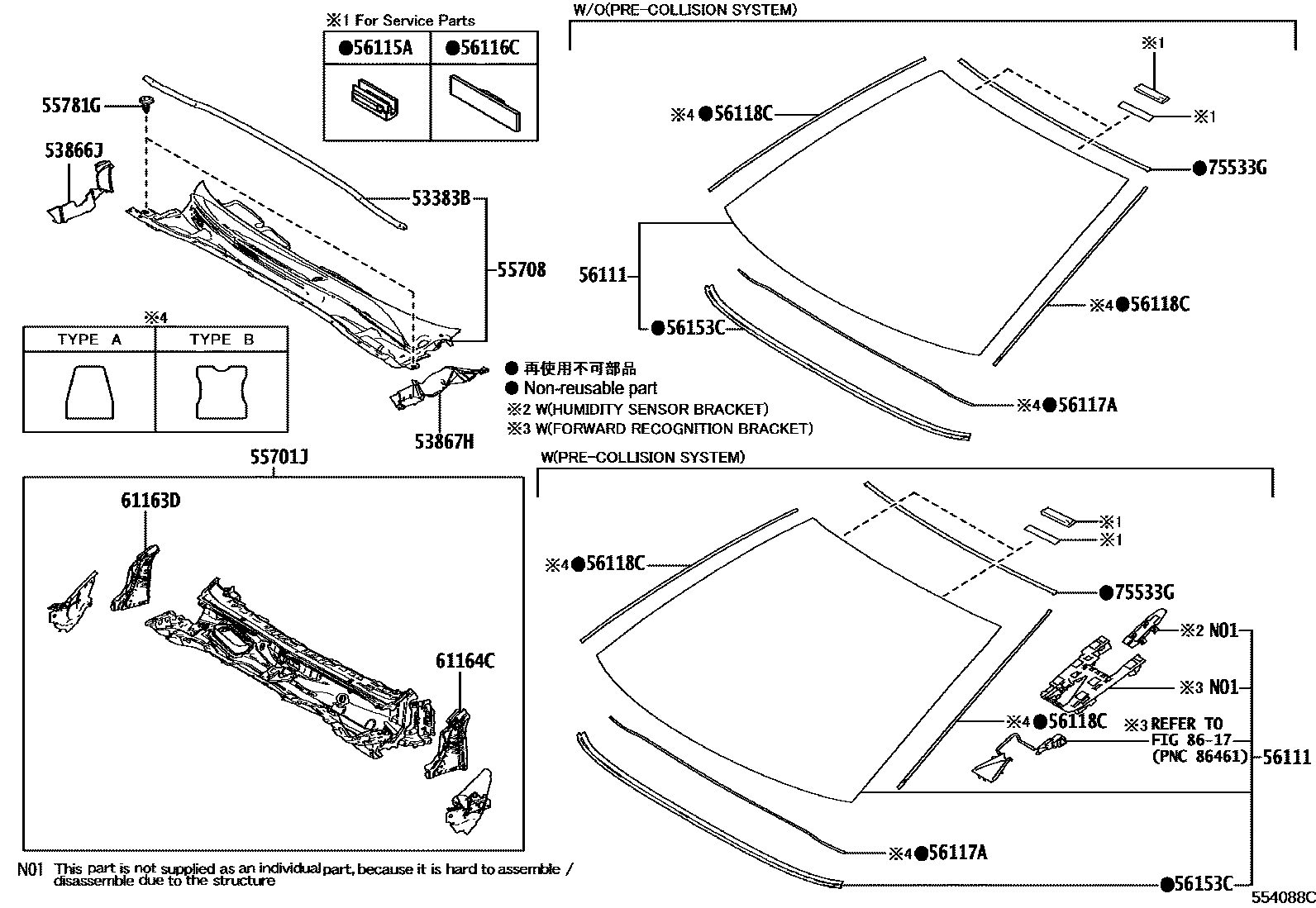

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
(J)
(L)
56111GLASS, WINDSHIELD
VALUE PACKAGE
WITHOUT(CLEARANCE & BACK SONER)
sub56101-0X927
sub56101-0X928
sub56101-0X919
sub56101-0X920
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=1298,WITHOUT(CLEARANCE & BACK SONER),TYPE A:REFER ILLUST.
L=1298,TYPE A:REFER ILLUST.
L=1298
L=1298,VALUE PACKAGE
L=1298,TYPE B:REFER ILLUST.
L=1298,WITHOUT(CLEARANCE & BACK SONER),TYPE B:REFER ILLUST.
56118CRETAINER, WINDSHIELD GLASS, NO.2
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
56153CMOULDING, FRONT WINDOW, INNER CENTER
61163DPILLAR, FRONT BODY, LOWER INNER RH
61164CPILLAR, FRONT BODY, LOWER INNER LH
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
16 parts on this diagram · 1 diagram in section
