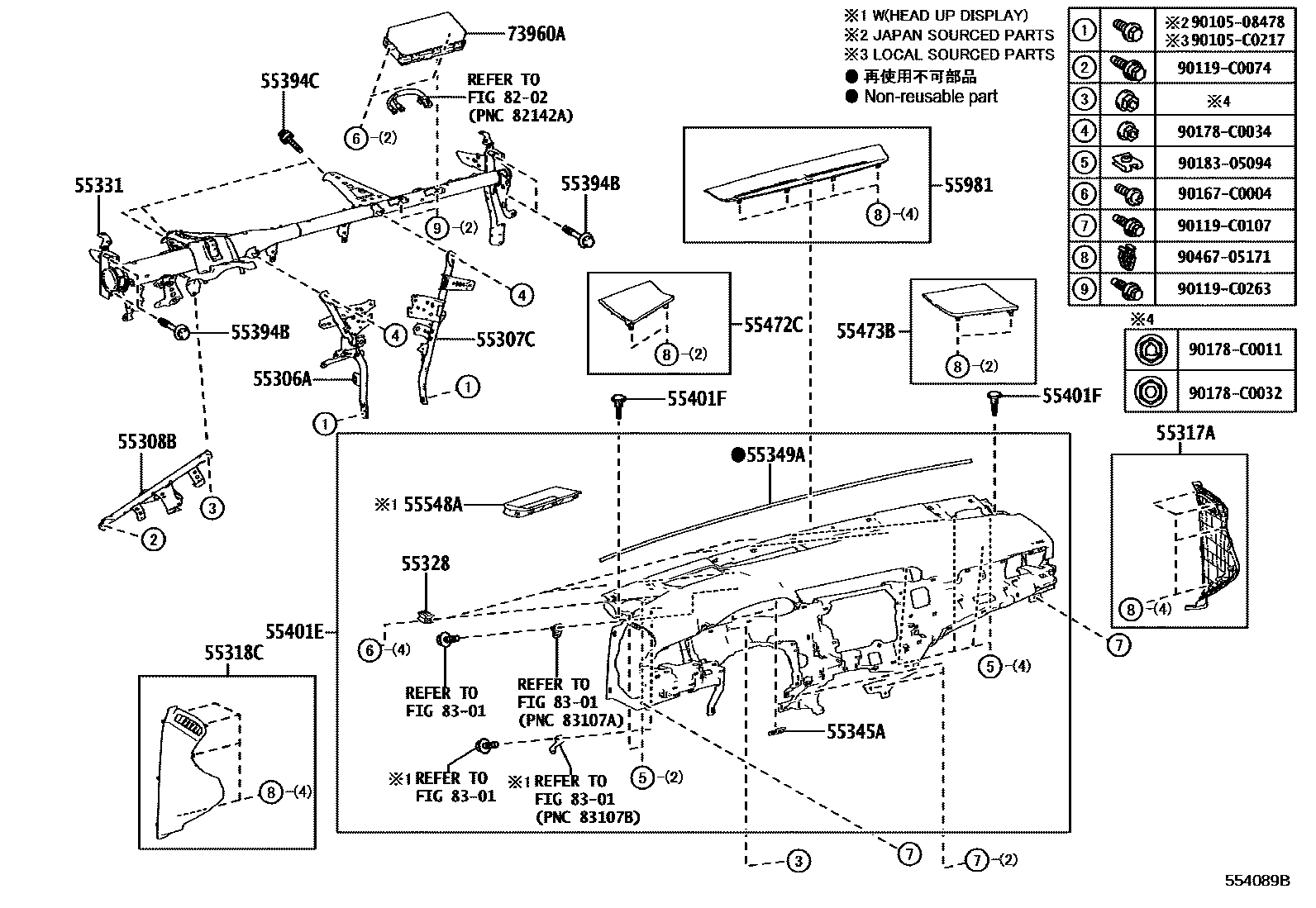

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-06170iASV71201712-202103

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-06120iASV71201712-202103

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-06080iASV71201712-202103

55317APANEL, INSTRUMENT SIDE, RH

main55317-06340-C0iASV71..G201712-202103

BLACK,TRIM2#,4#

main55317-06340-C0iASV71..G201712-202103

BLACK,TRIM4#

main55317-06340-C0iASV71..G201712-201902

BLACK,TRIM2#

main55317-06340-C0iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-06260-C0iASV71..S201712-202103

BLACK,TRIM2#,4#

main55318-06260-C0iASV71..G201712-202103

BLACK,TRIM4#

main55318-06260-C0iASV71..G201712-201902

BLACK,TRIM2#

main55318-06260-C0iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-0E100iAXVA70,AXVH71,MXVA71201712-202103

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-06400iAXVA70,AXVH71,MXVA71202103

main55330-06470iAXVA70,AXVH71,MXVA71201712-202103

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iAXVA70,AXVH71,MXVA71¥90201712-202103

55349ACUSHION, INSTRUMENT PANEL

main55349-06230iAXVA70,AXVH71,MXVA71201712-202103

55394BBOLT, INSTRUMENT PANEL

main90105-08473iAXVA70,AXVH71,MXVA71¥100201712-202103

(J)

main90105-C0318iASV71201712-202103

(L)

55394CBOLT, INSTRUMENT PANEL

main90105-08526iAXVA70,AXVH71,MXVA71¥100202103

(J),TYPE B:REF ILL.

main90105-C0407iAXVA70,AXVH71,MXVA71202103

(L),TYPE B:REF ILL.

main90119-08D16iASV71¥100201712-202103

(J)

main90119-08D16iAXVA70,AXVH71,MXVA71¥100202103

(J),TYPE A:REF ILL.

main90119-C0223iASV71201712-202103

(L)

main90119-C0223iAXVA70,AXVH71,MXVA71202103

(L),TYPE A:REF ILL.

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-06290-B0iAXVH71,MXVA71..E201712-201912

NEUTRAL WARM GRAY,TRIM4#

sub55401-06291

main55401-06290-B0iASV71..E201712-201902

VALUE PACKAGE,NEUTRAL WARM GRAY,TRIM4#

sub55401-06291

main55401-06291-B0iAXVH71,MXVA71..G202001-202103

NEUTRAL WARM GRAY,TRIM4#

main55401-06291-B0iAXVH71,MXVA71..E202001-202103

VALUE PACKAGE,NEUTRAL WARM GRAY,TRIM40

main55401-06291-B0iAXVH71,MXVA71..E202103

WITHOUT(CLEARANCE & BACK SONER),NEUTRAL WARM GRAY,TRIM40

main55401-06300-B1iASV71..G201712-201902

NEUTRAL WARM GRAY,TRIM4#

sub55401-06301

main55401-06300-B1iAXVA70,AXVH71,MXVA71..G201712-201912

NEUTRAL WARM GRAY,TRIM40

sub55401-06301

main55401-06300-C1iAXVA70,AXVH71,MXVA71..G201712-201912

BLACK,TRIM2#,41

sub55401-06301

main55401-06300-C1iAXVA70,AXVH71,MXVA71..S201712-201912

BLACK,TRIM2#,3#

sub55401-06301

main55401-06300-C1iASV71..G,S201712-201902

BLACK,TRIM2#

sub55401-06301

main55401-06301-B1iAXVA70,AXVH71,MXVA71..G202001-202103

NEUTRAL WARM GRAY,TRIM40

main55401-06301-C1iAXVA70,AXVH71,MXVA71..S202001-202103

SOFT BLACK,TRIM2#,41

main55401-06301-C1iAXVA70,AXVH71,MXVA71..S202001-202103

SOFT BLACK,TRIM2#,3#

55401FCLIP(FOR SAFETY PAD)

main52161-02040iAXVA70,AXVH71,MXVA71201712-202103

(L)

main52161-16010iAXVA70,AXVH71,MXVA71¥120201712-202103

(J)

sub52161-0K040¥120

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-06150-B0iASV71201712-202103

NEUTRAL WARM GRAY,TRIM4#

main55472-06150-B0iAXVA70,AXVH71,MXVA71..G201712-202103

NEUTRAL WARM GRAY,TRIM40

main55472-06150-C0iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

main55472-06150-C0iASV71201712-202103

BLACK,TRIM2#

main55472-06150-C0iAXVH71..E201712-202103

BLACK,TRIM2#,41

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-06150-B0iAXVA70,AXVH71,MXVA71..G201712-202103

NEUTRAL WARM GRAY,TRIM4#

main55473-06150-B0iAXVA70,AXVH71,MXVA71..G201712-202103

NEUTRAL WARM GRAY,TRIM40

main55473-06150-C0iAXVA70,AXVH71,MXVA71..G201712-202103

BLACK,TRIM2#

main55473-06150-C0iAXVA70,AXVH71,MXVA71..G201712-202103

BLACK,TRIM2#,3#

main55473-06150-C0iAXVA70,AXVH71,MXVA71..G201712-202103

BLACK,TRIM2#,41

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-06100-B0iASV71..G201712-201902

NEUTRAL WARM GRAY,TRIM4#

main55548-06100-B0iASV71..G201712-202103

NEUTRAL WARM GRAY,TRIM40

main55548-06100-C0iAXVH71,MXVA71..G201712-202103

BLACK,TRIM2#,41

main55548-06100-C0iASV71..G201712-201902

BLACK,TRIM2#,40

main55548-06100-C0iASV71..G201712-201902

BLACK,TRIM2#

main55548-06100-C0iAXVA70..G201712-202001

BLACK,TRIM2#,40,41

main55548-06100-C0iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-06250-B0iAXVH71,MXVA71..E201712-202103

NEUTRAL WARM GRAY,TRIM40

main55981-06250-B0iAXVH71,MXVA71..E201712-202103

NEUTRAL WARM GRAY,TRIM4#

main55981-06250-C0iAXVH71,MXVA71..E201712-202103

BLACK,TRIM2#,3#

main55981-06250-C0iAXVH71,MXVA71..E201712-202103

BLACK,TRIM2#

main55981-06250-C0iAXVH71,MXVA71..E201712-202103

BLACK,TRIM2#,41

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06240iASV71201712-202103

8202

8301

9010508478

main90105-08478¥80

90105C0217

main90105-C0217

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0263

main90119-C0263

90167C0004

main90167-C0004

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

31 parts on this diagram · 8 diagrams in section
