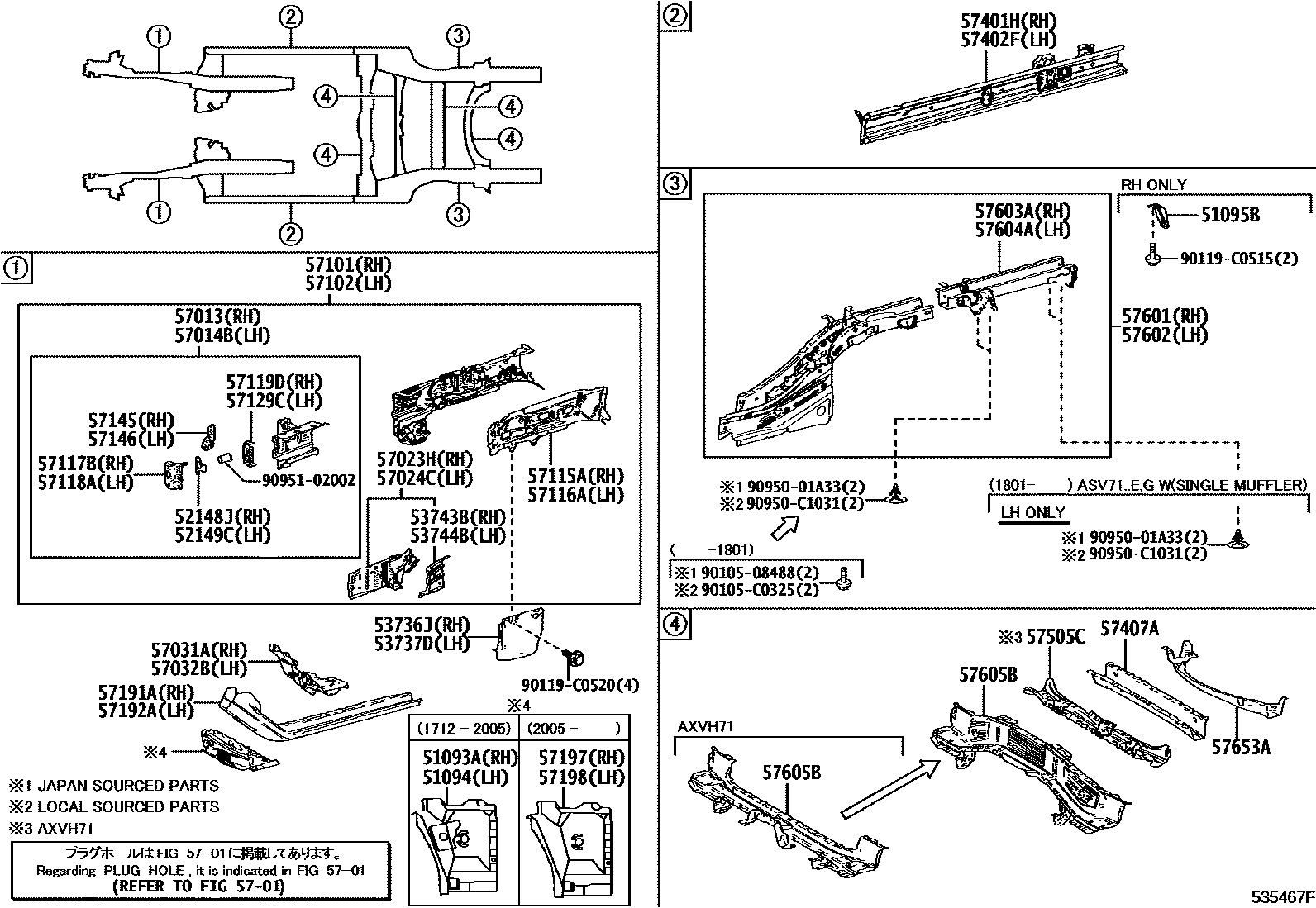

FLOOR SIDE MEMBER

51093AHOOK SUB-ASSY, TRANSPORT, FRONT RH

main51093-06020iAXVA70,AXVH71,MXVA71201712-202005

sub51093-33010¥3,150

51094HOOK SUB-ASSY, TRANSPORT, FRONT LH

main51094-06020iASV71201712-202005

sub51094-33010¥3,150

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-06030iASV71201712-202103

52148JSTOPPER, FRONT BUMPER REINFORCEMENT, RH

main52148-06090iASV71201712-202103

52149CSTOPPER, FRONT BUMPER REINFORCEMENT, LH

main52149-06020iASV71201712-202103

53736JSEAL, FENDER APRON

main53736-06100iASV71,AXVA70,AXVH71,MXVA71201712-202103

53737DSEAL, FRONT FENDER APRON, LH

main53737-06140iASV71,AXVA70,AXVH71,MXVA71201712-202103

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-06020iASV71201712-202103

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-06020iASV71201712-202103

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-06010iASV71201712-202402

sub57013-06011

main57013-06011iAXVA70,AXVH71,MXVA71202403

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-06010iASV71201712-202402

sub57014-06011

main57014-06011iAXVA70,AXVH71,MXVA71202403

57023HBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-06020iASV71201712-202103

57024CBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-06020iASV71201712-202103

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-06050iASV71201712-202103

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-06050iASV71201712-202103

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-06901iASV71201712-202103

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-06901iASV71201712-202103

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-06900iASV71201712-202103

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-06900iASV71201712-202103

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-06100iASV71201712-202103

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-06100iASV71201712-202103

57119DPLATE, FRONT SIDE MEMBER, FRONT RH

main57119-06040iAXVA70,AXVH71,MXVA71201712-202103

57129CPLATE, FRONT SIDE MEMBER, FRONT LH

main57129-06010iASV71201712-202103

57145PLATE, FRONT SIDE MEMBER, CENTER RH

main57145-06090iASV71201712-202402

sub57145-06091

main57145-06091iAXVA70,AXVH71,MXVA71202403

57146PLATE, FRONT SIDE MEMBER, CENTER LH

main57146-06070iASV71201712-202402

sub57146-06071

main57146-06071iAXVA70,AXVH71,MXVA71202403

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-06070iASV71201712-202212

(L)

main57191-06070iAXVA70,AXVH71,MXVA71202212

main57191-33020iAXVA70,AXVH71,MXVA71¥9,400201712-202212

(J)

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-06060iAXVA70,AXVH71,MXVA71201712-202212

(L)

main57192-06060iAXVA70,AXVH71,MXVA71202212

main57192-33020iAXVA70,AXVH71,MXVA71¥9,400201712-202212

(J)

57197BOX, TORQUE, FRONT RH

main57197-06091iAXVA70,AXVH71,MXVA71202005-202103

57198BOX, TORQUE, FRONT LH

main57198-06091iAXVA70,AXVH71,MXVA71202005-202103

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-06290iAXVA70,AXVH71,MXVA71201712-202103

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-06290iAXVA70,AXVH71,MXVA71201712-202103

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-06040iASV71,AXVA70,AXVH71,MXVA71201712-202101

sub57407-06041

main57407-06041iAXVA70,AXVH71,MXVA71202101-202305

sub57407-06042

main57407-06042iAXVA70,AXVH71,MXVA71202306

57505CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-06020iAXVH71201712-202103

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06440iASV71201712-202103

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06270iAXVA70,AXVH71,MXVA71201712-202103

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-06030iAXVA70,AXVH71,MXVA71201712-202103

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-06060iASV71201712-202103

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06220iAXVA70,MXVA71201712-202103

main57605-06230iAXVH71201712-202103

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-06120iAXVA70,AXVH71,MXVA71201712-202103

9010508488

main90105-08488¥80

90105C0325

main90105-C0325

90119C0515

main90119-C0515

90119C0520

main90119-C0520

9095001A33

main90950-01A33¥100

90950C1031

main90950-C1031

9095102002

main90951-02002¥940

47 parts on this diagram · 1 diagram in section
