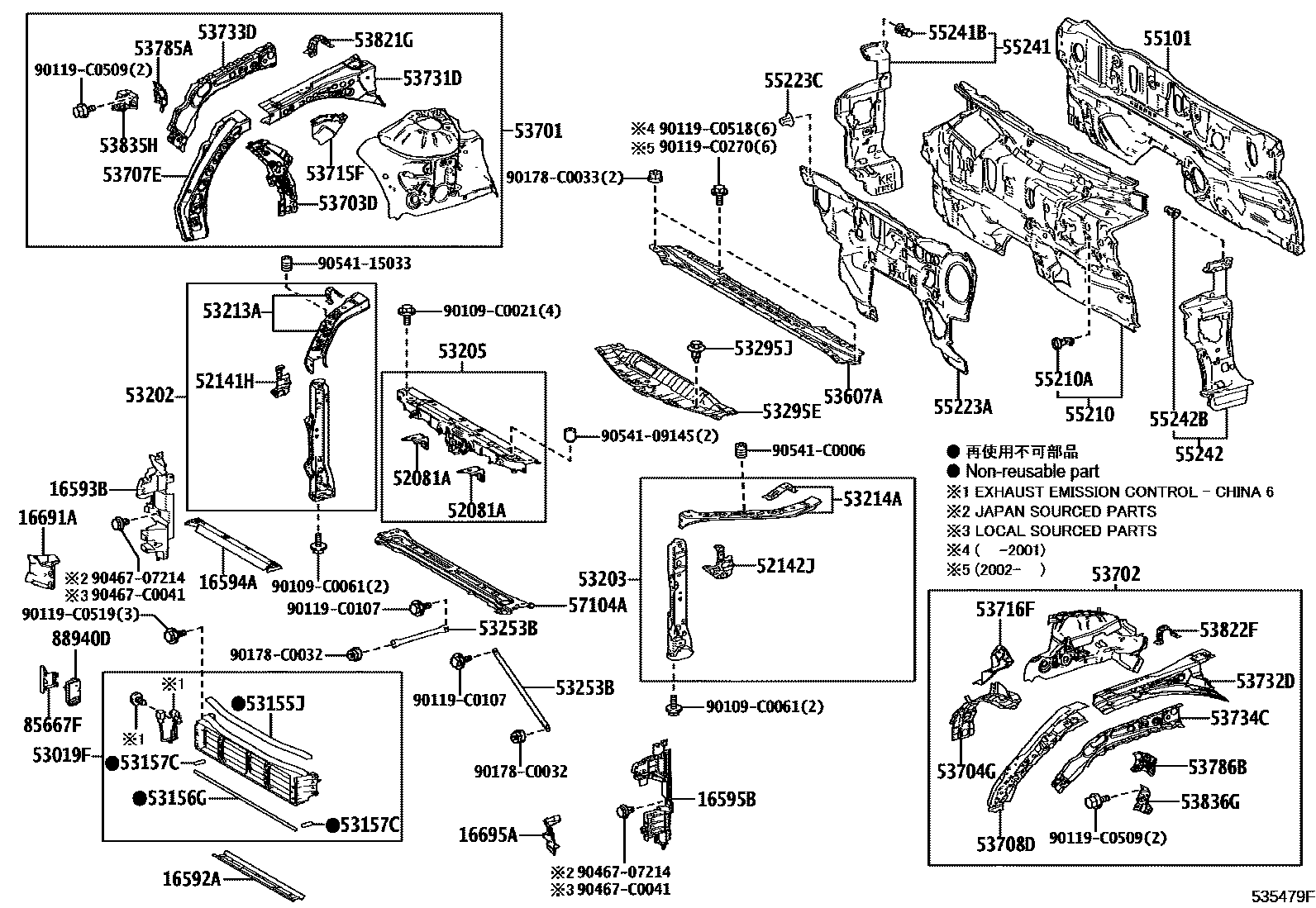

FRONT FENDER APRON & DASH PANEL

0001 1 0003 1 0004 1

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0020iA25#,M20CFKS..AXVA70,AXVH71,MXVA71201712-202103

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F0020iA25BFXS..AXVH71..E,G201712-202103

main16593-F0090iA25AFKS,M20CFKS..AXVA70,MXVA71..E,G201712-202103

main16593-F0100iA25AFKS,M20CFKS..AXVA70,MXVA71..S201712-202103

main16593-F0150i6ARFSE..ASV71..S201712-202103

main16593-F0390iA25BFXS..AXVH71..E,G202103

main16593-F0400iA25AFKS,M20CFKS..AXVA70,MXVA71..E,G202103

main16593-F0410iA25BFXS..AXVH71..S202103

main16593-F0420iA25AFKS,M20CFKS..AXVA70,MXVA71..S202103

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0020iA25#,M20CFKS..AXVA70,AXVH71,MXVA71201712-202103

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0020iA25BFXS..AXVH71..E,G201712-202103

main16595-F0090iA25AFKS,M20CFKS..AXVA70,MXVA71..E,G201712-202103

main16595-F0100iA25AFKS,M20CFKS..AXVA70,MXVA71..S201712-202103

main16595-F0150i6ARFSE..ASV71..S201712-202103

main16595-F0410iA25BFXS..AXVH71..E,G202103

main16595-F0420iA25AFKS,M20CFKS..AXVA70,MXVA71..E,G202103

main16595-F0430iA25BFXS..AXVH71..S202103

main16595-F0440iA25AFKS,M20CFKS..AXVA70,MXVA71..S202103

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-F0050i6ARFSE..ASV71..E,G201712-202103

main16691-F0060i6ARFSE..ASV71..S201712-202103

main16691-F0160iA25#,M20CFKS..AXVA70,AXVH71,MXVA71..E,G202103

main16691-F0170iA25#,M20CFKS..AXVA70,AXVH71,MXVA71..S202103

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-F0050i6ARFSE..ASV71..E,G201712-202103

main16695-F0060i6ARFSE..ASV71..S201712-202103

main16695-F0180iA25#,M20CFKS..AXVA70,AXVH71,MXVA71..E,G202103

main16695-F0190iA25#,M20CFKS..AXVA70,AXVH71,MXVA71..S202103

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52081-06020iASV71201712-202103

52141HARM, FRONT BUMPER, UPPER RH

main52141-06180iASV71201712-202103

52142JARM, FRONT BUMPER, UPPER LH

main52142-06170iASV71201712-202103

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-06030iASV71,AXVH71201712-201812

sub53019-06031

main53019-06031iASV71201901-202001

main53019-06051iAXVH71202001-202103

main53019-06060iAXVH71202103

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-06050iASV71201712-202103

main53155-06140iAXVH71202103

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-06040iASV71201712-202103

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-06060iASV71201712-202103

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-06900iASV71201712-202103

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-06900iASV71201712-202103

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-06902iASV71201712-202103

53213ASUPPORT, RADIATOR, UPPER RH

main53213-06901iAXVA70,AXVH71,MXVA71201712-202103

53214ASUPPORT, RADIATOR, UPPER LH

main53214-06901iAXVA70,AXVH71,MXVA71201712-202103

53253BBRACKET, RADIATOR MOUNTING, UPPER

main53253-06030iASV71201712-202103

53295ESEAL, COOL AIR INTAKE DUCT

main53295-06200iASV71201712-202103

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-07217iAXVA70,AXVH71,MXVA71201712-202006

main90467-07217iAXVA70,AXVH71,MXVA71202006-202103

(J)

main90467-C0051iAXVA70,AXVH71,MXVA71202006-202103

(L)

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-06030iAXVA70,AXVH71,MXVA71201712-202103

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-06270iASV71201712-202103

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-06250iASV71201712-202310

main53702-06320iAXVH71202310

53703DAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53703-06160iASV71201712-202103

53704GAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53704-06170iASV71201712-202103

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-06070iASV71201712-202103

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-06020iASV71201712-202103

53715FAPRON, FENDER SIDE, RH

main53715-06020iASV71201712-202103

53716FAPRON, FENDER SIDE, LH

main53716-06020iASV71201712-202103

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-06200iASV71201712-202103

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-06190iASV71201712-202103

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-06220iASV71201712-202103

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-06220iASV71201712-202103

53785AGUSSET, FRONT FENDER APRON, UPPER RH

main53785-06020iASV71201712-202103

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-06020iASV71201712-202103

53821GBRACKET, FRONT FENDER, REAR RH

main53821-06150iASV71201712-202103

53822FBRACKET, FRONT FENDER, REAR LH

main53822-06140iASV71201712-202103

53835HBRACE, FRONT FENDER TO EXTENSION, RH

main53835-06140iASV71201712-202103

53836GBRACE, FRONT FENDER TO EXTENSION, LH

main53836-06150iASV71201712-202103

55101PANEL SUB-ASSY, DASH

main55101-06560iASV71201712-202103

55210INSULATOR ASSY, DASH PANEL

main55210-06430iASV71201712-202103

55210ACLIP

main90467-11122iASV71201712-202306

main90467-11122iAXVA70,AXVH71,MXVA71202306

(J)

main90467-C0094iAXVA70,AXVH71,MXVA71202306

(L)

55223AINSULATOR, DASH PANEL, OUTER

main55223-06510iASV71201712-202103

55223CCLIP

main90467-06197iASV71201712-202108

main90467-06197iAXVA70,AXVH71,MXVA71202108

(J)

main90467-C0080iAXVA70,AXVH71,MXVA71202108

(L)

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-06050iASV71201712-202103

55241BCLIP, FRONT PANEL SIDE SILENCER

main90467-13079iASV71201712-202306

main90467-13079iAXVA70,AXVH71,MXVA71202306

(J)

main90467-C0093iAXVA70,AXVH71,MXVA71202306

(L)

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-06060iASV71201712-202103

55242BCLIP, FRONT PANEL SIDE SILENCER

main90467-13079iASV71201712-202306

main90467-13079iAXVA70,AXVH71,MXVA71202306

(J)

main90467-C0093iAXVA70,AXVH71,MXVA71202306

(L)

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-06070iASV71201712-202103

85667FCOVER, MOTOR

main85667-06030iASV71201712-202001

main85667-06040iAXVH71202001-202103

88940DACTUATOR ASSY, SWING GRILLE

main88940-06020iAXVH71201712-202001

main88940-06030iASV71201712-201902

sub88940-33031

main88940-06040iAXVH71202001-202103

90109C0021

main90109-C0021

90109C0061

main90109-C0061

90119C0107

main90119-C0107

90119C0270

main90119-C0270

90119C0509

main90119-C0509

90119C0518

main90119-C0518

90119C0519

main90119-C0519

90178C0032

main90178-C0032

90178C0033

main90178-C0033

9046707214

main90467-07214

90467C0041

main90467-C0041

9054109145

main90541-09145

9054115033

main90541-15033

90541C0006

main90541-C0006
