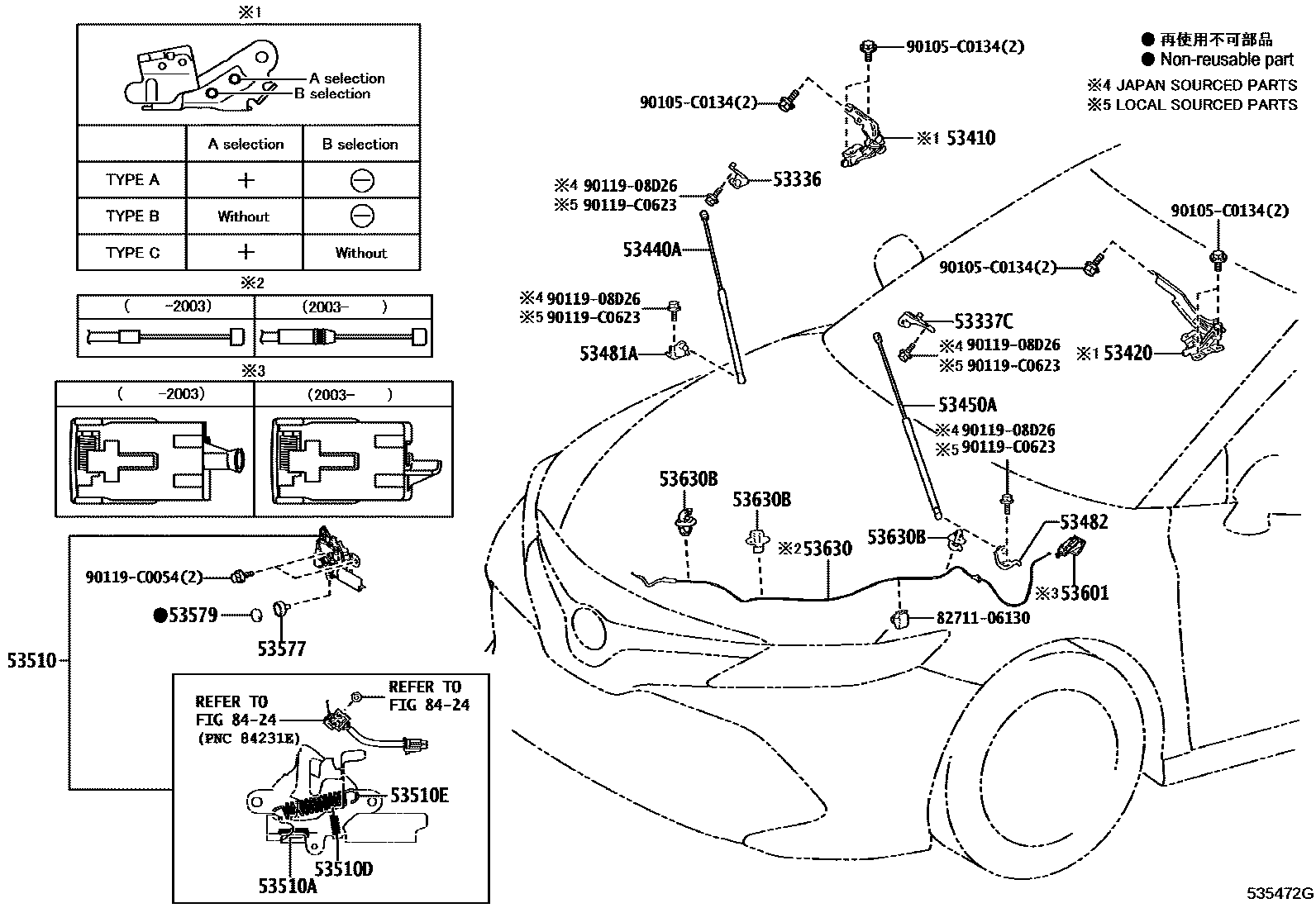

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-06130iAXVA70,AXVH71,MXVA71201712-202103

53337CBRACKET, HOOD STAY, LH

main53337-06120iAXVA70,AXVH71,MXVA71201712-202103

53410HINGE ASSY, HOOD, RH

main53410-06430iASV71201712-202103

TYPE A:REFER ILLUST.

main53410-06440iAXVA70,AXVH71,MXVA71201712-202103

TYPE B:REFER ILLUST.

main53410-06450iAXVA70,AXVH71,MXVA71201712-202103

TYPE C:REFER ILLUST.

53420HINGE ASSY, HOOD, LH

main53420-06430iAXVA70,AXVH71,MXVA71201712-202103

TYPE A:REFER ILLUST.

main53420-06440iAXVA70,AXVH71,MXVA71201712-202103

TYPE B:REFER ILLUST.

main53420-06450iASV71201712-202103

TYPE C:REFER ILLUST.

53440ASUPPORT ASSY, HOOD, RH

main53440-06190iAXVA70,AXVH71,MXVA71201712-202103

53450ASUPPORT ASSY, HOOD, LH

main53450-06160iASV71201712-202103

53481ABRACKET, HOOD SUPPORT, RH

main53481-06190iASV71201712-202103

53482BRACKET, HOOD SUPPORT, LH

main53482-06170iASV71201712-202103

53510LOCK ASSY, HOOD

main53510-06340iASV71201712-202103

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iASV71201712-202103

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iASV71201712-202103

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iAXVA70,AXVH71,MXVA71201712-202103

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-33010iAXVA70,AXVH71,MXVA71201712-202103

53579CAP, HOOD LOCK NUT

main53579-0E020iASV71201901-202103

main53579-50010iASV71,AXVA70,AXVH71201712-201812

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D061-C1iAXVA70,AXVH71,MXVA71..S202003-202103

BLACK,TRIM2#,41

main53601-0D061-C1iAXVA70,AXVH71,MXVA71..S202003-202103

BLACK,TRIM2#,3#

main53601-0D061-C1iAXVA70,AXVH71,MXVA71..S202103

BLACK,TRIM2#

main53601-0D061-E0iAXVA70,AXVH71,MXVA71..G202003-202103

NEUTRAL BEIGE,TRIM4#

main53601-0D061-E0iAXVA70,AXVH71,MXVA71..G202003-202103

NEUTRAL BEIGE,TRIM40

main53601-52010-C1iAXVA70,AXVH71..S201712-202003

BLACK,TRIM2#

sub53601-52010

main53601-52010-C1iMXVA71..G,S;AXVA70,AXVH71..E,G201712-202003

BLACK,TRIM2#,3#

sub53601-52010

main53601-52010-L1iASV71201712-202003

NEUTRAL BEIGE,TRIM4#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-06250iASV71201712-202003

main53630-06251iAXVA70,AXVH71,MXVA71202003-202103

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-C0008iASV71201712-202103

8424

8271106130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-06130

90105C0134

main90105-C0134

9011908D26

main90119-08D26

90119C0054

main90119-C0054

90119C0623

main90119-C0623

23 parts on this diagram · 1 diagram in section
