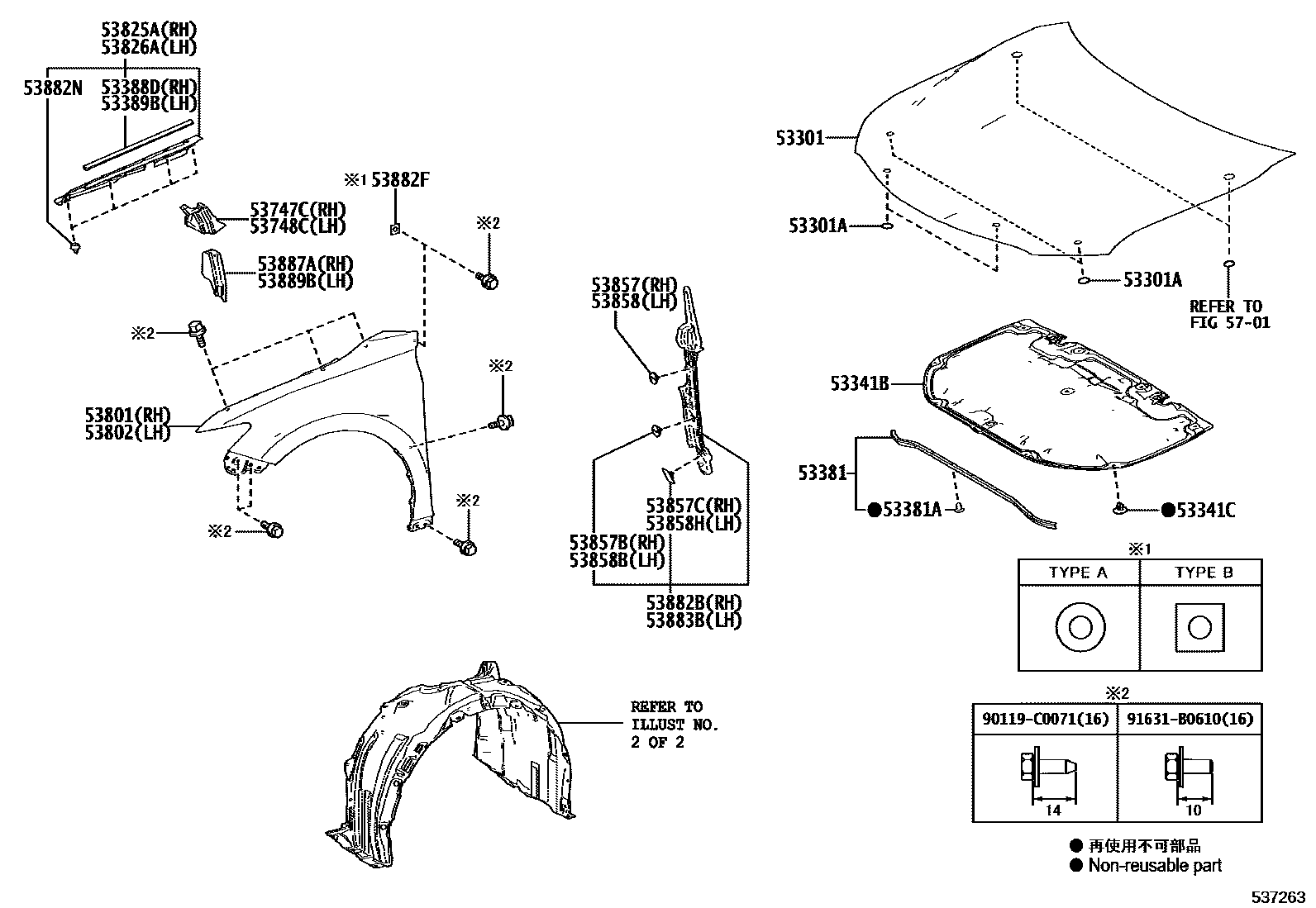

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53301APLUG, HOLE(FOR HOOD)
(J)
(L)
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
(J)
(L)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
(J)
(L)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53747CPLATE, AIR SEALED, RH
53748CPLATE, AIR SEALED, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
(L)
(J)
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
(L)
(J)
53858HRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882BSEAL, FRONT FENDER, RH
53882FSEAL, FRONT FENDER
(L),TYPE B:REF ILL.
TYPE A:REFER ILLUST.
(J),TYPE B:REF ILL.
53882NCLIP(FOR FRONT FENDER SEAL)
53883BSEAL, FRONT FENDER, LH
53887ASEAL, FRONT FENDER SPLASH SHIELD, NO.1
53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2
5701
90119C0071
main90119-C0071
91631B0610
main91631-B0610
29 parts on this diagram · 2 diagrams in section
