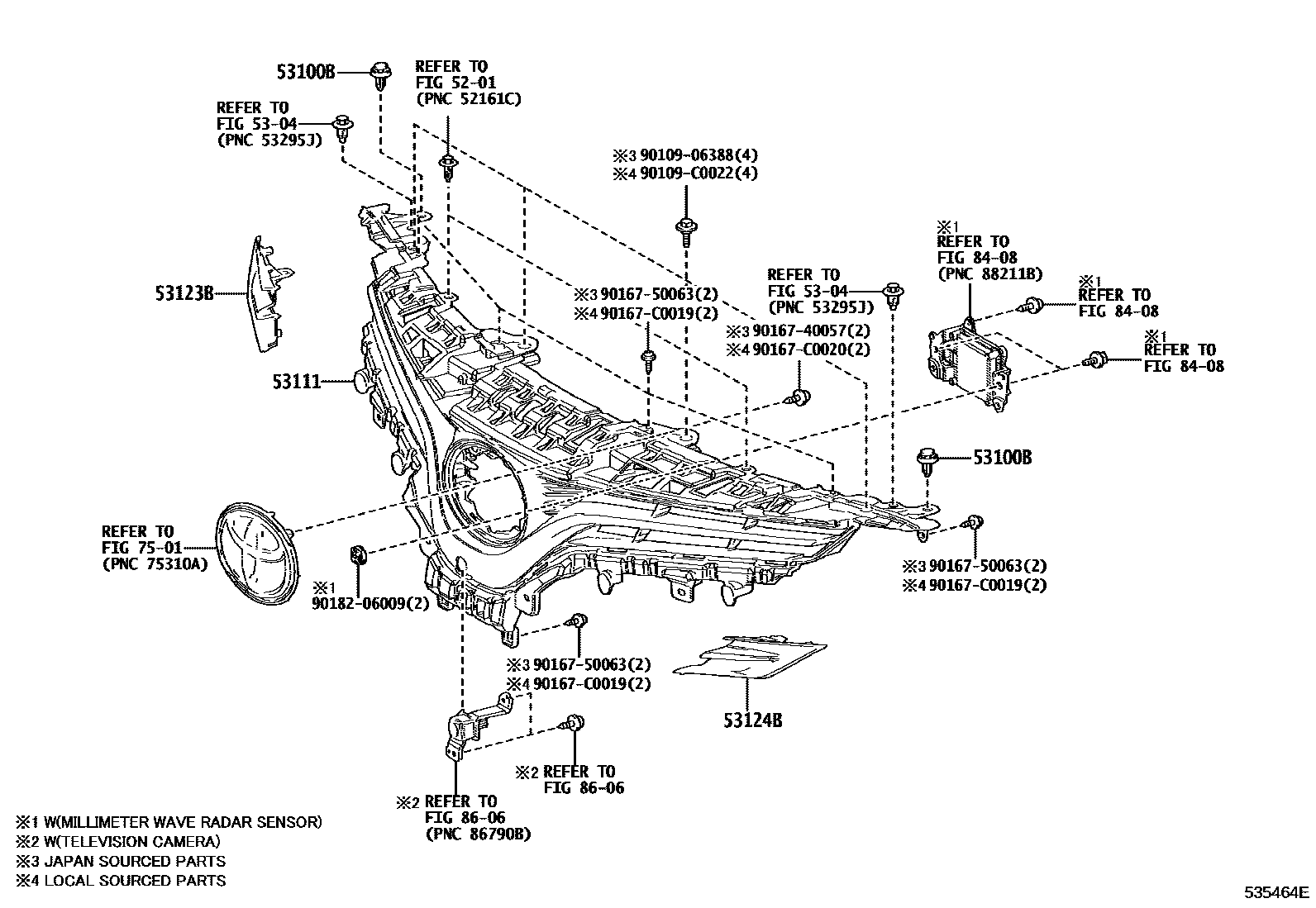

RADIATOR GRILLE

0001 1 0002 1SPORT 0003 1 0004 1

5201

5304

53100BCLIP, RADIATOR GRILLE

main90467-07220iASV71201812-202103

(J)

main90467-07220iASV71,AXVA70,AXVH71201712-201812

main90467-C0043iAXVA70,AXVH71,MXVA71201812-202103

(L)

53111GRILLE, RADIATOR

main53101-06B50iMXVA71..G201712-202103

NO PAINT REQ.,VALUE PACKAGE

main53101-06B50iASV71..E201712-202103

NO PAINT REQ.

main53101-06B70iASV71..G201712-202103

PLATED

main53101-06B80iAXVA70,AXVH71,MXVA71..S201712-202103

NO PAINT REQ.

main53101-06F70iAXVA70,AXVH71,MXVA71..E,G202103

PLATED

main53101-06F80iAXVA70,AXVH71,MXVA71..S202103

NO PAINT REQ.

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-06120iAXVH71,MXVA71..E201712-202103

VALUE PACKAGE

main53123-06200iAXVA70,AXVH71,MXVA71..G201712-202103

main53123-06240iAXVA70,AXVH71,MXVA71..E,G202103

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-06200iASV71..G201712-202103

main53124-06210iAXVA70,AXVH71,MXVA71..E,G202103

main53124-06220iASV71..G201712-202103

VALUE PACKAGE

7501

8408

8606

9010906388

main90109-06388

90109C0022

main90109-C0022

9016740057

main90167-40057

9016750063

main90167-50063

90167C0019

main90167-C0019

90167C0020

main90167-C0020

9018206009

main90182-06009

16 parts on this diagram · 4 diagrams in section
