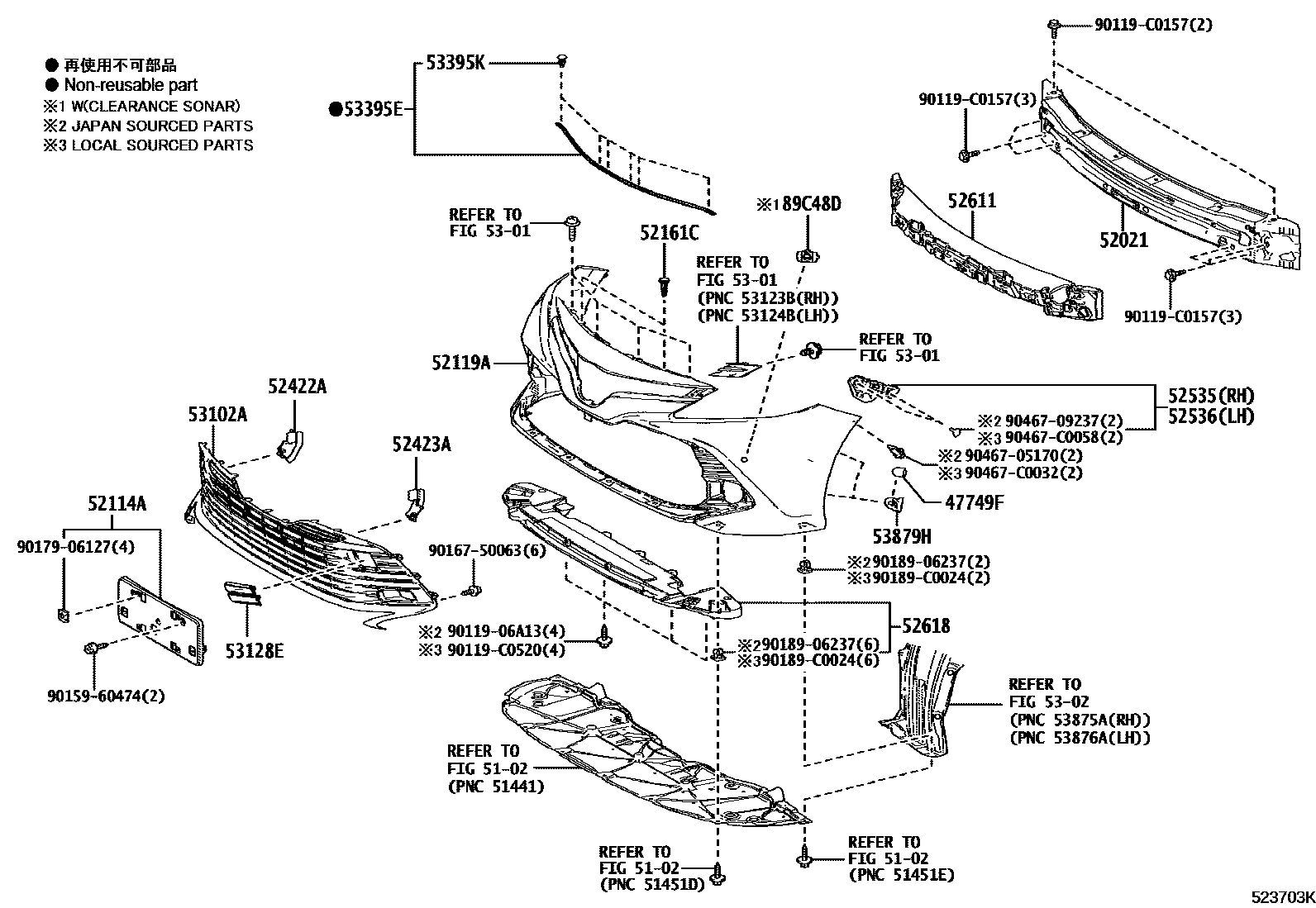

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
(L)
(J)
5102
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.,VALUE PACKAGE
PAINT REQ.
PAINT REQ.
PAINT REQ.,WITHOUT(CLEARANCE & BACK SONER)
PAINT REQ.
PAINT REQ.
PAINT REQ.
52161CPIECE, FRONT BUMPER
52422APAD, FRONT BUMPER, RH
NO PAINT REQ.
NO PAINT REQ.
52423APAD, FRONT BUMPER, LH
NO PAINT REQ.
NO PAINT REQ.
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
5301
5302
53102AGRILLE SUB-ASSY, RADIATOR, LWR
VALUE PACKAGE
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
53128EGRILLE, RADIATOR, LOWER SIDE LH
VALUE PACKAGE
53395ESEAL, HOOD TO FRONT END PANEL
53395KCLIP(FOR HOOD TO FRONT END PANEL SEAL)
53879HRETAINER, FRONT FENDER LINER
(L)
(J)
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
VALUE PACKAGE
9011906A13
main90119-06A13
90119C0157
main90119-C0157
90119C0520
main90119-C0520
9015960474
main90159-60474
9016750063
main90167-50063
9017906127
main90179-06127
9018906237
main90189-06237
90189C0024
main90189-C0024
9046705170
main90467-05170
9046709237
main90467-09237
90467C0032
main90467-C0032
90467C0058
main90467-C0058
32 parts on this diagram · 4 diagrams in section
