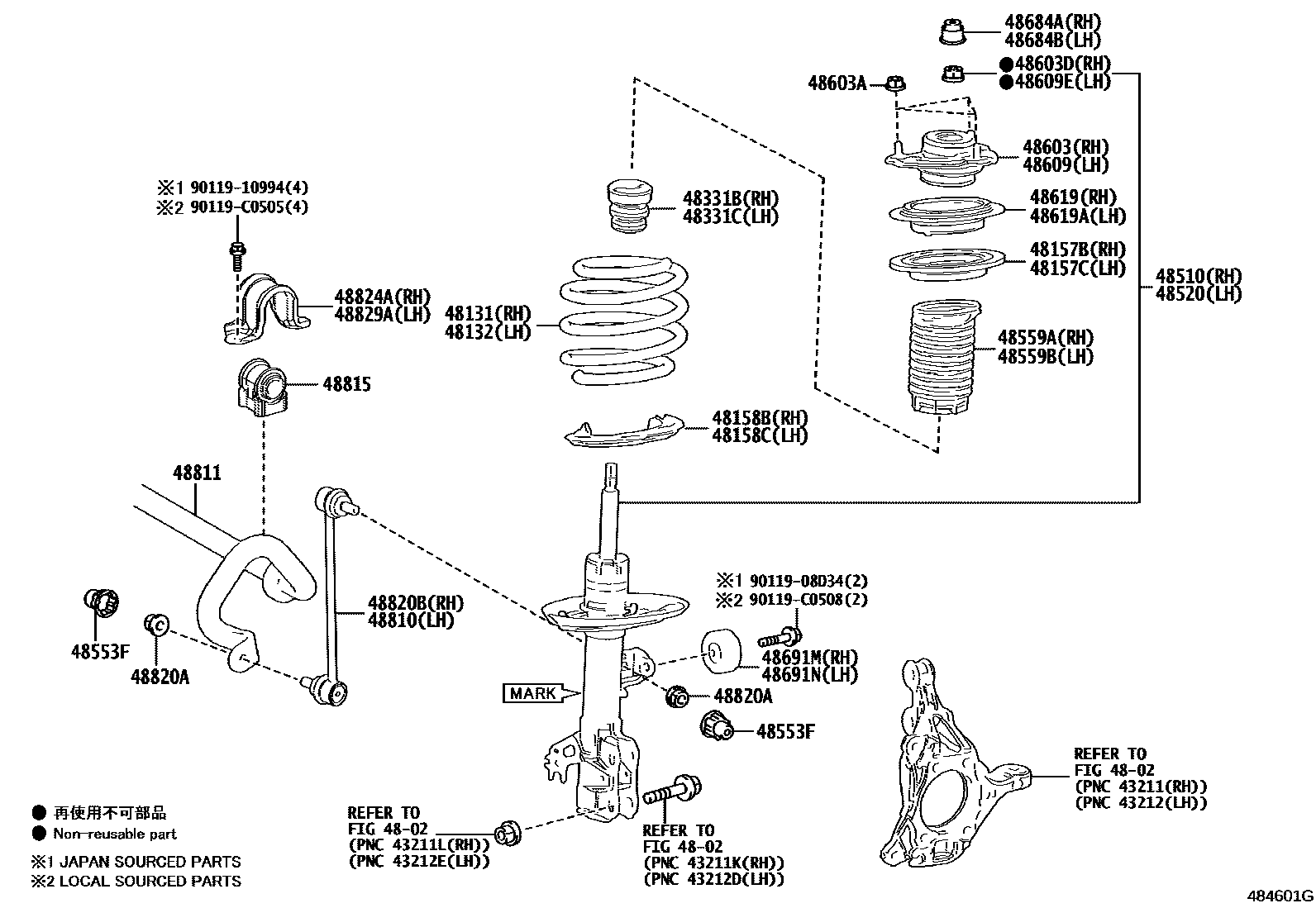

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-06J30iAXVA70,MXVA71201712-202206

main48131-06J40iAXVH71201712-202206

main48131-06L00iAXVA70,MXVA71202206

main48131-06L10iAXVH71202206

48132SPRING, FRONT COIL, LH

main48131-06J30iASV71201712-202206

main48131-06J40iAXVH71201712-202206

main48131-06L00iAXVA70,MXVA71202206

main48131-06L10iAXVH71202206

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06230iASV71201712-202103

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06230iASV71201712-202103

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-06270iASV71201712-202103

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-06270iASV71201712-202103

48331BBUMPER, FRONT SPRING, RH

main48331-06070iASV71201712-202103

48331CBUMPER, FRONT SPRING, LH

main48331-06070iASV71201712-202103

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z342iASV71201712-202103

MARK 48510-06B10

main48510-8Z496iAXVA70,AXVH71,MXVA71202103

MARK 48510-06B11

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z200iASV71201712-202103

MARK 48520-06B10

main48520-8Z337iAXVA70,AXVH71,MXVA71202103

MARK 48520-06B11

48553FCAP

main48553-52030iAXVA70,AXVH71,MXVA71201903-202110

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-06020iASV71201712-202103

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-06020iASV71201712-202103

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-06400iASV71,AXVA70,AXVH71201712-201805

sub48609-06401

main48609-06401iASV71201806-202103

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-C0033iASV71201712-202103

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iAXVA70,AXVH71,MXVA71201712-202103

(J)

main90177-C0025iAXVA70,AXVH71,MXVA71201712-202103

(L)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06400iASV71,AXVA70,AXVH71201712-201805

sub48609-06401

main48609-06401iAXVA70,AXVH71,MXVA71201806-202103

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iASV71201712-202103

(J)

main90177-C0025iASV71201712-202103

(L)

48619BEARING, STRUT MOUNTING, RH

main48619-06020iASV71201712-202103

48619ABEARING, STRUT MOUNTING, LH

main48619-06020iASV71201712-202103

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-33030iAXVA70,AXVH71,MXVA71201903-202103

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-33030iAXVA70,AXVH71,MXVA71201903-202103

48691MDAMPER, FRONT SUSPENSION, RH

main48691-06050iASV71201712-202103

48691NDAMPER, FRONT SUSPENSION, LH

main48691-06050iAXVA70,AXVH71,MXVA71201712-202103

48810LINK ASSY, FRONT STABILIZER, LH

main48820-06130iAXVA70,AXVH71,MXVA71201712-202103

48811BAR, STABILIZER, FRONT

main48811-06310iASV71201712-202103

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06270iASV71201712-202103

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-C0018iAXVA70,AXVH71,MXVA71201712-202103

(L)

main94151-21241iAXVA70,AXVH71,MXVA71201712-202103

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06130iASV71201712-202103

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-06020iAXVA70201712-202103

main48824-06060iAXVH71,MXVA71201712-202103

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06060iAXVA70,AXVH71,MXVA71201712-202103

9011908D34

main90119-08D34

9011910994

main90119-10994

90119C0505

main90119-C0505

90119C0508

main90119-C0508

36 parts on this diagram · 1 diagram in section
