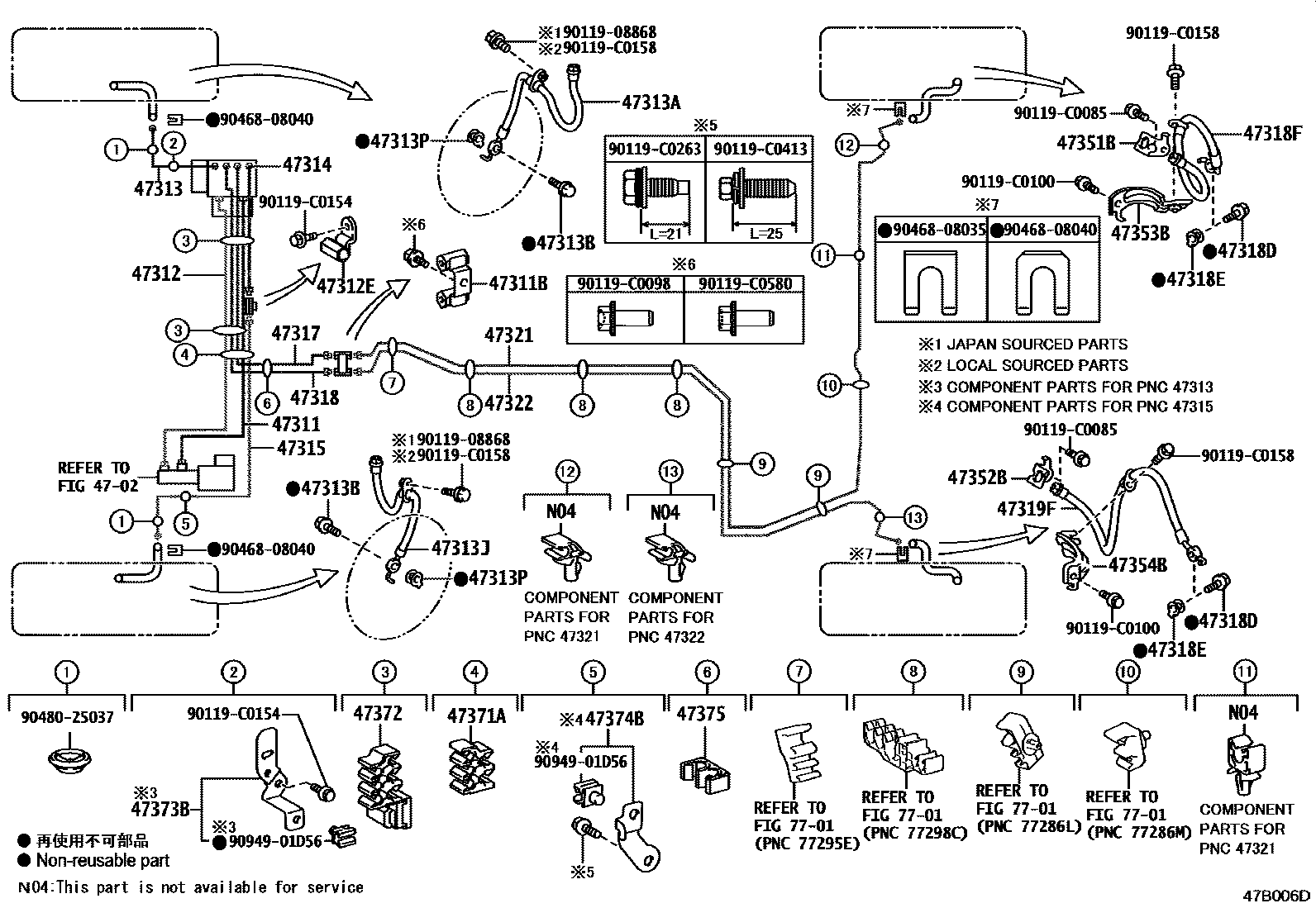

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR 0005 1BRAKE ACTUATOR & BRAKE BOOSTE

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-06680iASV71201712-202103

main47311-06690iAXVH71201712-201902

sub47311-06691

main47311-06691iAXVH71201903-202103

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iASV71,AXVA70,AXVH71201712-201808

main90412-C0004iAXVA70,AXVH71,MXVA71201809-202103

47312TUBE, FRONT BRAKE, NO.2

main47312-06520iAXVA70,MXVA71201712-202103

main47312-06530iAXVH71201712-201902

sub47312-06531

main47312-06531iAXVH71201903-202103

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10272iASV71201712-202103

(J)

main90412-C0002iAXVA70,AXVH71,MXVA71201712-202103

(L)

47313TUBE, FRONT BRAKE, NO.3

main47313-06510iASV71,AXVA70,AXVH71201712-201902

sub47313-06511

main47313-06511iAXVA70,AXVH71,MXVA71201903-202103

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2076iASV71201712-202103

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iASV71201712-202103

(J)

main90401-C0001iAXVA70,AXVH71,MXVA71201712-202103

(L)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2077iAXVA70,AXVH71,MXVA71201712-202103

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iASV71201712-202103

47314TUBE, FRONT BRAKE, NO.4

main47314-06460iASV71,AXVA70,AXVH71201712-201902

sub47314-06461

main47314-06461iAXVA70,AXVH71,MXVA71201903-202103

47315TUBE, FRONT BRAKE, NO.5

main47315-06480iASV71,AXVA70,AXVH71201712-201902

sub47315-06481

main47315-06481iAXVA70,AXVH71,MXVA71201903-202103

47317TUBE, FRONT BRAKE, NO.7

main47317-06580iASV71,AXVA70,AXVH71201712-201902

sub47317-06581

main47317-06581iAXVA70,AXVH71,MXVA71201903-202103

47318TUBE, FRONT BRAKE, NO.8

main47318-06140iASV71,AXVA70,AXVH71201712-201902

sub47318-06141

main47318-06141iAXVA70,AXVH71,MXVA71201903-202103

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iASV71,AXVA70,AXVH71201712-201802

main90401-10058iAXVA70,AXVH71,MXVA71201802-202103

(J)

main90401-C0001iAXVA70,AXVH71,MXVA71201802-202103

(L)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iAXVA70,AXVH71,MXVA71201712-202103

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2079iAXVA70,AXVH71,MXVA71201712-202103

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2080iAXVA70,AXVH71,MXVA71201712-202103

47321TUBE, REAR BRAKE, NO.1

main47321-06300iASV71,AXVA70201712-201902

sub47321-06301

main47321-06301iAXVA70,MXVA71201903-202103

main47321-06310iAXVH71201712-201902

sub47321-06311

main47321-06311iAXVH71201903-202103

47322TUBE, REAR BRAKE, NO.2

main47322-06300iASV71,AXVA70201712-201902

sub47322-06301

main47322-06301iAXVA70,MXVA71201903-202103

main47322-06310iAXVH71201712-201902

sub47322-06311

main47322-06311iAXVH71201903-202103

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-06070iASV71201712-202103

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-06070iASV71201712-202103

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-06060iASV71201712-202103

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-06060iAXVA70,AXVH71,MXVA71201712-202103

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D99iAXVH71201712-202103

main90949-01E40iAXVA70,MXVA71201712-202103

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E31iASV71201712-202103

main90949-01E39iAXVH71201712-202103

47373BCLAMP, BRAKE TUBE, NO.3

main47371-33340iASV71201712-202103

47374BCLAMP, BRAKE TUBE, NO.4

main47371-33350iASV71201712-202103

47375CLAMP, BRAKE TUBE, NO.5

main90464-00904iASV71201712-202103

7701

9011908868

main90119-08868

90119C0085

main90119-C0085

90119C0098

main90119-C0098

90119C0100

main90119-C0100

90119C0154

main90119-C0154

90119C0158

main90119-C0158

90119C0263

main90119-C0263

90119C0413

main90119-C0413

90119C0580

main90119-C0580

9046808035

main90468-08035

9046808040

main90468-08040

9048025037

main90480-25037

9094901D56

main90949-01D56

43 parts on this diagram · 5 diagrams in section
