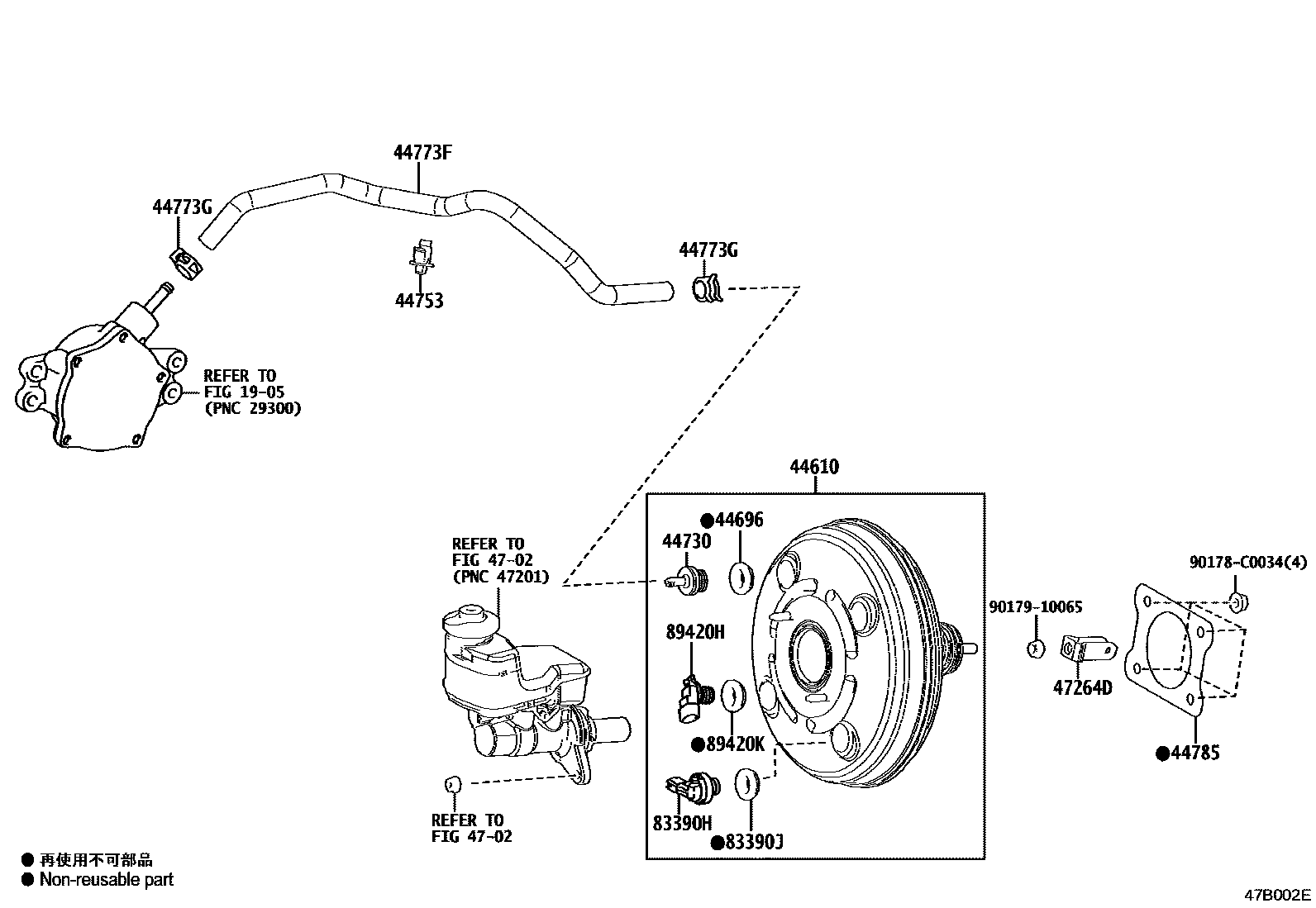

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-06740iASV71,AXVA70,MXVA71201712-201905

sub44610-06741

main44610-06741iAXVA70,MXVA71201906-202007

main44610-06820iAXVA70,MXVA71202007-202112

main44610-06821iAXVA70,MXVA71202112-202304

main44610-06822iAXVA70,MXVA71202304

44696GROMMET, CHECK VALVE

main90016-AT003iAXVA70,MXVA71202112-202304

main90080-48071iASV71,AXVA70,MXVA71201712-202112

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iAXVA70,MXVA71201906-202103

main44730-22150iASV71,AXVA70,MXVA71201712-201906

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-30320iASV71201712-201902

44773FHOSE, UNION TO CHECK VALVE

main44773-06240iASV71201712-201902

main44773-06260iAXVA70,MXVA71201712-202103

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-C0034iASV71201712-202103

(L)

main90467-16014iAXVA70,MXVA71201712-202103

(J)

44785GASKET, BRAKE BOOSTER

main44785-02050iAXVA70,MXVA71201712-202103

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-06030iASV71,AXVA70,MXVA71201712-202103

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iAXVA70,MXVA71201712-202112

83390JGROMMET, VACUUM WARNING SWITCH

main90080-48071iASV71,AXVA70,MXVA71201712-202112

89420HSENSOR ASSY, VACUUM

main89421-52020iASV71201712-202304

main89421-71040iAXVA70,MXVA71202304

89420KGROMMET, VACUUM SENSOR

main90016-AT003iAXVA70,MXVA71202112-202304

main90080-48071iASV71,AXVA70,MXVA71201712-202112

90178C0034

main90178-C0034

9017910065

main90179-10065

16 parts on this diagram · 2 diagrams in section
