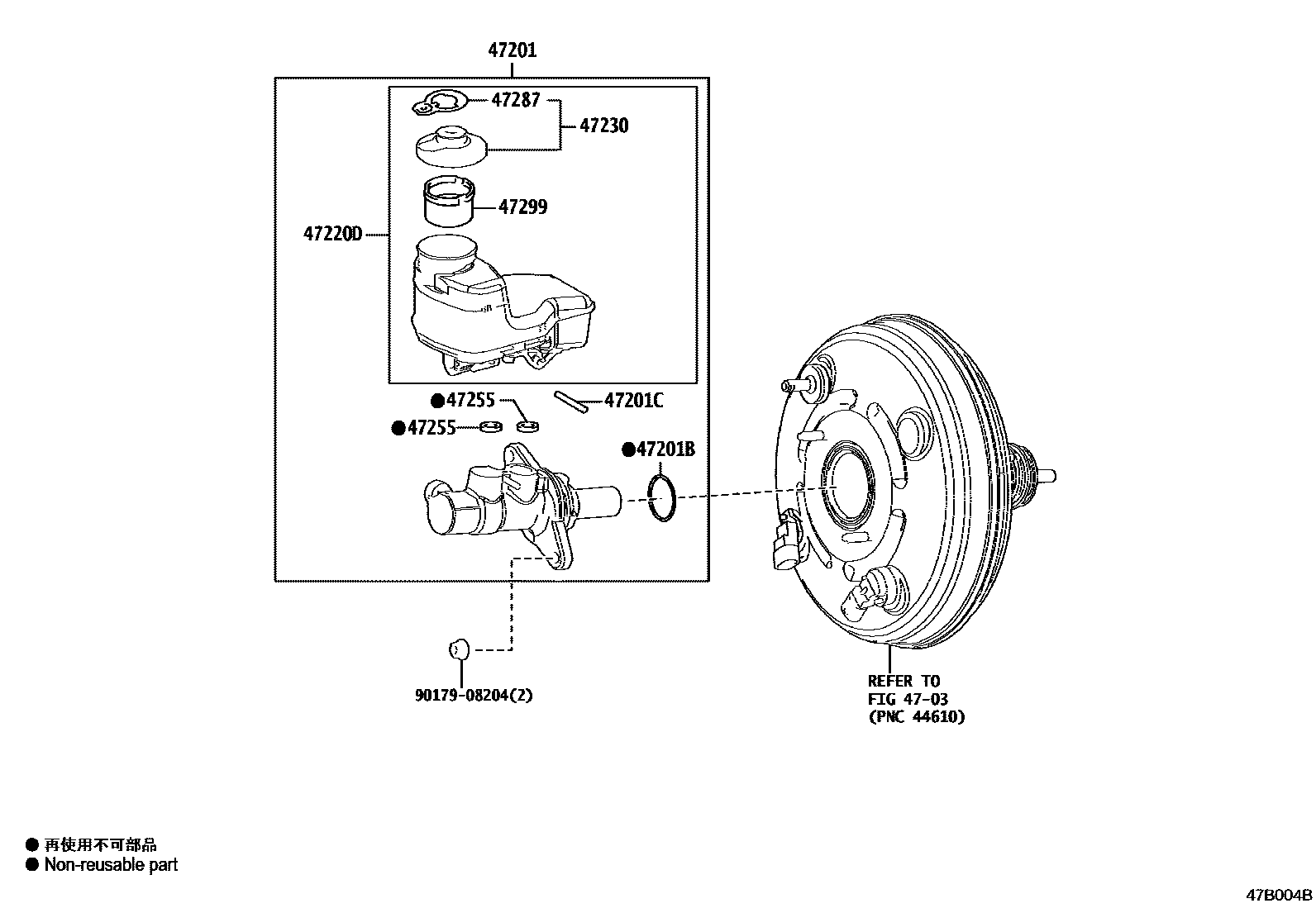

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06550iASV71,AXVA70,MXVA71201712-202007

main47201-06570iAXVA70,MXVA71202007-202103

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH902iASV71,AXVA70,MXVA71201712-202103

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASV71,AXVA70,MXVA71201712-202103

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-06350iAXVA70,MXVA71201712-202103

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0R030iASV71201712-202103

main47230-33330iAXVH71202002-202008

sub47230-47090

main47230-47090iAXVH71201712-202103

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002iASV71,AXVA70,MXVA71201712-202103

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iASV71201712-202103

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iASV71201712-202103

9017908204

main90179-08204
