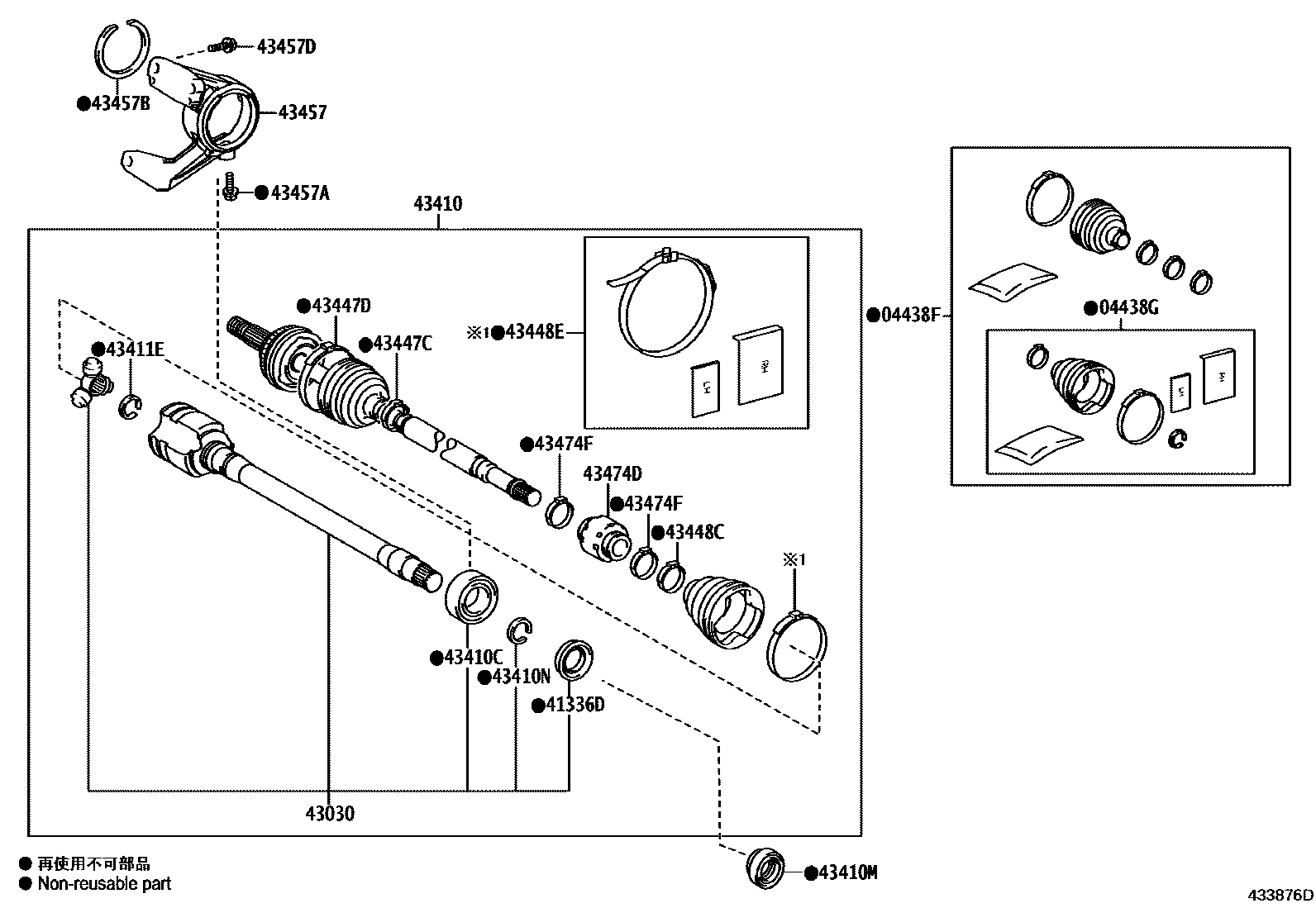

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02710iAXVA70,MXVA71201712-202103

main04427-02720iAXVH71201712-202103

main04427-02A70iAXVH71202103-202203

sub04427-02A71

main04427-02A71iAXVH71202203

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02640iASV71201712-202103

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iASV71201712-201902

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-06460iAXVA70201712-202103

main43030-06530iAXVH71,MXVA71201712-202103

main43030-06540iASV71201712-201902

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06B10iAXVH71201712-202103

main43410-06B20iAXVA70201712-202103

main43410-06C20iASV71201712-201902

main43410-06C40iAXVH71202103

main43410-07100iMXVA71201903-202103

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-C0001iASV71201712-201902

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iASV71201712-201902

main90311-40046iAXVA70201804-202103

TOYOTA:REFER 35-01

main90311-40046iAXVA70201712-202103

AISIN AW:REFER 35-01

main90311-40046iAXVA70201712-202103

(J)

main90311-40046iAXVA70202103

TOYOTA:REFER 35-01,AISIN AW:REFER 35-01

main90311-40047iMXVA71201903-202103

main90311-C0057iAXVH71202007-202103

(L)

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015iASV71201712-202103

(J)

main90520-C0032iASV71201712-202103

(L)

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iAXVH71201712-202103

(J)

main90520-C0030iAXVA70,AXVH71,MXVA71201712-202103

(L)

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iASV71201712-202103

main42345-42120iAXVH71201712-202103

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iAXVA70,MXVA71201712-202103

main42345-42110iAXVH71201712-202103

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06B90iASV71201810-202306

(L)

main42345-28090iAXVA70,AXVH71,MXVA71202306

main42345-33120iAXVA70,AXVH71,MXVA71201810-202306

(J)

main42345-33120iASV71,AXVA70,AXVH71201712-201810

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-33140iASV71201712-202103

43457BRACKET, DRIVE SHAFT BEARING

main43457-06160iAXVA70201712-202103

main43457-06170iAXVH71,MXVA71201712-202103

main43457-0E010iASV71201712-201902

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-C0124iAXVA70,AXVH71,MXVA71201712-202103

*10-1.25PX22-19.5

main90119-10461iASV71201712-201902

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iASV71201712-201806

main90521-C0001iASV71201807-201902

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-C0014iAXVA70,AXVH71,MXVA71201712-202103

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06500iAXVA70,AXVH71,MXVA71201712-202103

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06420iAXVA70,AXVH71,MXVA71201712-202103

(L)

main42345-12090iAXVA70,AXVH71,MXVA71201712-202103

(J)

19 parts on this diagram · 3 diagrams in section
