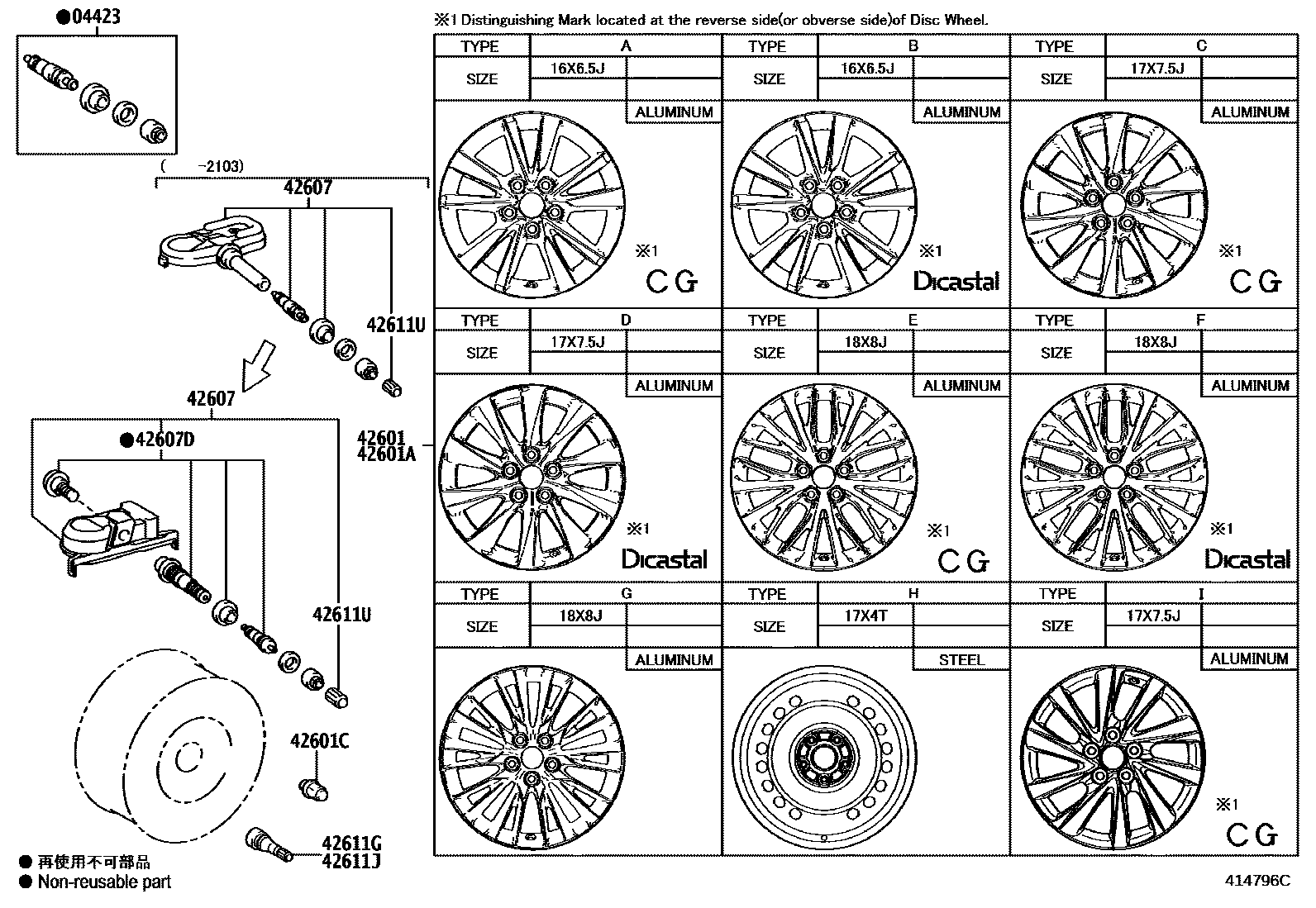

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
16X6.5J, #,TYPE A:REFER ILLUST.
16X6.5J, #,VALUE PACKAGE,TYPE A:REFER ILLUST.
17X7.5J, #,TYPE C:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-215/55R17, 7.5J ALUMINUM,TYPE C:REFER ILLUST.
18X8J, #,TYPE F:REFER ILLUST.
18X8J, #,TYPE E:REFER ILLUST.
16X6.5J, #,TYPE B:REFER ILLUST.
16X6.5J, #,VALUE PACKAGE,TYPE B:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-215/55R17, 7.5J ALUMINUM,TYPE D:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
18X8J, #,TYPE F:REFER ILLUST.
17X7.5J,#,TIRE & DISC WHEEL-215/55R17, 7.5J, ALUMINUM,TYPE I:REFER ILLUST.
17X7.5J,#,TYPE I:REFER ILLUST.
17X7.5J,#,TYPE J:REFER ILLUST.
17X7.5J,#,TIRE & DISC WHEEL-215/55R17, 7.5J, ALUMINUM,TYPE J:REFER ILLUST.
18X8J, #,TYPE K:REFER ILLUST.
18X8J, #,TYPE L:REFER ILLUST.
18X8J, #,TYPE K:REFER ILLUST.
18X8J, #,TYPE G:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE H:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
(J)
(L)
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607DVALVE, TIRE PRESSURE MONITOR
42611GVALVE (FOR TUBELESS TIRE)
VALUE PACKAGE
42611JVALVE (FOR TUBELESS TIRE SPARE)
(J)
(L)
42611UCAP, TIRE VALVE
9 parts on this diagram · 3 diagrams in section
