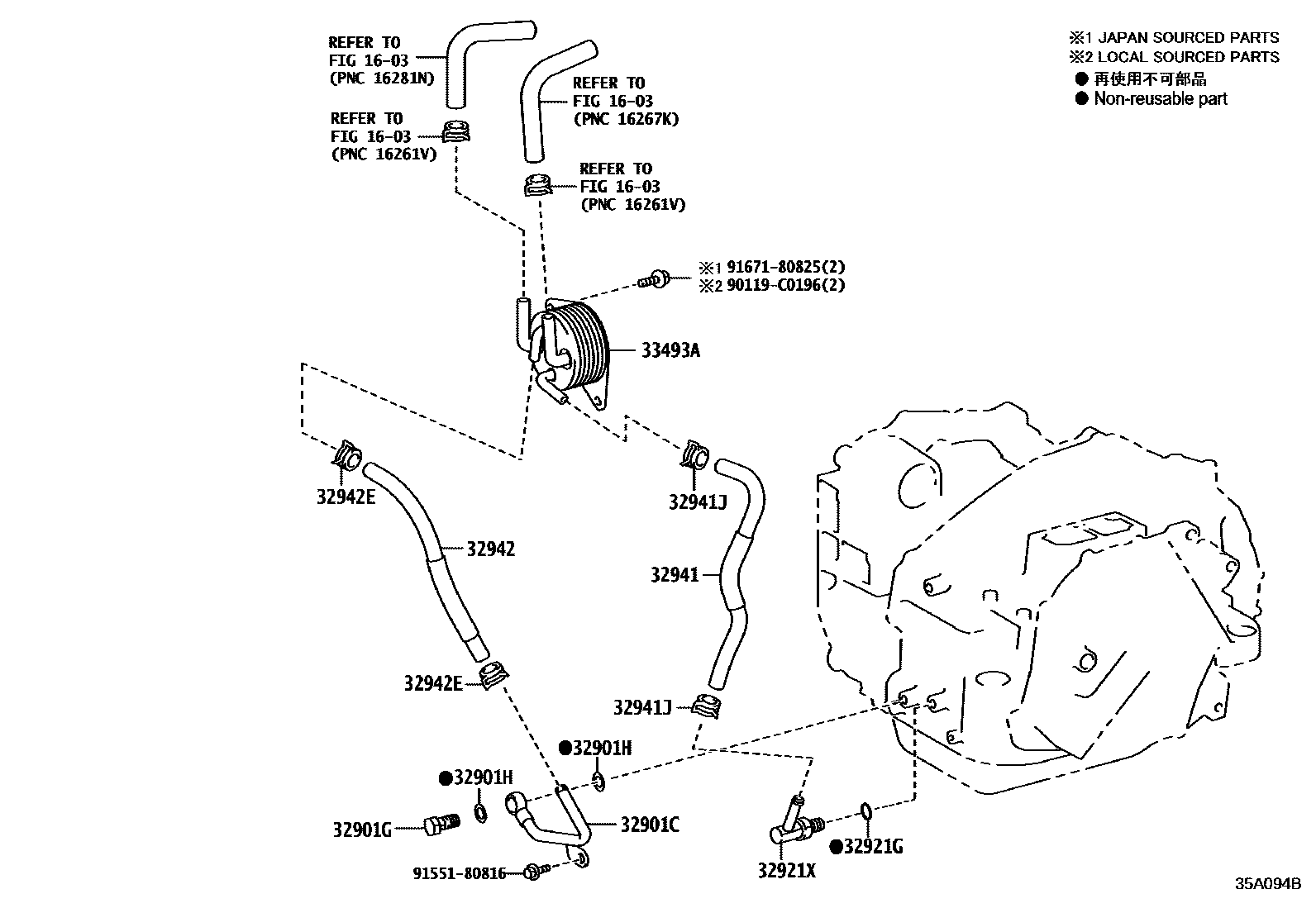

OIL COOLER & TUBE (ATM)

0001 1U761E 0002 1UB80E

1603

32901CUNION SUB-ASSY, OIL COOLER

main32901-48010iASV71201712-201902

main32901-48020iAXVA70201712-202103

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iASV71,AXVA70201712-202103

32901HGASKET(FOR OIL COOLER UNION)

main90430-14013iASV71201712-201902

main90430-14016iAXVA70201712-202103

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iASV71,AXVA70201712-202103

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-14032iASV71201712-201902

32941HOSE, OIL COOLER INLET, NO.1

main32941-06230iAXVA70201712-202103

main32941-06250iASV71201712-201902

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iASV71201712-202103

(J)

main90466-C0024iASV71201712-202103

(L)

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-06230iAXVA70201712-202103

main32942-06240iASV71201712-201902

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iASV71201712-202103

(J)

main90466-C0024iASV71201712-202103

(L)

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-06030iAXVA70201712-201903

sub33493-06031

main33493-06031iAXVA70201904-202103

main33493-06040iASV71201712-201902

90119C0196

main90119-C0196

9155180816

main91551-80816

9167180825

main91671-80825

14 parts on this diagram · 2 diagrams in section
