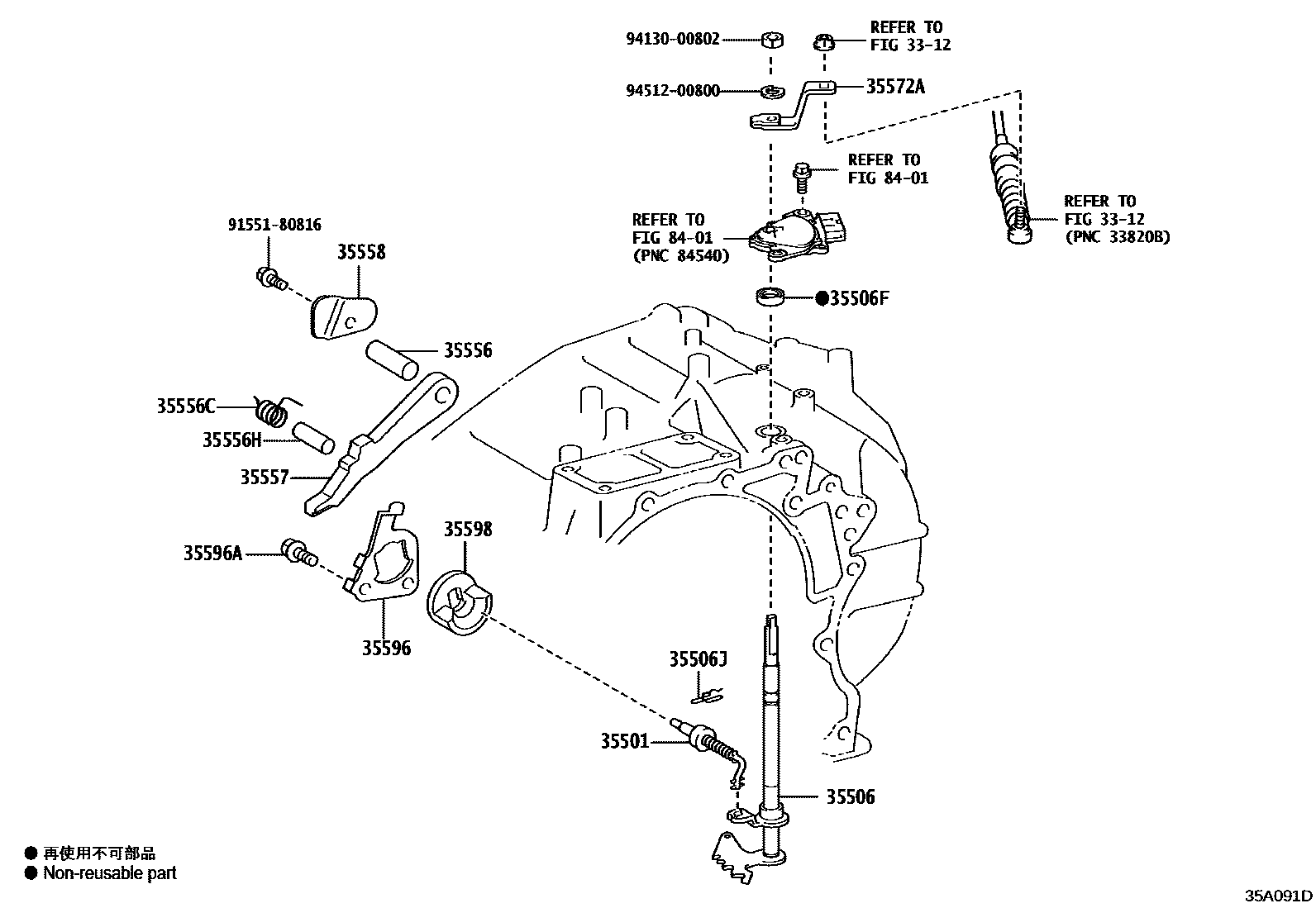

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U761E 0002 1UB80E

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-33020iASV71¥1,010201712-201902

main35501-33030iAXVA70¥1,240201712-202103

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33011iASV71¥1,710201712-201902

main35506-33030iAXVA70201804-202202

TOYOTA:REFER 35-01

main35506-33031iAXVA70202202-202210

TOYOTA:REFER 35-01

main35506-33040iAXVA70201712-202205

AISIN AW:REFER 35-01

main35506-33041iAXVA70202205

AISIN AW:REFER 35-01

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iASV71¥270201712-201902

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09002iASV71¥100201712-201902

main90524-09004iAXVA70¥60201712-202103

35556SHAFT, PARKING LOCK PAWL

main35556-33020iASV71¥460201712-201902

main35556-48030iAXVA70¥520201804-202103

TOYOTA:REFER 35-01

main35556-48040iAXVA70201712-202103

AISIN AW:REFER 35-01

35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)

main90508-21008iASV71¥140201712-201902

35556HSHAFT, PARKING LOCK PAWL

main35556-33030iASV71¥220201712-201902

35557PAWL, PARKING LOCK

main35557-33040iAXVA70¥2,810201712-202103

main35557-73010iASV71¥3,090201712-201902

35558CLAMP, PAWL SHAFT

main35558-33020iASV71¥270201712-201902

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33020iASV71¥670201712-201902

main35572-48050iAXVA70¥810201712-202103

sub35572-48051¥740

main35572-48050iAXVA70¥810202103-202111

TOYOTA:REFER 35-01,AISIN AW:REFER 35-01

sub35572-48051¥740

main35572-48051iAXVA70¥740202111

TOYOTA:REFER 35-01,AISIN AW:REFER 35-01

35596PLATE, PAWL STOPPER

main35596-33020iAXVA70201712-202103

main35596-73010iASV71¥400201712-201902

35596ABOLT (FOR PAWL STOPPER PLATE)

main91551-80816iASV71¥80201712-201902

*8-1.25PX16-13.5

35598SLEEVE, PARKING LOCK

main35598-33010iASV71¥990201712-201902

main35598-48040iAXVA70¥770201712-202103

8401

9155180816

main91551-80816¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

18 parts on this diagram · 2 diagrams in section
