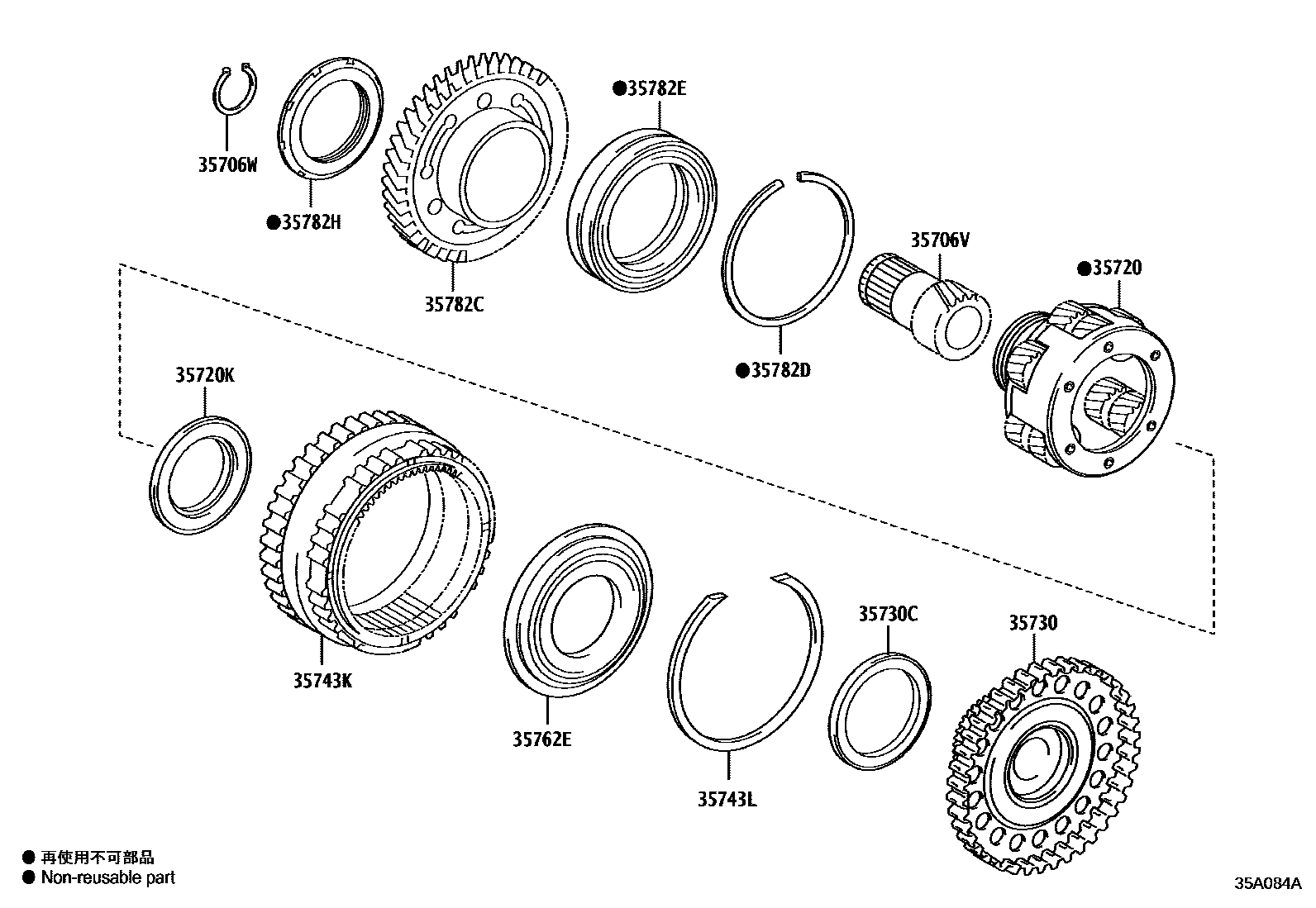

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U761E 0002 1UB80E(FRONT & REAR PLANETARY 0003 1UB80E(COUNTER DRIVE & DRIVEN

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-33030iAXVA70201804-202103

TOYOTA:REFER 35-01

sub35706-33040¥3,030

main35706-33040iAXVA70¥3,030201712-202102

AISIN AW:REFER 35-01

main35706-73010iASV71¥9,300201712-201902

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iASV71¥60201712-201902

35720GEAR ASSY, FRONT PLANETARY

main35720-33070iASV71¥39,200201712-201902

main35720-33080iAXVA70201804-202103

TOYOTA:REFER 35-01

main35720-33090iAXVA70¥30,300201712-202102

AISIN AW:REFER 35-01

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62011iASV71¥1,200201712-201902

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33030iASV71¥9,300201712-201902

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iASV71¥1,260201712-201902

35743GEAR, FRONT PLANETARY RING

main35743-33060iAXVA70¥8,500201712-202103

35743KGEAR, PLANETARY RING

main35743-33040iASV71¥33,300201712-201902

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iASV71¥140201712-201902

35762EFLANGE, PLANETARY RING GEAR

main35762-73010iASV71¥1,020201712-201902

35782CGEAR, COUNTER DRIVE

main35782-33040iASV71¥14,200201712-201902

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99154iASV71¥140201712-201902

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72002iASV71¥6,800201712-201902

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iASV71¥330201712-201902

14 parts on this diagram · 3 diagrams in section
