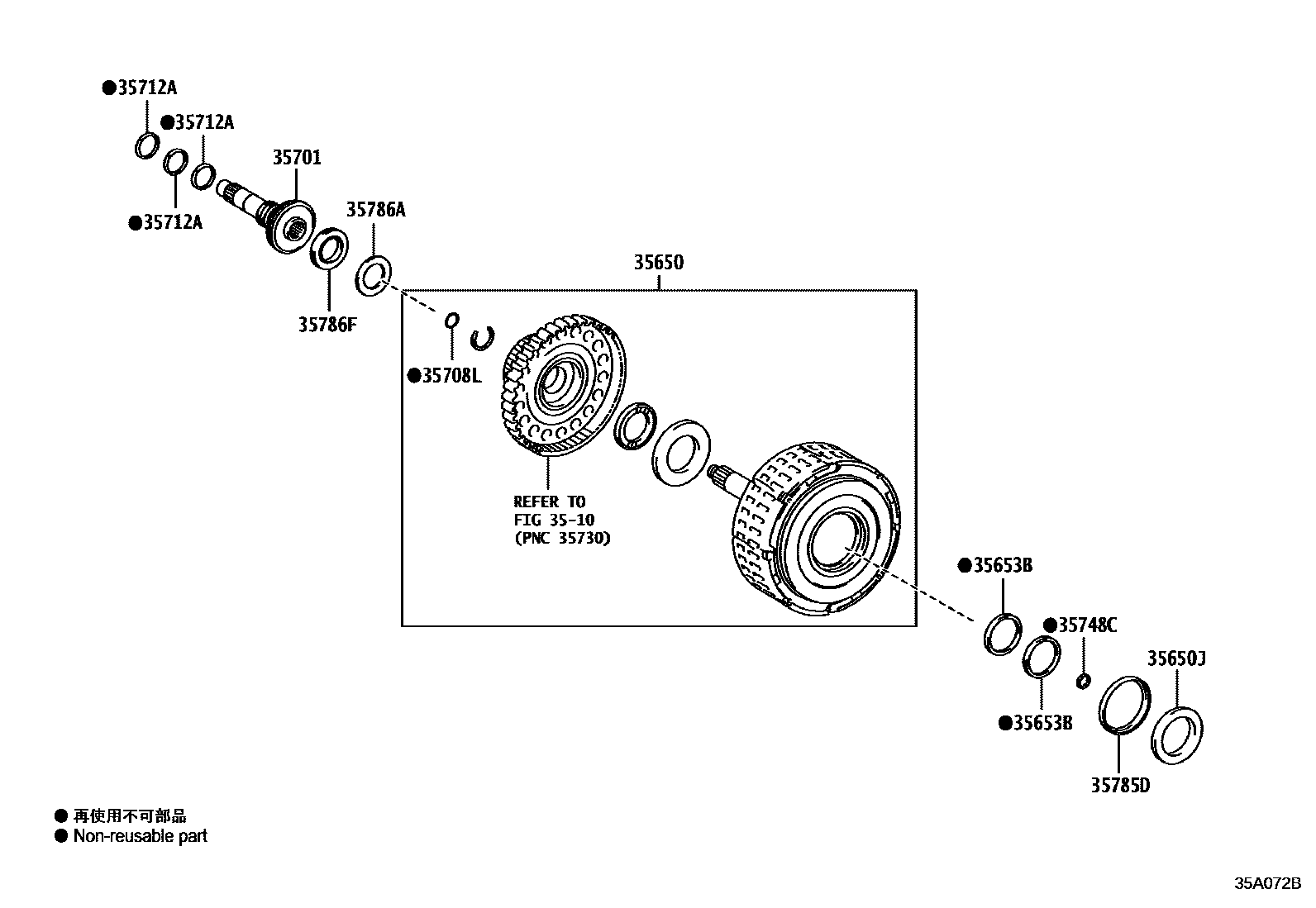

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
3510
35650CLUTCH ASSY, REAR MULTIPLE DISC
35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
35701SHAFT SUB-ASSY, INPUT
35708LRING, O (FOR INTERMEDIATE SHAFT)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35712ARING, INPUT SHAFT OIL SEAL
35748CRING, INTERMEDIATE SHAFT OIL SEAL
35785DRACE, THRUST BEARING, NO.4
35786ARACE, THRUST BEARING, NO.1
35786FBEARING, THRUST NEEDLE ROLLER
11 parts on this diagram · 2 diagrams in section
