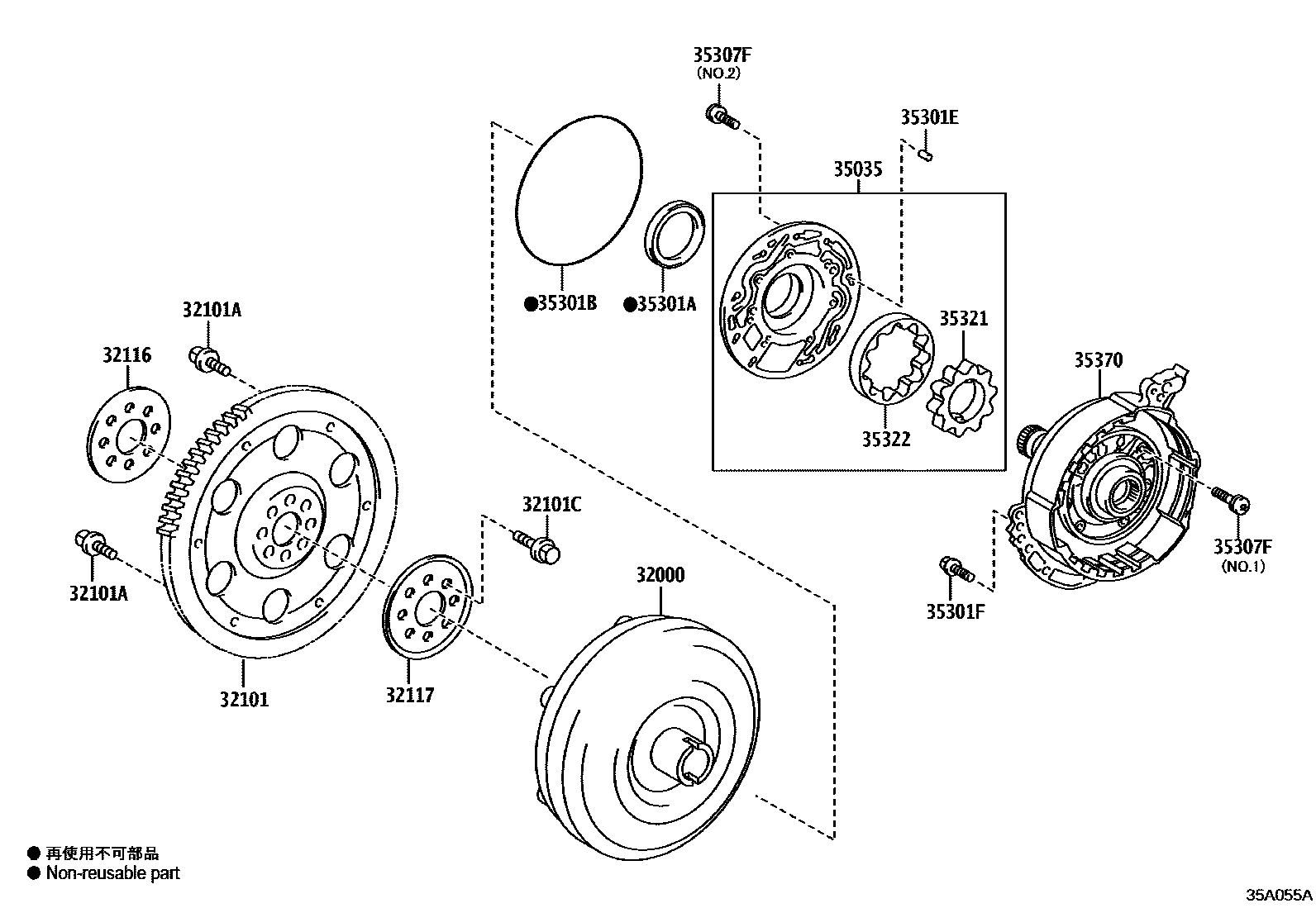

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
(L)AISIN:REFER35-01
AISIN AW:REFER 35-01
(J)AISIN:REFER35-01
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-7.3,(J),BLACK
*9-1.25PX12.4-7.3,BLACK,(J),BLACK
*9-1.25PX12.4-8.4,(J),SILVER WHITE
*9-1.25PX12.4-8.4,SILVER WHITE,(J),SILVER WHITE
*9-1.25PX12.4-8.4,SILVER WHITE
*9-1.25PX12.4-8.4,(L),SILVER WHITE
*9-1.25PX12.4-7.3,(L),BLACK
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*12-1.25PX21-15
*12-1.25PX20.3-14.3
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
(L)
(L)
(J)
(J)
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX35-22
35307FBOLT (FOR STATOR SHAFT)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35321GEAR, FRONT OIL PUMP DRIVE
T=11.567,MARK A
T=11.567,MARK B
T=11.567,MARK C
T=11.567,MARK D
T=16.66
35322GEAR, FRONT OIL PUMP DRIVEN
T=11.567,MARK A
T=11.567,MARK B
T=11.567,MARK C
T=11.567,MARK D
T=16.66
35370SHAFT ASSY, STATOR
AISIN AW:REFER 35-01
