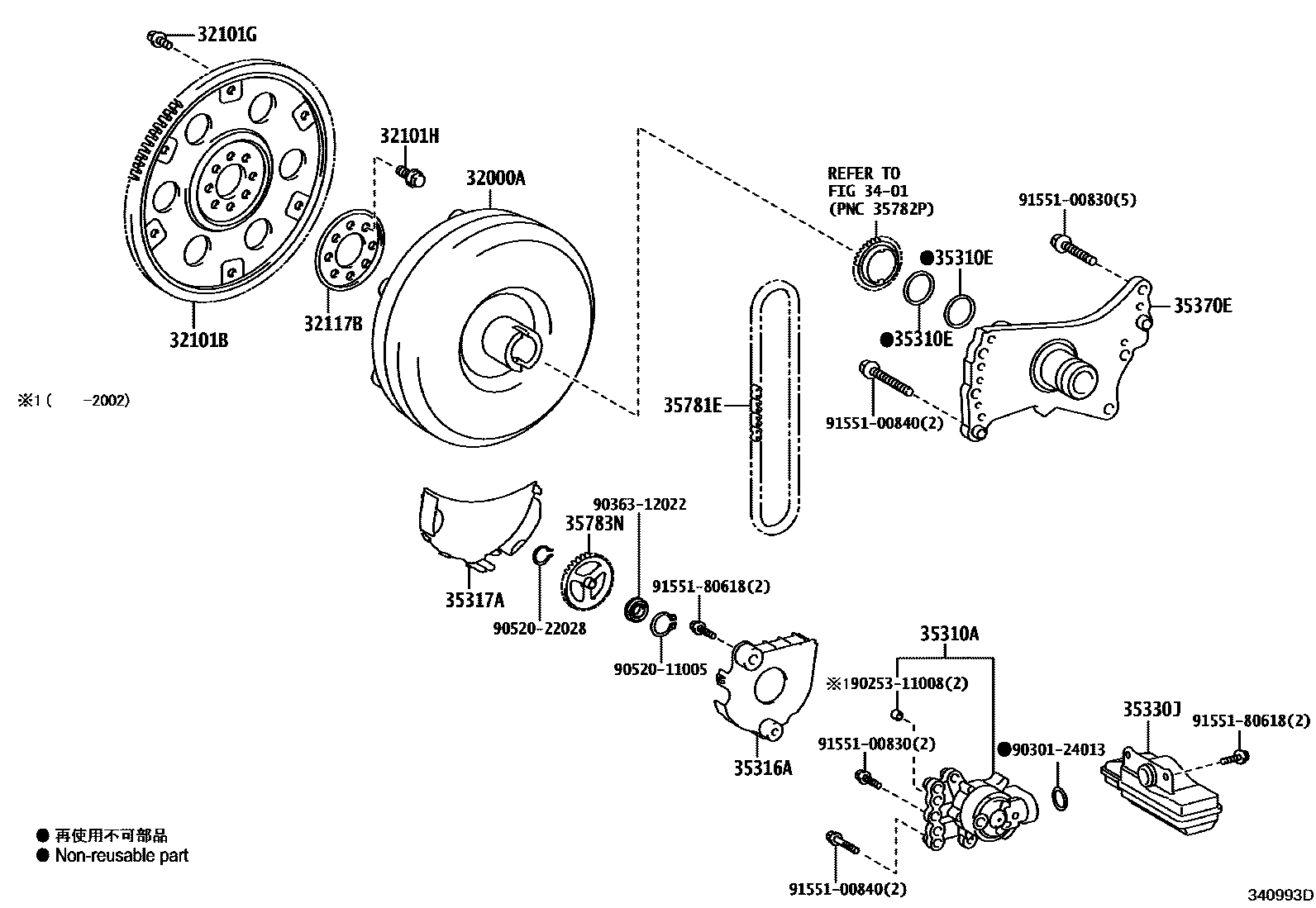

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12460iMXVA71¥74,000201903-202103

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0R020iMXVA71202103

main32101-0R020iMXVA71201903-202102

(L)

main32101-12120iMXVA71¥13,400201903-202102

ENGINE-UNLEADED GASOLINE(M20C)

main32101-12120iMXVA71¥13,400201903-202102

(J)

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMXVA71¥80201903-202102

*9-1.25PX12.4-7.3,BLACK

main90119-09025iMXVA71¥80201903-202102

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMXVA71¥100201903-202102

32117BSPACER, DRIVE PLATE, REAR

main32117-0R010iMXVA71202103

main32117-0R010iMXVA71201903-202102

(L)

main32117-33010iMXVA71¥920201903-202102

ENGINE-UNLEADED GASOLINE(M20C)

main32117-33010iMXVA71¥920201903-202102

(J)

3401

35310APUMP ASSY, FRONT OIL

main35310-12200iMXVA71¥16,000201903-202304

main35310-33170iMXVA71202304-202311

sub35310-42010

main35310-42010iMXVA71202311

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12070iMXVA71¥160201903-202103

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12020iMXVA71¥980201903-202103

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12020iMXVA71¥590201903-202103

35330JSTRAINER ASSY, OIL

main35330-12090iMXVA71¥3,580201903-202304

main35330-28040iMXVA71¥3,580202304

35370ESHAFT ASSY, STATOR (CVT)

main35370-12130iMXVA71¥14,900201903-202103

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMXVA71¥5,100201903-202304

main35781-42010iMXVA71¥1,420202304

35783NSPROCKET, DRIVEN

main35783-12060iMXVA71¥1,310201903-202103

9025311008

main90253-11008¥70

9030124013

main90301-24013¥140

9036312022

main90363-12022¥640

9052011005

main90520-11005¥70

9052022028

main90520-22028¥90

9155100830

main91551-00830¥80

9155100840

main91551-00840¥80

9155180618

main91551-80618¥60

22 parts on this diagram · 1 diagram in section
