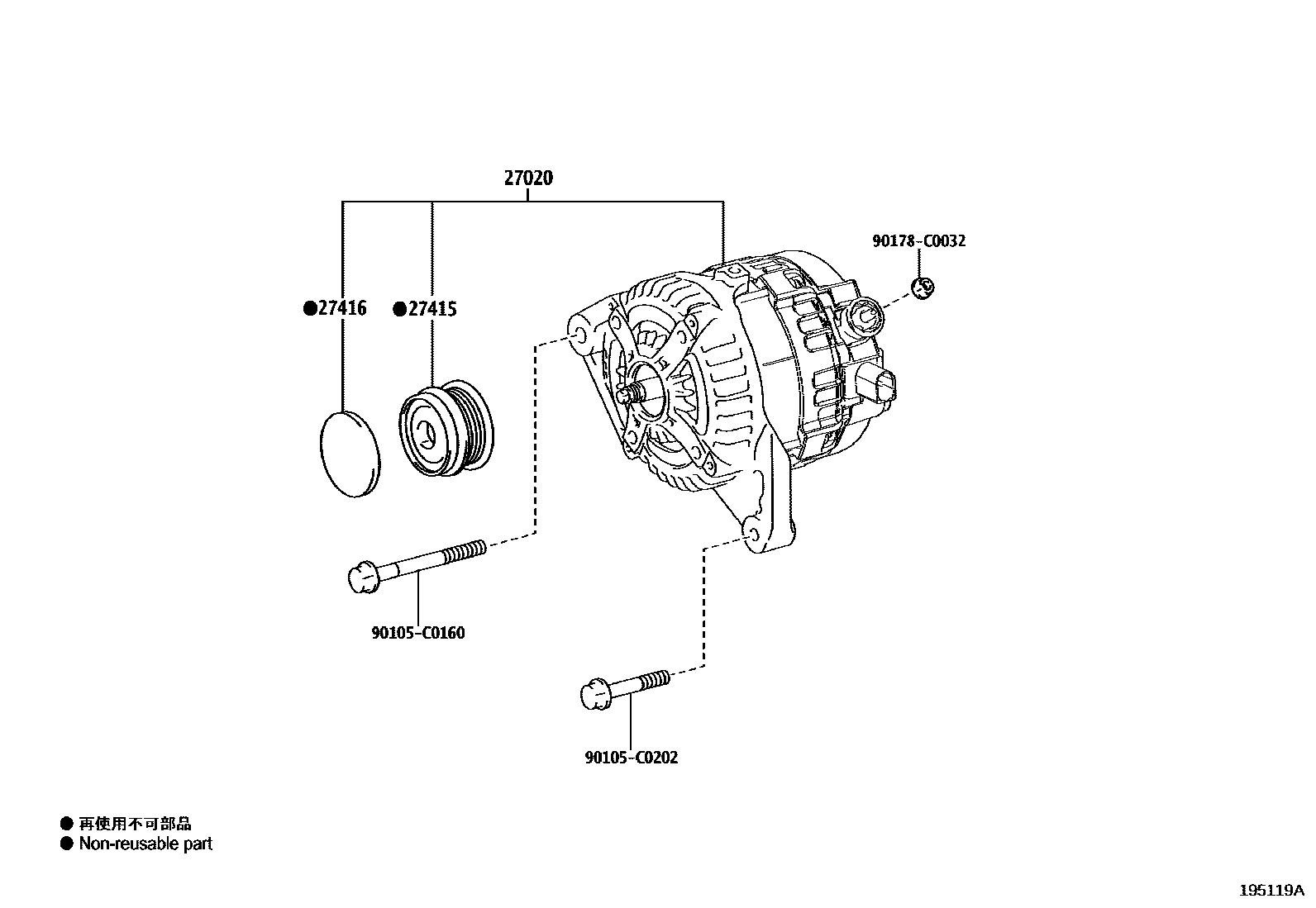

ALTERNATOR

0001 112V 150A 0002 112V 150A

27020ALTERNATOR ASSY

main27060-0V320i6ARFSE..ASV71201712-201902

12V 150A

main27060-F0030iA25AFKS,M20CFKS..AXVA70,MXVA71201712-202103

12V 150A

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0V050i6ARFSE..ASV71201712-201902

main27415-F0020iA25AFKS,M20CFKS..AXVA70,MXVA71201712-202103

27416CAP, ALTERNATOR PULLEY

main27416-0W050iM20CFKS..MXVA71201712-202304

main27416-F0010iM20CFKS..MXVA71202107

90105C0160

main90105-C0160

90105C0202

main90105-C0202

90178C0032

main90178-C0032

6 parts on this diagram · 2 diagrams in section
