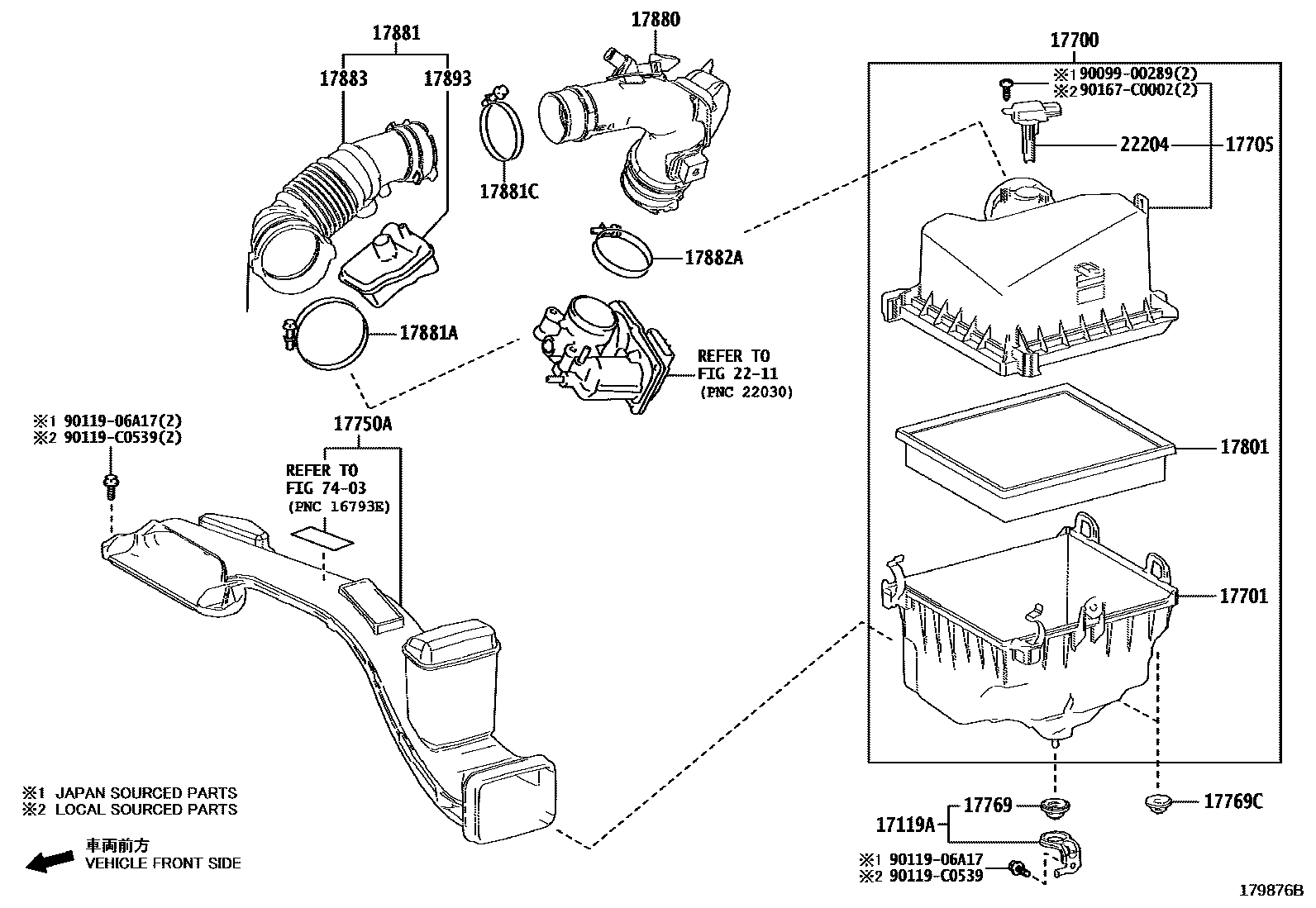

AIR CLEANER
17119ABRACKET, AIR CLEANER
17700CLEANER ASSY, AIR
sub17700-F0081
sub17700-F0101
EXHAUST EMISSION CONTROL-CHINA 6
EXHAUST EMISSION CONTROL-CHINA 6
EXHAUST EMISSION CONTROL-CHINA 6
sub17700-F0261
17701CASE SUB-ASSY, AIR CLEANER
MARK=17785-25020
sub17701-F0031
sub17701-F0041
sub17701-F0151
MARK=17301-F0010
17705CAP SUB-ASSY, AIR CLEANER
EXHAUST EMISSION CONTROL-CHINA 6
EXHAUST EMISSION CONTROL-CHINA 6
17750AINLET ASSY, AIR CLEANER
17769SUPPORT, AIR CLEANER
EXHAUST EMISSION CONTROL-CHINA 6
17769CSUPPORT, AIR CLEANER, NO.1
EXHAUST EMISSION CONTROL-CHINA 6
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(J)
(J)
(L)
(L)
17880HOSE ASSY, AIR CLEANER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17883HOSE, AIR CLEANER, NO.3
17893RESONATOR, INTAKE AIR
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
7403
9009900289
main90099-00289
9011906A17
main90119-06A17
90119C0539
main90119-C0539
90167C0002
main90167-C0002
22 parts on this diagram · 5 diagrams in section
