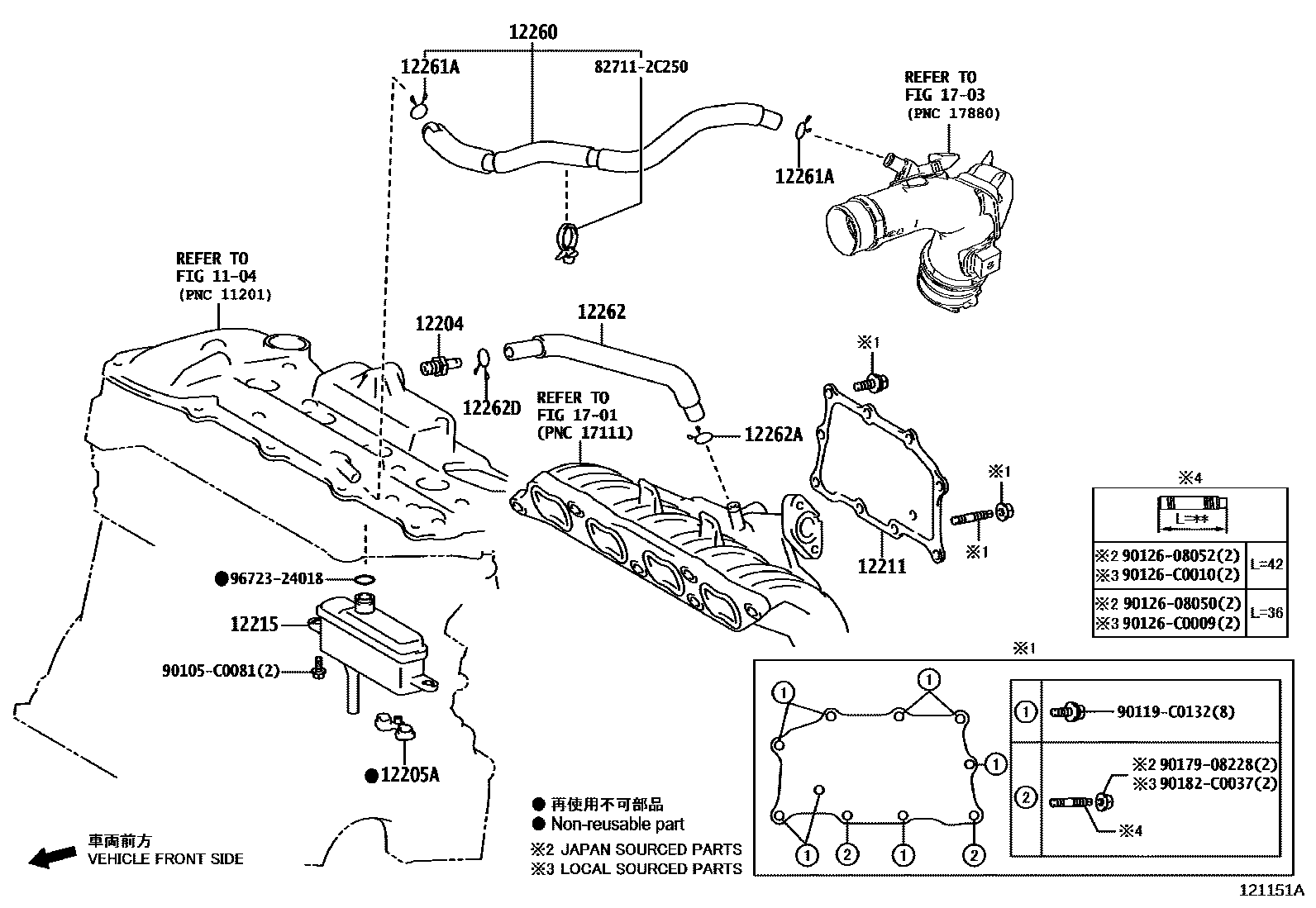

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

1104

12204VALVE SUB-ASSY, VENTILATION

main12204-0V030i6ARFSE..ASV71201712-201902

12205ARING, O(FOR VENTILATION CASE)

main12273-0V030i6ARFSE..ASV71201712-201902

12211CASE, VENTILATION, NO.1

main12211-0V030i6ARFSE..ASV71201712-201902

main12211-24010iM20CFKS..MXVA71201903-202103

ENGINE-UNLEADED GASOLINE(M20C)

main12211-25010iA25#..AXVA70,AXVH71201712-202007

sub12211-25011

main12211-25011iA25#..AXVA70,AXVH71202103

*636

main12211-25011iA25#..AXVA70,AXVH71202008-202103

main12211-F0020iA25#..AXVA70,AXVH71202103

*634

main12211-F2030iM20CFKS..MXVA71201907-202103

12215SEPARATOR, CASE

main12215-0V030i6ARFSE..ASV71201712-201902

12260HOSE ASSY, VENTILATION

main12260-0V220i6ARFSE..ASV71201712-201902

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-21004i6ARFSE..ASV71201712-201902

12262HOSE, VENTILATION, NO.2

main12262-24060iM20CFKS..MXVA71201903-202103

main12262-25030iA25AFKS..AXVA70201712-202103

main12262-25040iA25BFXS..AXVH71201712-202103

main12262-36100i6ARFSE..ASV71201712-201902

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-17126i6ARFSE..ASV71201712-201902

main90467-21004iA25#..AXVA70,AXVH71201712-202103

12262DCLIP(FOR VENTILATION HOSE NO.2)

main90467-15120i6ARFSE..ASV71201712-201902

1701

1703

827112C250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C250

90105C0081

main90105-C0081

90119C0132

main90119-C0132

9012608050

main90126-08050

9012608052

main90126-08052

90126C0009

main90126-C0009

90126C0010

main90126-C0010

9017908228

main90179-08228

90182C0037

main90182-C0037

9672324018

main96723-24018

22 parts on this diagram · 4 diagrams in section
