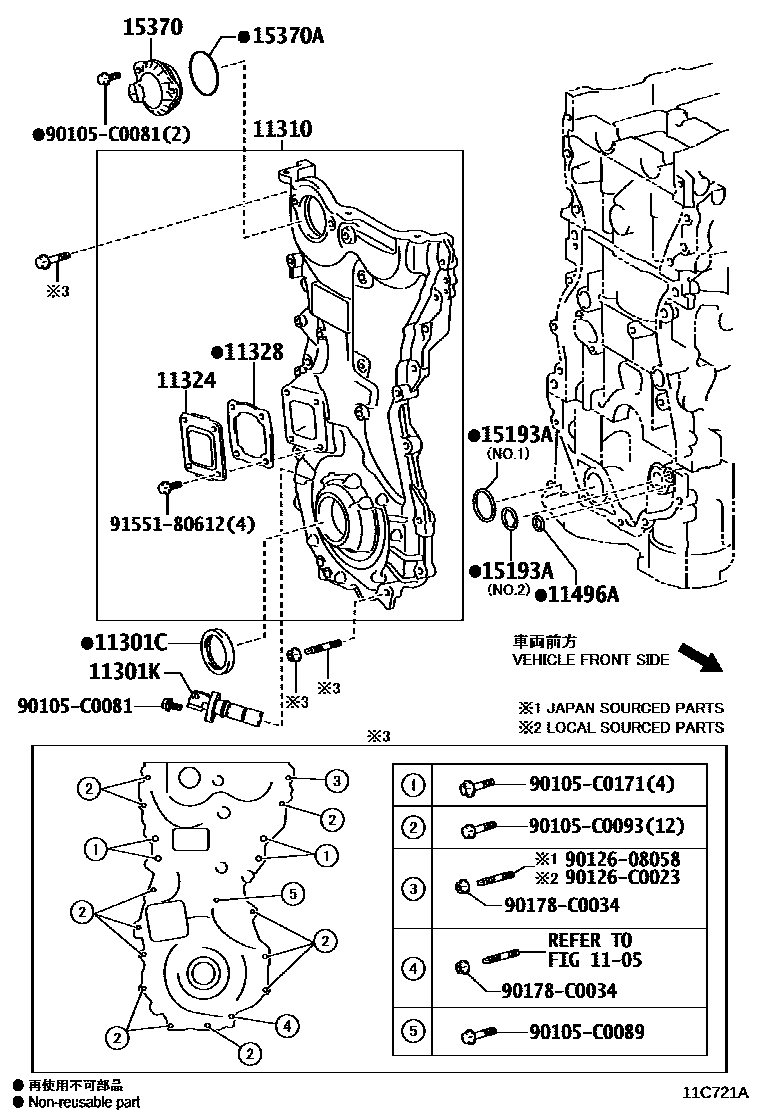

TIMING GEAR COVER & REAR END PLATE
1105
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
*636
*634
11301KSENSOR, CRANK POSITION
11310COVER ASSY, TIMING CHAIN
*636
*634
11324PLATE, TIMING CHAIN COVER
11328GASKET, TIMING GEAR OR CHAIN COVER
11496AGASKET, OIL HOLE COVER
15193AGASKET, OIL PUMP
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
*636,(J),*634
(J)
(L),*634
(L)
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
*634,*636
(J)
(J)
(L)
90105C0081
main90105-C0081
90105C0089
main90105-C0089
90105C0093
main90105-C0093
90105C0171
main90105-C0171
9012608058
main90126-08058
90126C0023
main90126-C0023
90178C0034
main90178-C0034
9155180612
main91551-80612
18 parts on this diagram · 4 diagrams in section
