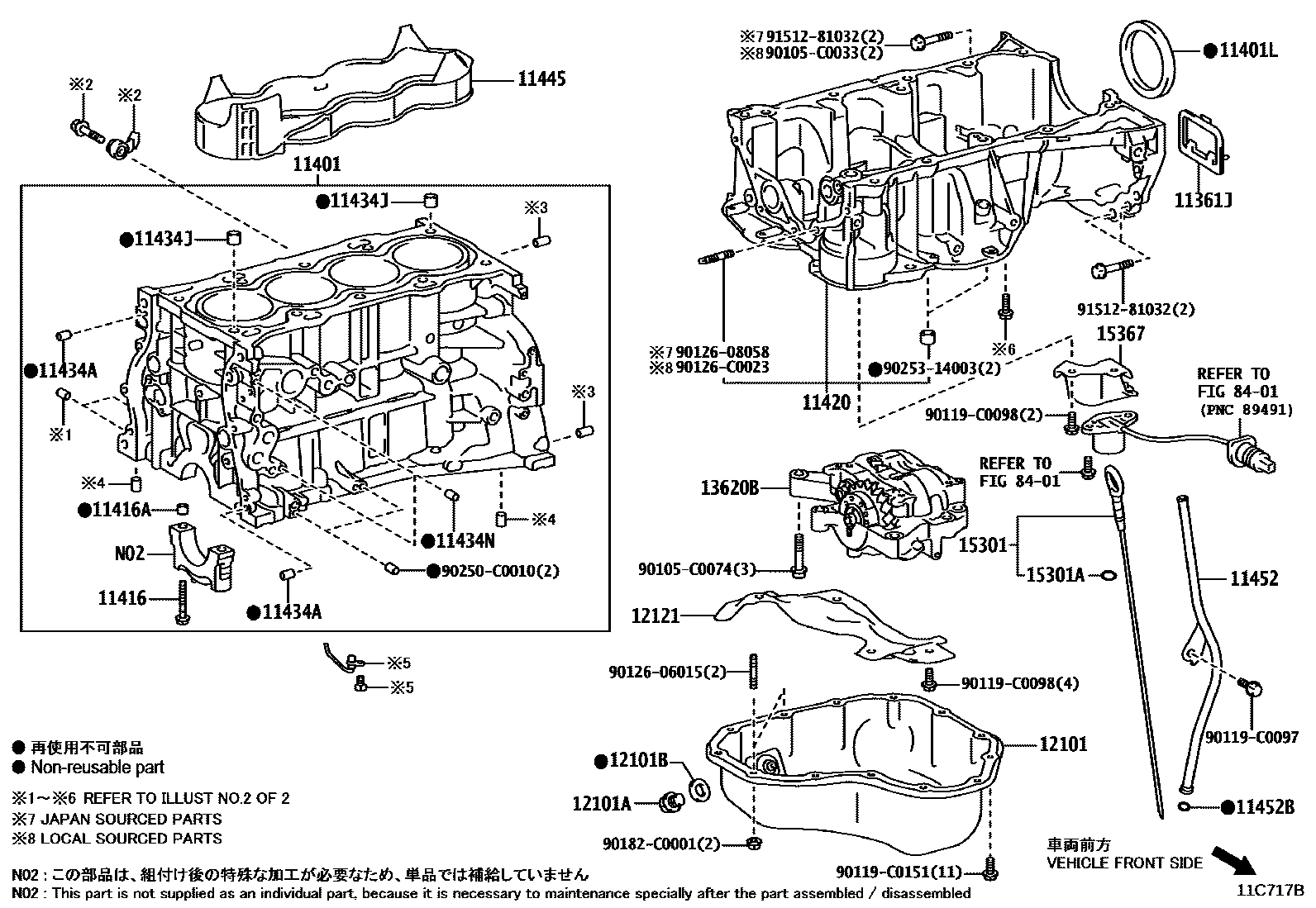

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(L)
(J)
ENGINE-UNLEADED GASOLINE(M20C)
(J)
(L)
11401BLOCK SUB-ASSY, CYLINDER
*636
PNC 15703A=TYPE B
PNC 15703A=TYPE B
*636
*634
*634
11401LSEAL, ENGINE REAR OIL
*636
*634
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J)
*634,*636
(L)
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
(J)
(L)
11420CRANKCASE ASSY, STIFFENING
(J)
*636
*634
(L)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6,*634T/P A:REF.ILLUST
L=14,OD=6
L=14,OD=6,*636
L=14,OD=6
L=14,OD=6,*634T/P B:REF.ILLUST
11434JPIN, RING (FOR CYLINDER HEAD SET)
*636
(J)
*634
(L)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
*636
*634T/P A:REF.ILLUST
*634T/P B:REF.ILLUST
11445SPACER, CYLINDER BLOCK WATER JACKET
*636
*634
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L),*634
*634
*636
(J),*634
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
*636
(J)
(L)
*634
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(J)
*636
(L)
*634
12121PLATE, OIL PAN BAFFLE, NO.1
13620BBALANCER ASSY, ENGINE
*636
*634
15301GAGE SUB-ASSY, OIL LEVEL
*636
*634
15301ARING, O(FOR OIL LEVEL GAGE)
(L),*634
*636,(J),*634
15367BRACKET, OIL LEVEL SENSOR
8401
90105C0033
main90105-C0033
90105C0074
main90105-C0074
90119C0097
main90119-C0097
90119C0098
main90119-C0098
90119C0151
main90119-C0151
9012606015
main90126-06015
9012608058
main90126-08058
90126C0023
main90126-C0023
90182C0001
main90182-C0001
90250C0010
main90250-C0010
9025314003
main90253-14003
9151281032
main91512-81032
33 parts on this diagram · 7 diagrams in section
