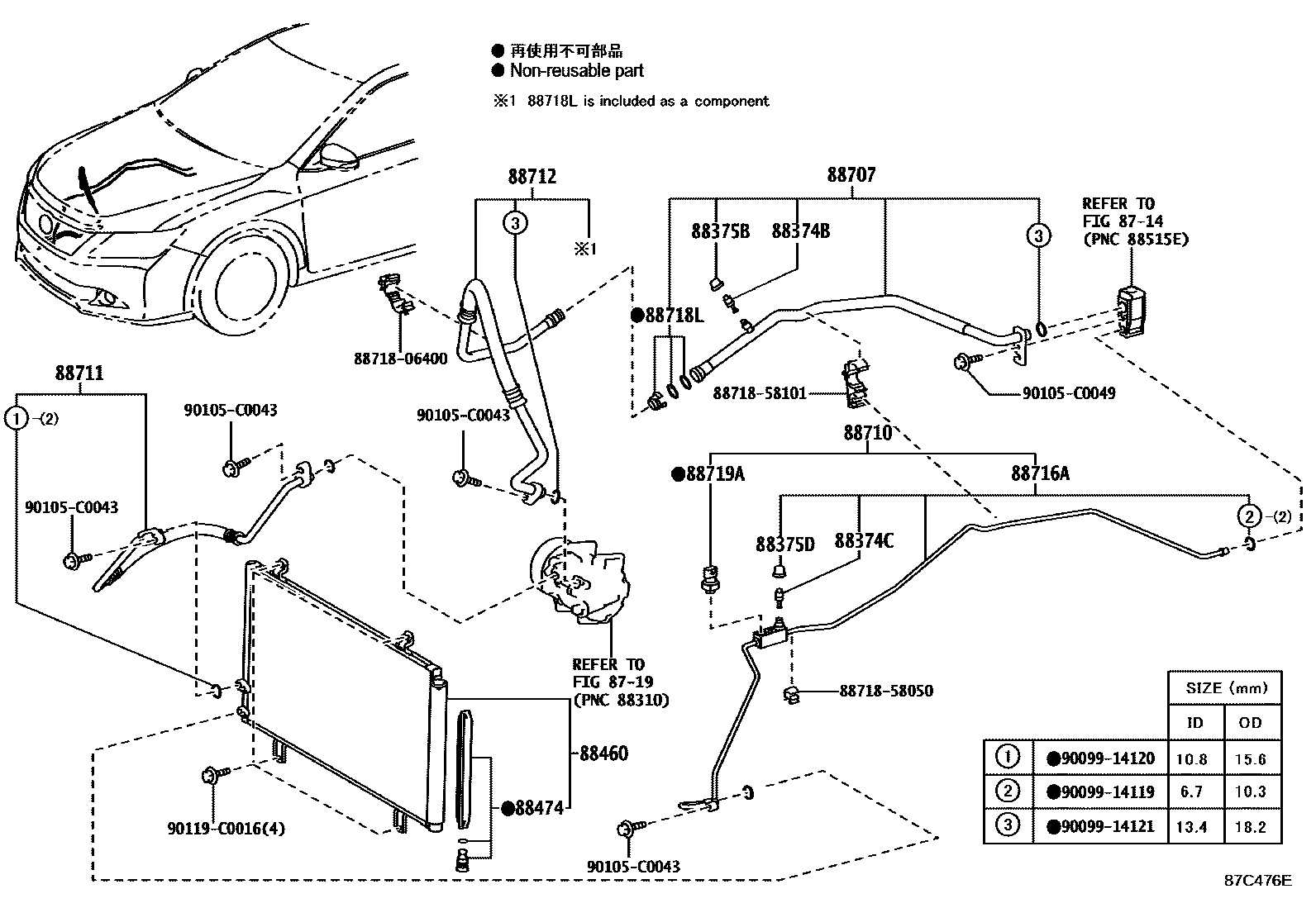

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iACV51,ASV50,AVV50201112-201501

88374CVALVE, SERVICE, NO.2

main88374-30010iACV51,ASV50,AVV50201112-201501

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iASV5#,AVV50201112-201501

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iACV51,ASV50,AVV50201112-201501

88460CONDENSER ASSY, COOLER

main88460-06250iACV51,ASV50201112-201501

main88460-33130iAVV50201205-201501

88474DRYER, COOLER

main88474-17010iASV5#201112-201501

main88474-47020iAVV50201205-201501

88707PIPE SUB-ASSY, SUCTION

main88707-06140iASV5#201112-201501

main88707-06150iAVV50201205-201501

88710TUBE ASSY, AIR CONDITIONER

main88710-06380iACV51,ASV50201112-201501

main88710-06390iAVV50201205-201501

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06480iASV5#201112-201501

main88711-06490iACV51201112-201501

main88711-06500iAVV50201205-201501

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-06280iASV50201112-201501

main88712-06290iACV51201112-201501

main88712-06300iAVV50201205-201501

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-06510iACV51,ASV50201112-201501

main88716-06520iAVV50201205-201501

88718LCLAMP, PIPING

main88718-52280iACV51,ASV50,AVV50201112-201501

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iACV51,ASV50,AVV50201112-201501

8871806400PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06400

8871858050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-58050

8871858101PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-58101

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

90105C0043

main90105-C0043

90105C0049

main90105-C0049

90119C0016

main90119-C0016

24 parts on this diagram · 4 diagrams in section
