HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL(FRONT) 0002 1HEATER CONTROL PANEL(FRONT) 0003 1HEATER CONTROL PANEL(REAR) 0004 1AIR DUCT 0005 1SENSOR

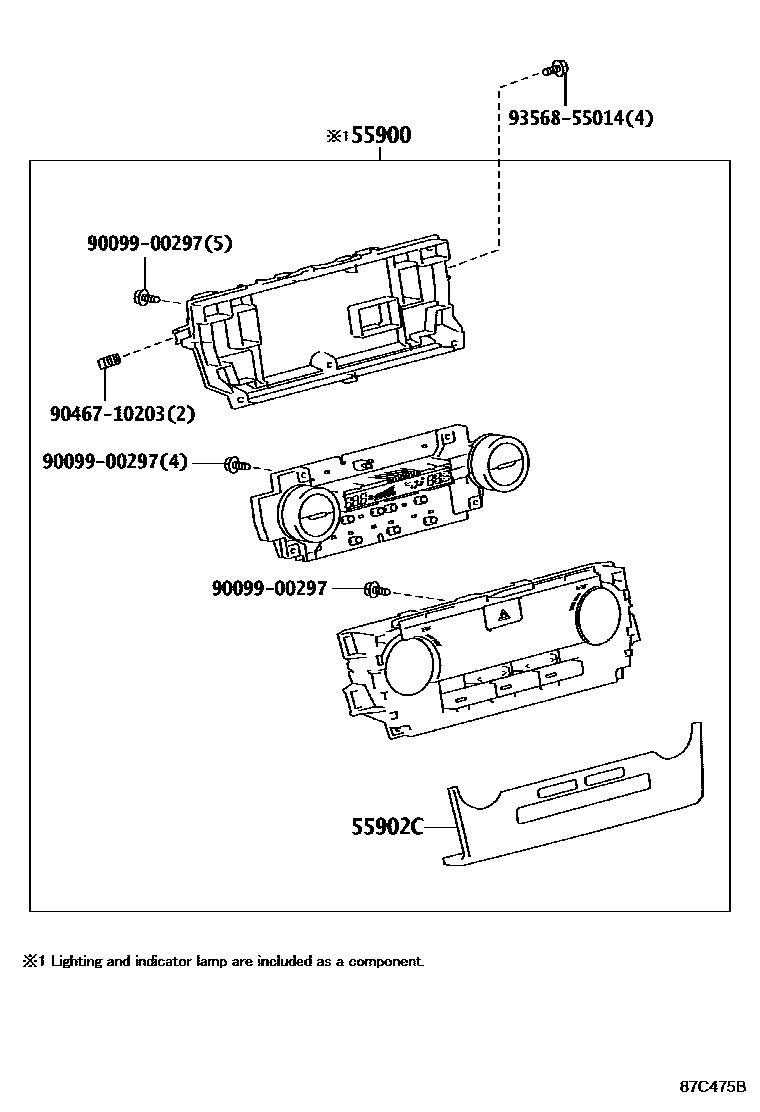

55900CONTROL ASSY, AIR CONDITIONER

main55900-06400iASV50..25G,25S201501-201711

main55900-06420iACV51,ASV50,AVV50201112-201501

main55900-06460iAVV50201501-201603

G GRADE

main55900-06460iASV51201501-201711

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-06270iACV51,ASV50,AVV50201112-201501

9009900297

main90099-00297

9046710203

main90467-10203

9356855014

main93568-55014

5 parts on this diagram · 5 diagrams in section
