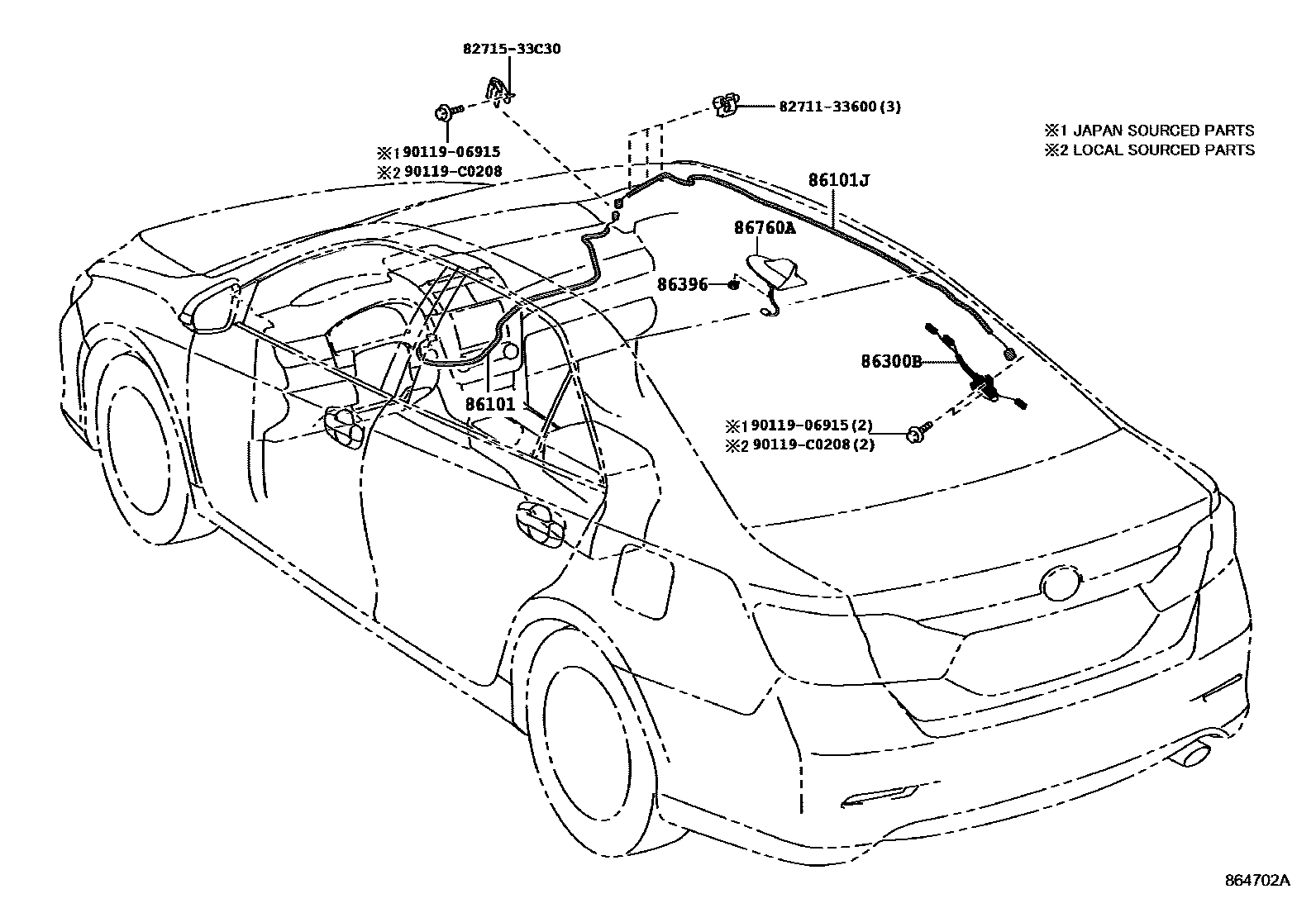

ANTENNA
86101CORD SUB-ASSY, ANTENNA
ECONOMY GRADE
86101JCORD SUB-ASSY, ANTENNA, NO.2
ECONOMY GRADE
86300BANTENNA ASSY, AMPLIFIER, NO.1
86396NUT, ANTENNA
E GRADE
G GRADE
CHINA Q GRADE
86760AANTENNA ASSY, TELEPHONE
G GRADE,WHITE PEARL CS.,070
WHITE PEARL CS.,070
E GRADE,WHITE PEARL CS.,070
CHINA Q GRADE,WHITE PEARL CS.,070
SILVER ME.,1D4
E GRADE,SILVER ME.,1D4
G GRADE,SILVER ME.,1D4
CHINA Q GRADE,SILVER ME.,1D4
CHINA Q GRADE,GRAY ME.,1G3
G GRADE,GRAY M.M.,1H1
GRAY M.M.,1H1
E GRADE,GRAY M.M.,1H1
E GRADE,ATTITUDE BLACK MC.,218
CHINA Q GRADE,ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218
G GRADE,ATTITUDE BLACK MC.,218
G GRADE,BLACK MC.,209
BLACK MC.,209
E GRADE,BLACK MC.,209
CHINA Q GRADE,RED M.M.,3R3
RED MC.,3T3
G GRADE,RED MC.,3T3
E GRADE,RED MC.,3T3
CHINA Q GRADE,BEIGE ME.,4T8
E GRADE,DK. BROWN M.M.,4U3
DK. BROWN M.M.,4U3
G GRADE,DK. BROWN M.M.,4U3
CHINA Q GRADE,LIGHT BLUE MICA METALLIC,8U8
CHINA Q GRADE,TRUE BLUE M.M.,8W1
G GRADE,GRAYISH BLUE M.M.,8V5
GRAYISH BLUE M.M.,8V5
E GRADE,GRAYISH BLUE M.M.,8V5
8271133600WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33600
8271533C30BRACKET,WIRING HARNESS CLAMP
main82715-33C30
9011906915
main90119-06915
90119C0208
main90119-C0208
9 parts on this diagram · 1 diagram in section
