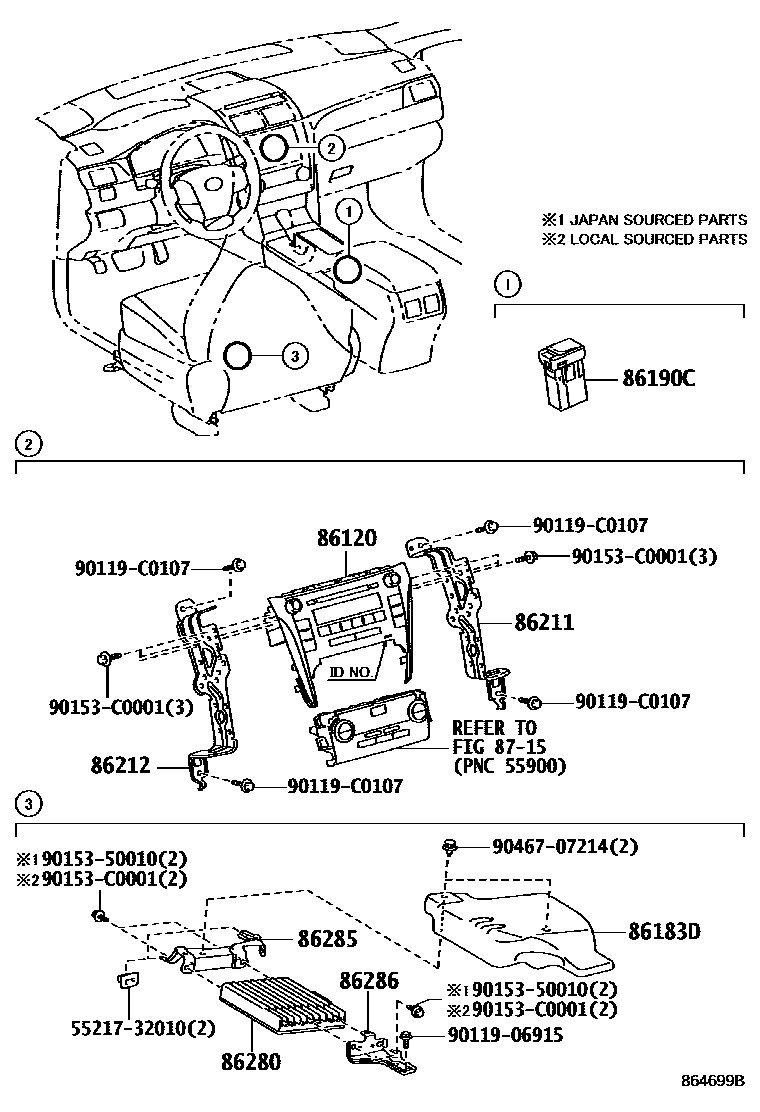

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER & AMPLIFIER 0002 1RECEIVER & AMPLIFIER 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-06810iACV51201112-201501

PIONEER,ID=P10113

main86120-06810iACV51201112-201501

PIONEER,ID=P10113,AUDIO-CD & 6SPEAKER

main86120-06890iASV51201501

PIONEER,ID=P10733

main86120-06890iASV51201501

PIONEER,ID=P10733,ECONOMY GRADE

86183DCOVER, AUDIO AMPLIFIER

main86183-06040iASV50,AVV50..25V,HBD201501

G GRADE

main86183-06040iASV50,AVV50..25V,HBD201501

E GRADE

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-06040iACV51,ASV50,AVV50201207-201501

main86190-06040iASV5#,AVV50201501

ECONOMY GRADE

main86190-33040iACV51,ASV50,AVV50201112-201206

86211BRACKET, RADIO, NO.1

main86211-06120iACV51,ASV50,AVV50..20S,25G,25S,HBD,STD201112-201501

main86211-06130iASV50..25V201112-201501

AUDIO-AVN & 6SPEAKER

main86211-06220iASV5#,AVV50201501-201711

86212BRACKET, RADIO, NO.2

main86212-06120iACV51,ASV50,AVV50..20S,25G,25S,HBD,STD201112-201501

main86212-06130iASV50..25V201112-201501

AUDIO-AVN & 6SPEAKER

main86212-06220iASV5#,AVV50201501-201711

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-06140iASV50,AVV50..25V,HBD201501

G GRADE

main86280-06140iASV50,AVV50..25V,HBD201501

E GRADE

86285BRACKET, AMPLIFIER, NO.1

main86285-06050iASV50,AVV50..25V,HBD201501

G GRADE

main86285-06050iASV50,AVV50..25V,HBD201501

E GRADE

86286BRACKET, AMPLIFIER, NO.2

main86286-06030iASV50,AVV50..25V,HBD201501

G GRADE

main86286-06030iASV50,AVV50..25V,HBD201501

E GRADE

8715

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010

9011906915

main90119-06915

90119C0107

main90119-C0107

9015350010

main90153-50010

90153C0001

main90153-C0001

9046707214

main90467-07214

15 parts on this diagram · 3 diagrams in section
