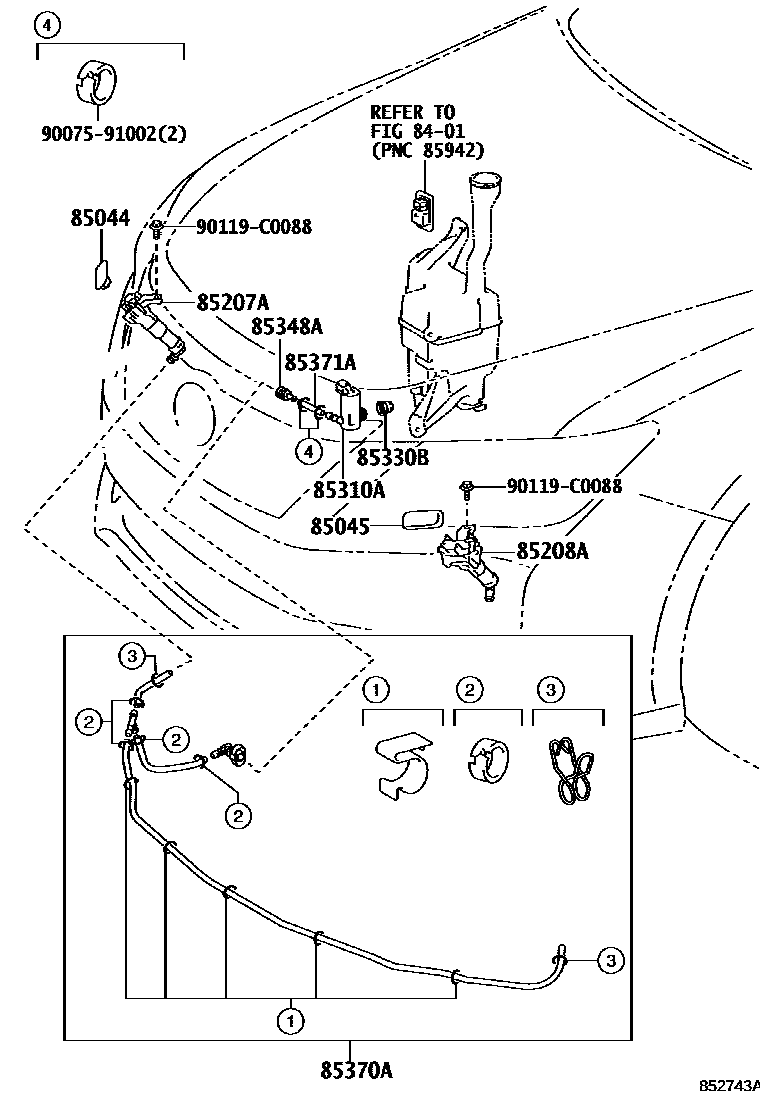

HEADLAMP CLEANER

0001 1 0002 1

8401

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85044-06020-A0iASV50,AVV50..25G,25V,HBD201112-201501

WHITE PEARL CS.,070

main85044-06020-A0iACV51..STD201112-201501

CHINA G GRADE,WHITE PEARL CS.,070

main85044-06020-B0iASV50,AVV50..25G,25V,HBD201112-201501

SILVER ME.,1D4

main85044-06020-B0iACV51..STD201112-201501

CHINA G GRADE,SILVER ME.,1D4

main85044-06020-B1iACV51..STD201112-201501

CHINA G GRADE,GRAY ME.,1G3

main85044-06020-B1iACV51..STD201112-201501

GRAY ME.,1G3

main85044-06020-C0iACV51..STD201112-201501

CHINA G GRADE,ATTITUDE BLACK MC.,218

main85044-06020-C0iACV51..STD201112-201501

ATTITUDE BLACK MC.,218

main85044-06020-D0iASV50,AVV50..25G,25V,HBD201309-201501

CHINA G GRADE,RED M.M.,3R3

main85044-06020-D0iASV50,AVV50..25G,25V,HBD201309-201501

RED M.M.,3R3

main85044-06020-E0iASV50,AVV50..25G,25V,HBD201112-201309

CHINA G GRADE,BEIGE ME.,4T8

main85044-06020-E0iASV50,AVV50..25G,25V,HBD201112-201309

BEIGE ME.,4T8

main85044-06020-J0iAVV50201205-201501

LIGHT BLUE MICA METALLIC,8U8

main85044-06020-J1iASV50,AVV50..25G,25V,HBD201112-201501

TRUE BLUE M.M.,8W1

main85044-06020-J1iASV50,AVV50..25G,25V,HBD201112-201501

CHINA G GRADE,TRUE BLUE M.M.,8W1

main85044-06050-A0iASV50,AVV50..25V,HBD201501-201711

WHITE PEARL CS.,070

main85044-06050-A0iAVV50201501-201711

G GRADE,WHITE PEARL CS.,070

main85044-06050-B1iASV51..20E201501-201711

G GRADE,GRAY M.M.,1H1

main85044-06050-B1iASV50,AVV50..25V,HBD201501-201711

GRAY M.M.,1H1

main85044-06050-B2iAVV50201501-201711

G GRADE,SILVER ME.,1D4

main85044-06050-B2iASV51..20E201501-201711

SILVER ME.,1D4

main85044-06050-C0iASV51..20E201501-201603

ATTITUDE BLACK MC.,218

main85044-06050-C0iASV51..20E201501-201603

G GRADE,ATTITUDE BLACK MC.,218

main85044-06050-C1iASV50..25G201603-201711

G GRADE,BLACK MC.,209

main85044-06050-C1iASV50..25G201603-201711

BLACK MC.,209

main85044-06050-D0iAVV50201501-201711

G GRADE,RED MC.,3T3

main85044-06050-D0iASV51..20E201501-201711

RED MC.,3T3

main85044-06050-E0iASV50..25G201603-201711

DK. BROWN M.M.,4U3

main85044-06050-E0iASV50..25G201603-201711

G GRADE,DK. BROWN M.M.,4U3

main85044-06050-J0iASV50..25G201501-201711

GRAYISH BLUE M.M.,8V5

main85044-06050-J0iASV51..20E201501-201711

G GRADE,GRAYISH BLUE M.M.,8V5

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85045-06020-A0iASV50..25G201112-201501

CHINA G GRADE,WHITE PEARL CS.,070

main85045-06020-A0iASV50,AVV50..25G,25V,HBD201112-201501

WHITE PEARL CS.,070

main85045-06020-A0iASV50,AVV50..25G,25V,HBD201112-201501

VALUE PACKAGE,WHITE PEARL CS.,070

main85045-06020-B0iASV50,AVV50..25G,25V,HBD201112-201501

SILVER ME.,1D4

main85045-06020-B0iASV50..25G201112-201501

VALUE PACKAGE,SILVER ME.,1D4

main85045-06020-B0iASV50..25G201112-201501

CHINA G GRADE,SILVER ME.,1D4

main85045-06020-B1iASV50..25G201112-201501

VALUE PACKAGE,GRAY ME.,1G3

main85045-06020-B1iASV50,AVV50..25G,25V,HBD201112-201501

GRAY ME.,1G3

main85045-06020-B1iASV50,AVV50..25G,25V,HBD201112-201501

CHINA G GRADE,GRAY ME.,1G3

main85045-06020-C0iASV50,AVV50..25G,25V,HBD201112-201501

ATTITUDE BLACK MC.,218

main85045-06020-C0iASV50..25G201112-201501

VALUE PACKAGE,ATTITUDE BLACK MC.,218

main85045-06020-C0iASV50..25G201112-201501

CHINA G GRADE,ATTITUDE BLACK MC.,218

main85045-06020-D0iASV50..25G201309-201501

VALUE PACKAGE,RED M.M.,3R3

main85045-06020-D0iASV50..25G201309-201501

RED M.M.,3R3

main85045-06020-D0iACV51..STD201309-201501

CHINA G GRADE,RED M.M.,3R3

main85045-06020-E0iASV50,AVV50..25G,25V,HBD201112-201309

BEIGE ME.,4T8

main85045-06020-E0iASV50..25G201112-201309

VALUE PACKAGE,BEIGE ME.,4T8

main85045-06020-E0iASV50,AVV50..25G,25V,HBD201112-201309

CHINA G GRADE,BEIGE ME.,4T8

main85045-06020-J0iAVV50201205-201501

LIGHT BLUE MICA METALLIC,8U8

main85045-06020-J1iACV51..STD201112-201501

VALUE PACKAGE,TRUE BLUE M.M.,8W1

main85045-06020-J1iASV50,AVV50..25G,25V,HBD201112-201501

TRUE BLUE M.M.,8W1

main85045-06020-J1iASV50,AVV50..25G,25V,HBD201112-201501

CHINA G GRADE,TRUE BLUE M.M.,8W1

main85045-06110-A0iASV50..25G201501-201711

G GRADE,WHITE PEARL CS.,070

main85045-06110-A0iASV51..20E201501-201711

WHITE PEARL CS.,070

main85045-06110-A0iAVV50201501-201603

E GRADE,WHITE PEARL CS.,070

main85045-06110-B1iAVV50201501-201603

E GRADE,GRAY M.M.,1H1

main85045-06110-B1iAVV50201501-201711

G GRADE,GRAY M.M.,1H1

main85045-06110-B1iASV51..20E201501-201711

GRAY M.M.,1H1

main85045-06110-B2iASV50..25G201501-201711

SILVER ME.,1D4

main85045-06110-B2iASV50..25G201501-201711

G GRADE,SILVER ME.,1D4

main85045-06110-B2iASV50,AVV50..25V,HBD201501-201603

E GRADE,SILVER ME.,1D4

main85045-06110-C0iAVV50201501-201603

ATTITUDE BLACK MC.,218

main85045-06110-C0iASV50,AVV50..25G,25V,HBD201501-201603

G GRADE,ATTITUDE BLACK MC.,218

main85045-06110-C0iASV50,AVV50..25G,25V,HBD201501-201603

E GRADE,ATTITUDE BLACK MC.,218

main85045-06110-C1iASV50..25G201603-201711

BLACK MC.,209

main85045-06110-C1iASV51,AVV50..20E,HBD201603-201711

G GRADE,BLACK MC.,209

main85045-06110-D0iASV50..25G201501-201711

G GRADE,RED MC.,3T3

main85045-06110-D0iASV51..20E201501-201711

RED MC.,3T3

main85045-06110-D0iASV50,AVV50..25V,HBD201501-201603

E GRADE,RED MC.,3T3

main85045-06110-E0iASV51,AVV50..20E,HBD201603-201711

DK. BROWN M.M.,4U3

main85045-06110-E0iASV50..25G201603-201711

G GRADE,DK. BROWN M.M.,4U3

main85045-06110-J0iASV50..25G201501-201711

GRAYISH BLUE M.M.,8V5

main85045-06110-J0iASV50,AVV50..25V,HBD201501-201603

E GRADE,GRAYISH BLUE M.M.,8V5

main85045-06110-J0iAVV50201501-201711

G GRADE,GRAYISH BLUE M.M.,8V5

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-06050iASV50,AVV50..25G,25V,HBD201112-201501

CHINA G GRADE

main85207-06050iASV50,AVV50..25G,25V,HBD201112-201501

VALUE PACKAGE

main85207-06080iASV50,AVV50..25V,HBD201501-201603

E GRADE

main85207-06080iASV50..25G201501-201711

G GRADE

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-06050iASV50,AVV50..25G,25V,HBD201112-201501

CHINA G GRADE

main85208-06050iASV50,AVV50..25G,25V,HBD201112-201501

VALUE PACKAGE

main85208-06080iASV50,AVV50..25V,HBD201501-201603

E GRADE

main85208-06080iASV50..25G201501-201711

G GRADE

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85280-33030iASV50,AVV50..25G,25V,HBD201112-201501

CHINA G GRADE

main85280-33030iASV50,AVV50..25V,HBD201501-201608

main85280-33030iASV50..25G201501-201711

G GRADE

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iASV50,AVV50..25G,25V,HBD201112-201501

CHINA G GRADE

main90099-32089iASV50,AVV50..25V,HBD201501-201608

main90099-32089iASV50..25G201501-201711

G GRADE

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17002iASV50,AVV50..25G,25V,HBD201112-201501

CHINA G GRADE

main90075-17012iASV50,AVV50..25V,HBD201501-201608

main90075-17012iASV50..25G201501

G GRADE

85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1

main85271-06050iASV50,AVV50..25G,25V,HBD201112-201501

CHINA G GRADE

main85271-06050iASV50,AVV50..25G,25V,HBD201112-201501

VALUE PACKAGE

main85271-06080iASV50,AVV50..25V,HBD201501-201603

E GRADE

main85271-06080iASV50..25G201501-201711

G GRADE

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main90075-15053iASV50,AVV50..25G,25V,HBD201112-201608

L=35

main90075-15053iASV50,AVV50..25G,25V,HBD201112-201501

L=35,CHINA G GRADE

main90075-15053iASV50..25G201501

L=35,G GRADE

9007591002

main90075-91002

90119C0088

main90119-C0088

12 parts on this diagram · 2 diagrams in section
