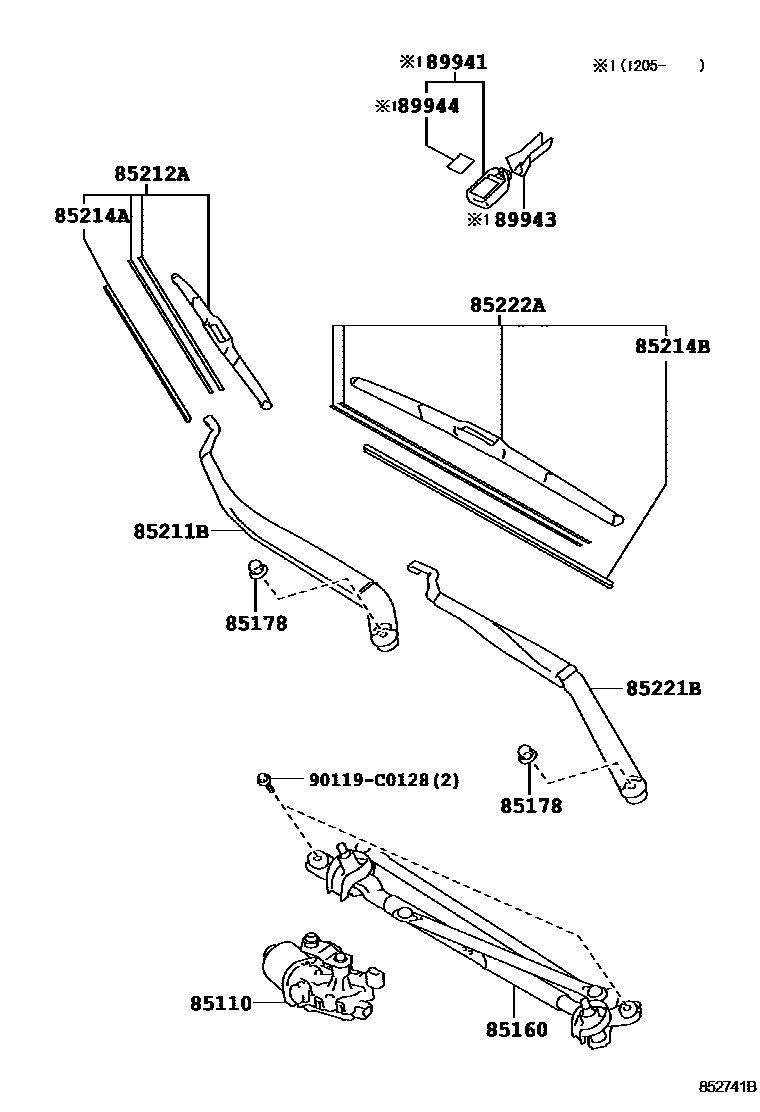

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-06150iASV5#,AVV50201112-201501

85160LINK ASSY, WINDSHIELD WIPER

main85150-06150iACV51,ASV50,AVV50201112-201501

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iACV51,ASV50,AVV50¥110201112-201501

85211BARM, FRONT WIPER, RH

main85211-06140iACV51,ASV50,AVV50201112-201501

85212ABLADE, FR WIPER, RH

main85212-06160iACV51,ASV50,AVV50201112-201501

85214ARUBBER, WIPER, RH

main85214-33180iACV51,ASV50,AVV50¥800201112-201501

85214BRUBBER, WIPER, LH

main85214-06190iACV51,ASV50,AVV50201306-201501

main85214-0E100iACV51,ASV50,AVV50201112-201305

85221BARM, FRONT WIPER, LH

main85221-06140iASV5#,AVV50201112-201501

85222ABLADE, FR WIPER, LH

main85222-06160iASV5#,AVV50201112-201501

89941SENSOR, RAIN

main89941-52010iAVV50¥12,500201501

G GRADE

main89941-52010iAVV50¥12,500201501

E GRADE

89943COVER, RAIN SENSOR

main89943-42010iAVV50¥1,680201501

G GRADE

main89943-42010iAVV50¥1,680201501

E GRADE

89944TAPE, RAIN SENSOR

main89944-42010iAVV50¥1,490201501

G GRADE

main89944-42010iAVV50¥1,490201501

E GRADE

90119C0128

main90119-C0128

13 parts on this diagram · 1 diagram in section
