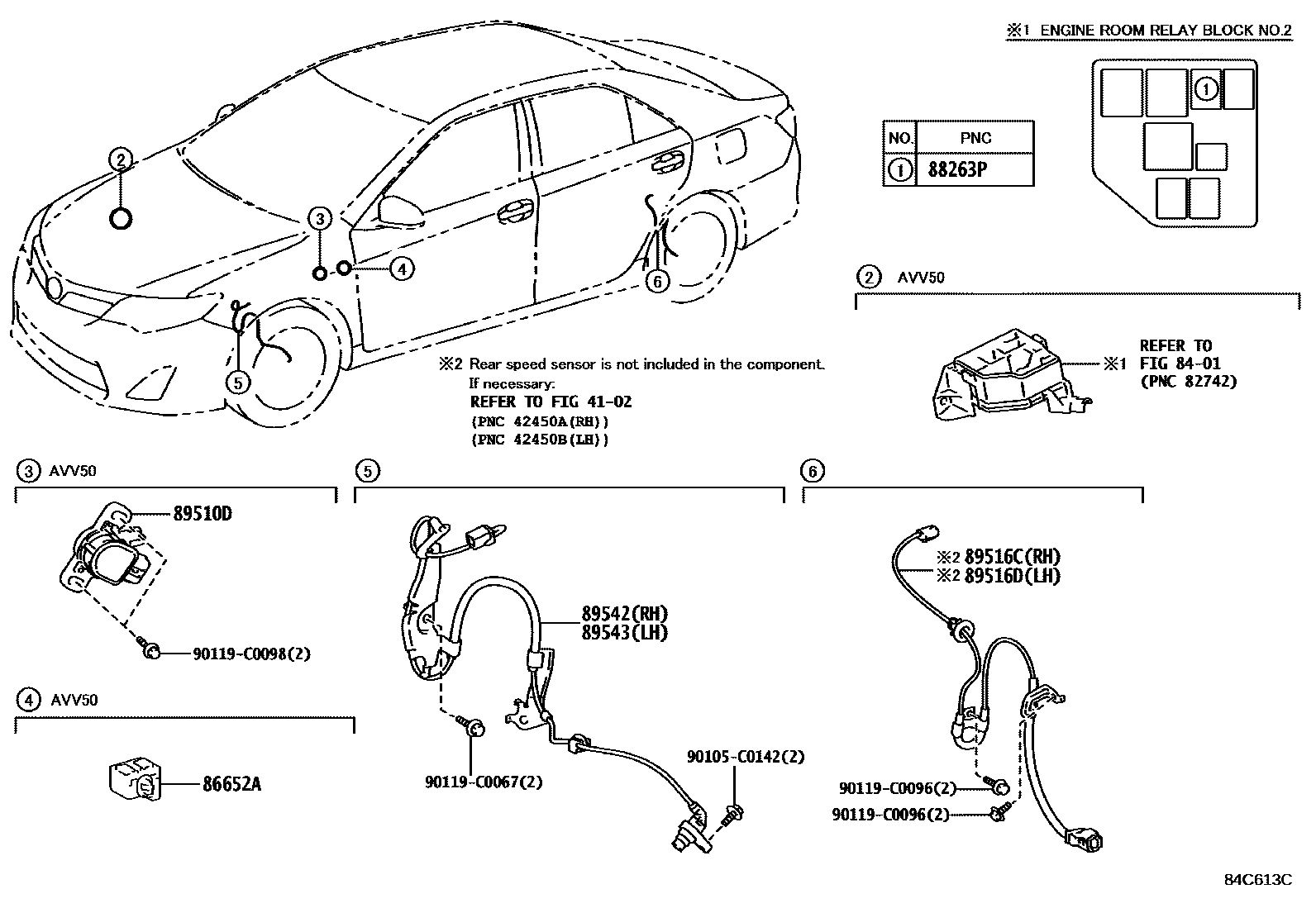

ABS & VSC

0001 1 0002 1

4102

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iASV50,AVV50..25V,HBD201501

G GRADE

main86652-50010iASV50,AVV50..25V,HBD201501

E GRADE

88263PRELAY, STOP LAMP CONTROL

main90987-T4001iAVV50201205-201501

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33030iAVV50201205-201711

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-06190iACV51,ASV50,AVV50201112-201501

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-06200iACV51,ASV50,AVV50201112-201501

89542SENSOR, SPEED, FRONT RH

main89542-06050iACV51,ASV50,AVV50201112-201501

sub89542-06060

main89542-06060iASV5#,AVV50201501

89543SENSOR, SPEED, FRONT LH

main89543-06050iACV51,ASV50,AVV50201112-201501

sub89543-06060

main89543-06060iASV5#,AVV50201501

90105C0142

main90105-C0142

90119C0067

main90119-C0067

90119C0096

main90119-C0096

90119C0098

main90119-C0098

13 parts on this diagram · 2 diagrams in section
