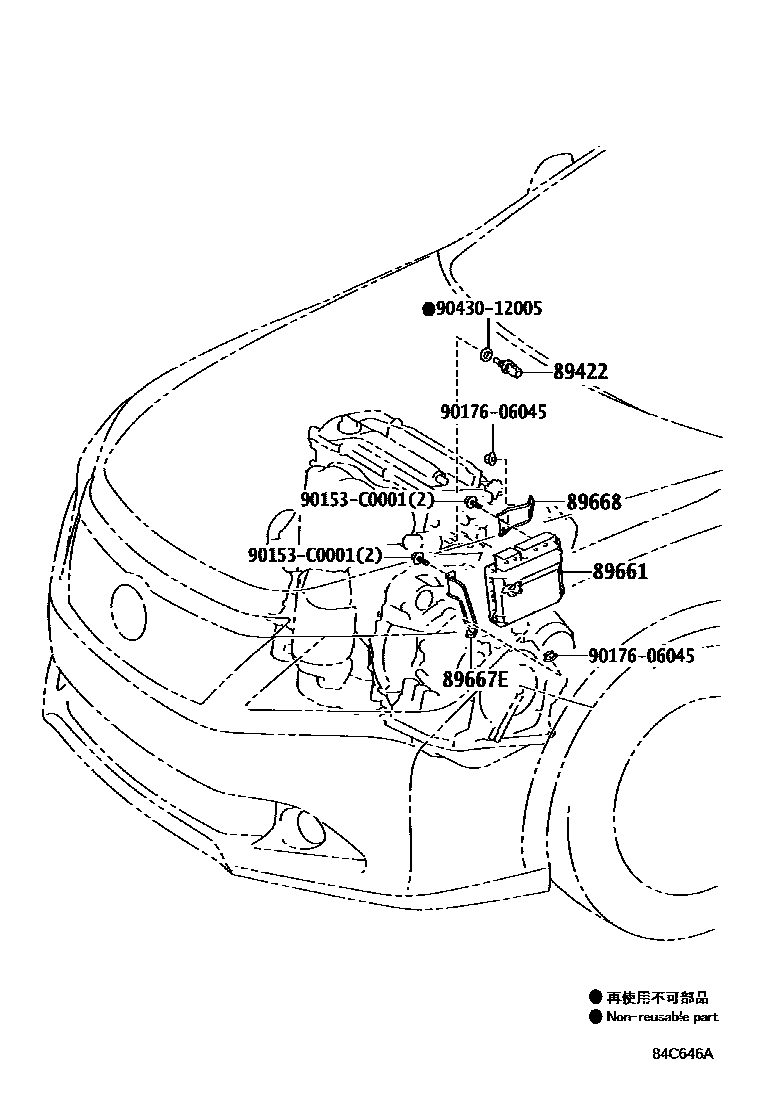

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iASV51,AVV50201205-201501

(L)

main89422-0D010iACV51,ASV50201112-201501

main89422-33030iAVV50201205-201501

(J)

89661COMPUTER, ENGINE CONTROL

main89661-06M10iAVV50201205-201406

main89661-06M20iACV51201112-201206

main89661-06M50iASV50..25G,25V201112-201206

sub89661-06M51

main89661-06M60iASV50..25S201112-201206

sub89661-06M61

main89661-06P10iACV51201206-201408

sub89661-06P11

main89661-06P20iASV50..25G,25V201206-201501

sub89661-06P21

main89661-06P30iASV50..25S201206-201501

sub89661-06P31

main89661-06V00iASV51201501-201608

main89661-06V30iASV50..25G,25V201501-201608

main89661-06V40iASV50..25S201501-201608

main89661-06V50iAVV50201501

main89661-06W60iACV51201408-201409

main89661-06W61iACV51201410-201501

main89661-06X20iAVV50201406-201501

main89661-0X330iASV50..25S201608

main89661-0X340iASV50..25G,25V201608

main89661-0X350iASV51201608

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-06130iACV51201112-201501

main89667-06150iASV51201501

main89667-06230iASV50,AVV50201112-201501

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06130iACV51201112-201501

main89668-06150iASV51201501

main89668-06230iASV50,AVV50201112-201501

90153C0001

main90153-C0001

9017606045

main90176-06045

9043012005

main90430-12005

7 parts on this diagram · 3 diagrams in section
