SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1COWL 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1STEERING 0015 1SEAT 0016 1DOOR,ROOF,FLOOR & LUGGAGE

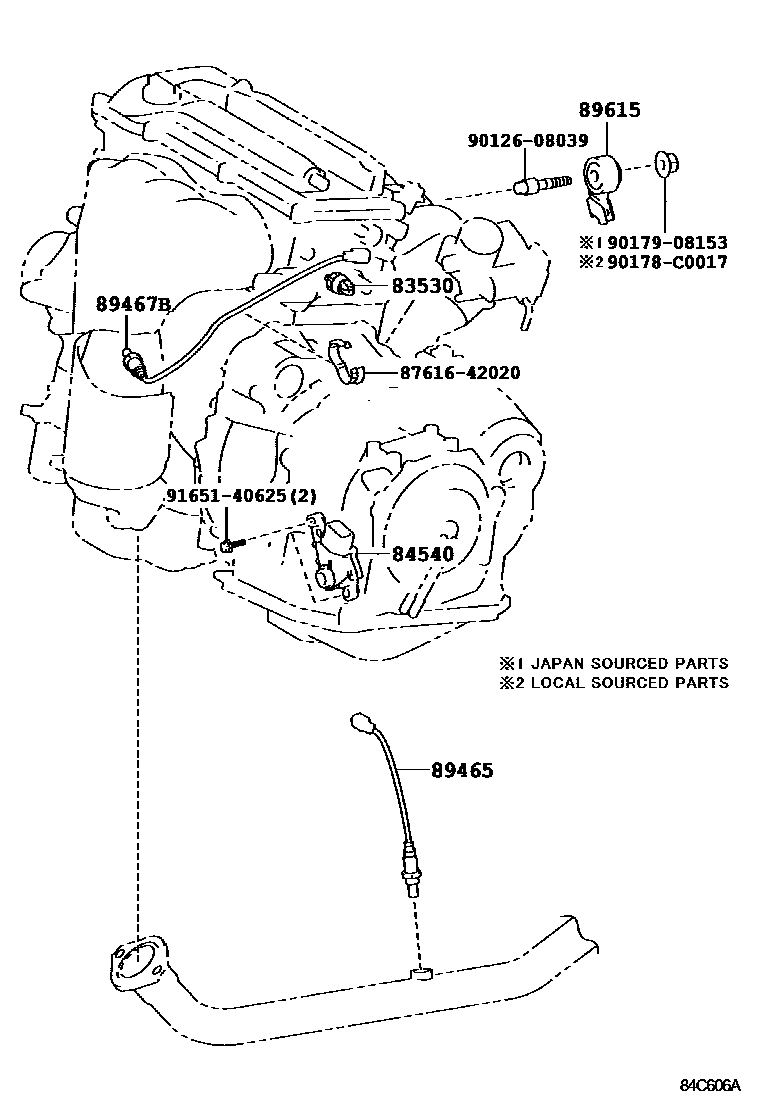

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACV51,ASV50,AVV50201112-201501

DENSO

main83530-60020iACV51,ASV50,AVV50201112-201501

YAZAKI

main83530-60020iASV50,AVV50201501

84540SWITCH ASSY, NEUTRAL START

main84540-33010iASV50201112-201711

main84540-48010iACV51201112-201501

89465SENSOR, OXYGEN

main89465-06240iACV51201112-201206

main89465-06270iASV50201112-201206

main89465-06300iASV5#201206-201711

main89465-06310iACV51201206-201501

main89465-06340iAVV50201501-201711

main89465-33470iAVV50201205-201501

89467BSENSOR, AIR FUEL RATIO

main89467-06150iACV51201112-201501

main89467-06170iASV50,AVV50201112-201501

main89467-06220iASV51201501

89615SENSOR, KNOCK CONTROL

main89615-20090iACV51,ASV50,AVV50201112-201501

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

90178C0017

main90178-C0017

9017908153

main90179-08153

9165140625

main91651-40625

10 parts on this diagram · 16 diagrams in section
