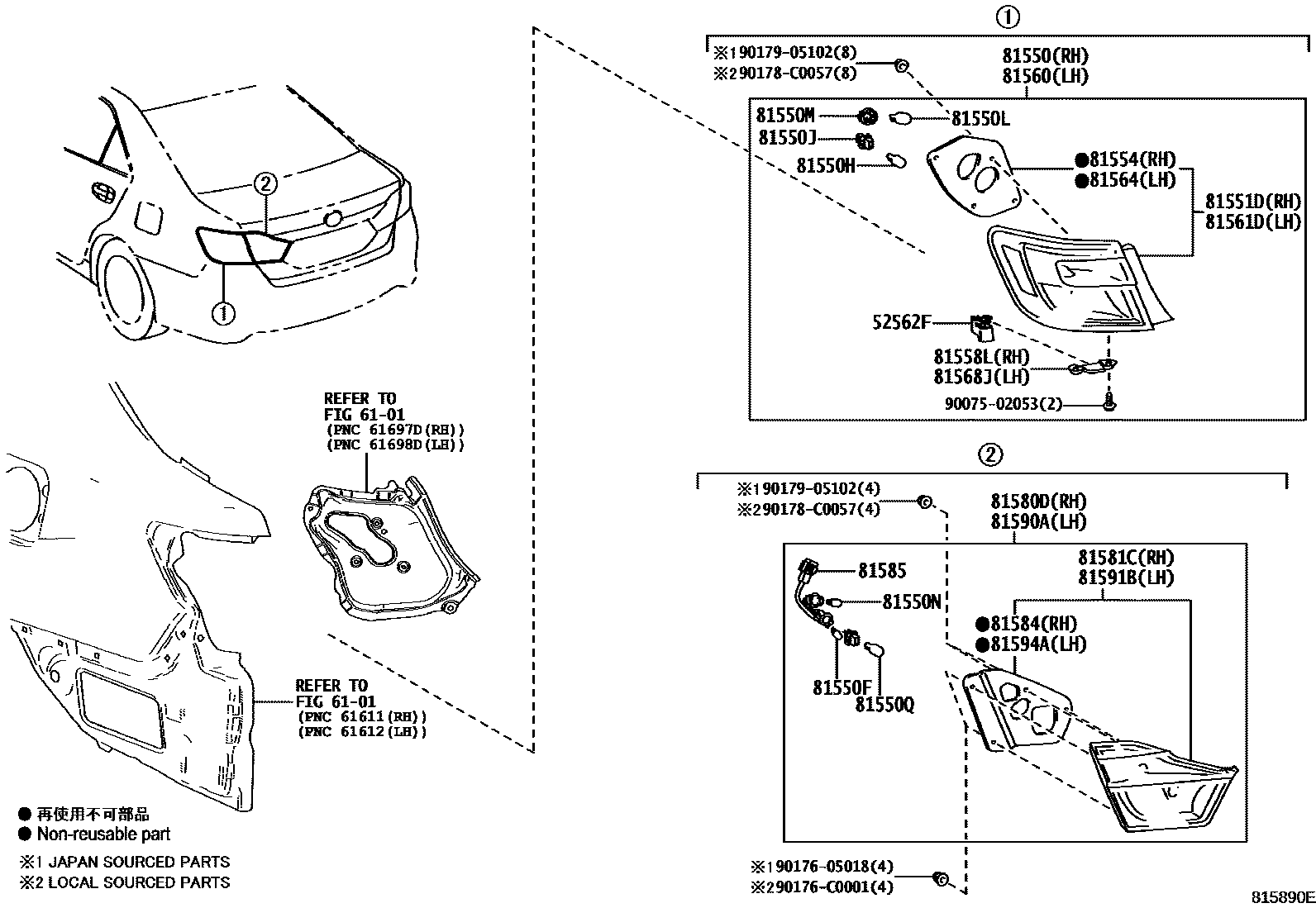

REAR COMBINATION LAMP
52562FRETAINER, REAR BUMPER, UPPER SIDE
6101
81550LAMP ASSY, REAR COMBINATION, RH
81550FBULB, TAILLAMP
81550HBULB, TAIL & STOP LAMP
81550JSOCKET, TAIL & STOP LAMP
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550MSOCKET, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
12V 16W
81550QBULB, REAR FOG LAMP, NO.1
12V 21W
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81554GASKET, REAR COMBINATION LAMP BODY, RH
81558LPROTECTOR, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81568JPROTECTOR, REAR COMBINATION LAMP, LH
81580DLAMP ASSY, REAR, RH
81581CLENS AND BODY, REAR LAMP, RH
81584PACKING, REAR LAMP RH
81585SOCKET & WIRE, REAR LAMP
81590ALAMP ASSY, REAR, LH
81591BLENS AND BODY, REAR LAMP, LH
9007502053
main90075-02053
9017605018
main90176-05018
90176C0001
main90176-C0001
90178C0057
main90178-C0057
9017905102
main90179-05102
29 parts on this diagram · 2 diagrams in section
