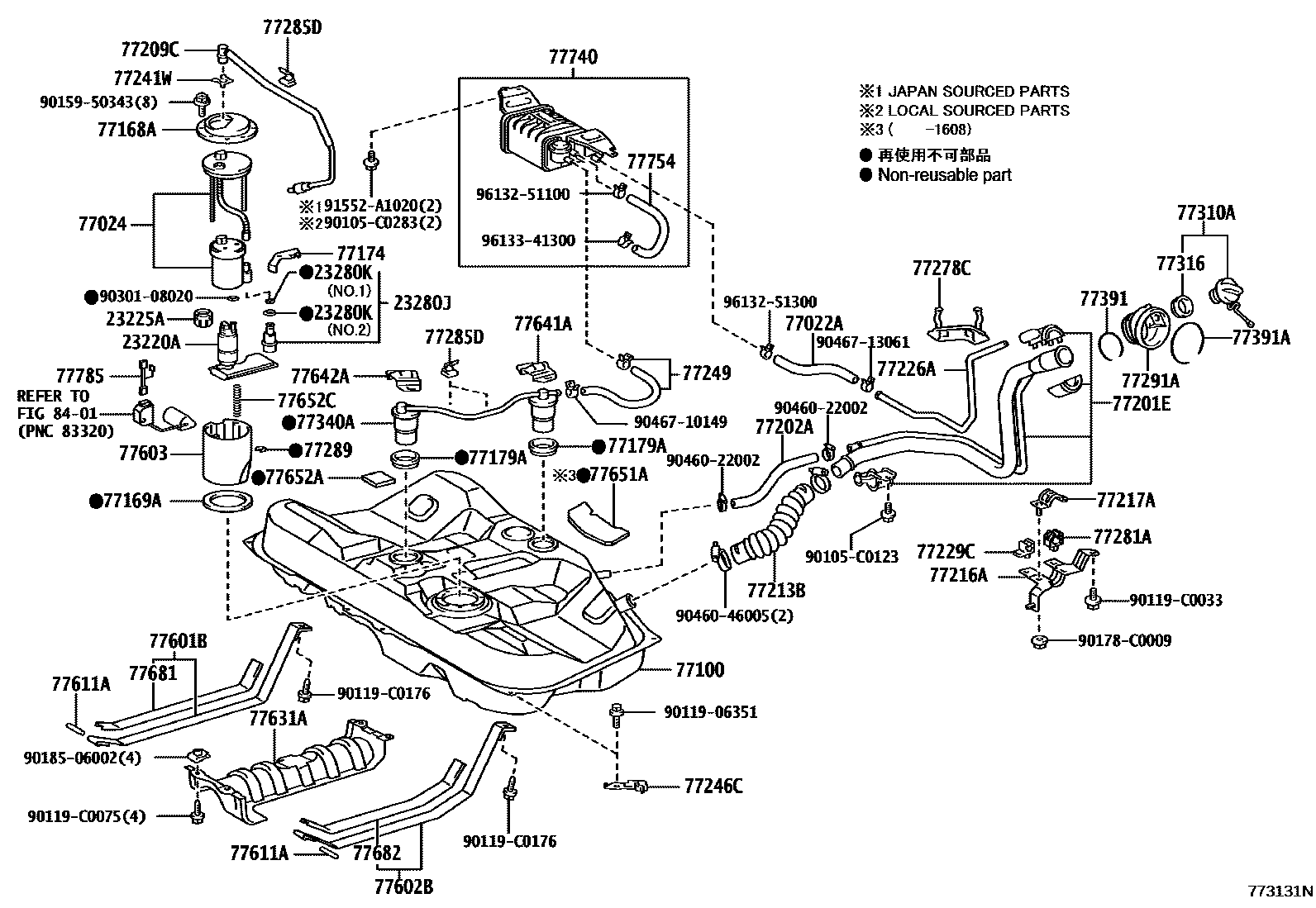

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-0H050i1AZFE..ACV51201112-201501

main23220-0V110i4ARFXE,5ARFE..ASV50,AVV50201501

main23220-0V180i6ARFSE..ASV51201501

23225ASPACER, FUEL PUMP

main23225-0H020i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201501

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201501

main23280-36020i6ARFSE..ASV51201501

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i4ARFXE,5ARFE,6ARFSE..ASV5#,AVV50201501

NO.1:REFER ILLUST.

main90301-15024i4ARFXE,5ARFE,6ARFSE..ASV5#,AVV50201501

NO.2:REFER ILLUST.

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-08030iACV51,ASV50,AVV50201112-201501

*H,L=240

77024TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT

main77024-06170iACV51,ASV50201112-201501

main77024-06260iASV5#201608

77100TANK ASSY, FUEL

main77001-06100iASV5#201501-201608

main77001-06170iAVV50201205-201501

main77001-06171iASV50201608

main77001-06221iASV51201608

77168APLATE, FUEL TANK VENT TUBE SET

main77168-06010iACV51,ASV50201112-201501

main77168-52010iAVV50201501

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iACV51,ASV50,AVV50201112-201501

77174SUPPORT, FUEL SUCTION, NO.1

main77174-06040iACV51,ASV50,AVV50201112-201501

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010×2iACV51,ASV50,AVV50201112-201501

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-06140iACV51,ASV50,AVV50201112-201501

main77201-06141iASV5#,AVV50201501

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95312-13024iACV51,ASV50,AVV50201112-201311

L=240

main95313-13024iACV51,ASV50,AVV50201311-201501

L=240

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-06041iASV50201501-201607

main77209-06060iASV51201501

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-06050iACV51,ASV50,AVV50201112-201501

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-06060iACV51,ASV50,AVV50201112-201501

main77216-06061iASV5#,AVV50201501

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-06050iACV51,ASV50,AVV50201112-201501

main77217-06051iASV5#,AVV50201501

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-06060iACV51,ASV50,AVV50201112-201501

main77226-06061iASV5#,AVV50201501

77229CCLAMP, BREATHER TUBE

main77229-06060iACV51,ASV50,AVV50201112-201501

77241WCLIP, TUBE JOINT

main77241-33011iASV5#,AVV50201501

77246CSUPPORT, FUEL MAIN TUBE

main77246-06020iASV50201501-201607

main77246-06030iASV51201501

77249HOSE, FUEL EMISSION

main77249-06060iASV5#,AVV50201501

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-06020iACV51,ASV50,AVV50201112-201501

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-06030iACV51,ASV50,AVV50201112-201501

main77281-33030iASV51201501

77281ACLAMP, FUEL FILLER PIPE

main77281-06070iACV51,ASV50,AVV50201112-201501

77285DCLAMP, FUEL TUBE, NO.1

main77285-06070×3iACV51,ASV50,AVV50201112-201501

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iACV51,ASV50,AVV50201112-201501

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-06130iASV5#,AVV50201501

77310ACAP ASSY, FUEL TANK

main77300-02030iASV5#,AVV50201501

main77300-0F010iACV51,ASV50,AVV50201205-201501

main77300-52030iACV51,ASV50201112-201205

77316GASKET, FUEL TANK CAP

main77316-0F020iACV51,ASV50,AVV50201205-201501

main77316-52040iACV51,ASV50201112-201205

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-33020iASV5#,AVV50201501

77391RING, FUEL INLET BOX

main77391-12020iASV5#,AVV50201501

77391ARING, FUEL INLET BOX

main77391-33040iACV51,ASV50,AVV50201112-201501

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-06100iACV51,ASV50201112-201501

main77601-06270iASV5#,AVV50201610

(L)

main77601-33111iASV5#,AVV50201610

(J)

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-06100iASV5#201501-201608

main77602-06270iASV5#,AVV50201610

(L)

main77602-33111iASV5#,AVV50201610

(J)

77603CASE SUB-ASSY, FUEL TANK, LOWER

main77613-06030iACV51,ASV50,AVV50201112-201501

77611APIN (FOR FUEL TANK BAND)

main90250-08019×2iACV51,ASV50,AVV50201112-201501

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-06040iACV51,ASV50201112-201501

main77631-33060iAVV50201501-201511

main77631-33090iAVV50201512

77641APROTECTOR, FUEL TANK, NO.1

main77642-33040iACV51,ASV50,AVV50201112-201501

77642APROTECTOR, FUEL TANK, NO.2

main77643-33030iACV51,ASV50,AVV50201112-201501

77651ACUSHION, FUEL TANK, NO.1

main77651-06020iACV51,ASV50201112-201501

77652ACUSHION, FUEL TANK, NO.2

main77651-12070×7iASV5#201608

main77652-06060×7iACV51,ASV50201112-201411

main77652-06061×7iACV51,ASV50201412-201501

77652CSPRING, FUEL PUMP

main77652-06050iACV51,ASV50,AVV50201112-201501

77681SEAT, FUEL TANK BAND, RH

main77681-06020iASV5#201501-201608

main77681-06280iASV5#,AVV50201610

main77681-32060iAVV50201501-201610

77682SEAT, FUEL TANK BAND, LH

main77681-06030iACV51,ASV50201112-201501

main77681-06280iASV5#,AVV50201610

main77681-32060iAVV50201205-201501

77740CANISTER ASSY, CHARCOAL

main77740-06201iACV51,ASV50,AVV50201112-201501

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-06030iACV51,ASV50,AVV50201112-201501

77785HARNESS, FUEL PUMP

main77785-33060iACV51,ASV50,AVV50201112-201501

8401

90105C0123

main90105-C0123

90105C0283

main90105-C0283

9011906351

main90119-06351

90119C0033

main90119-C0033

90119C0075

main90119-C0075

90119C0176

main90119-C0176

9015950343

main90159-50343

90178C0009

main90178-C0009

9018506002

main90185-06002

9030108020

main90301-08020

9046022002

main90460-22002

9046046005

main90460-46005

9046710149

main90467-10149

9046713061

main90467-13061

91552A1020

main91552-A1020

9613251100

main96132-51100

9613251300

main96132-51300

9613341300

main96133-41300

67 parts on this diagram · 6 diagrams in section
