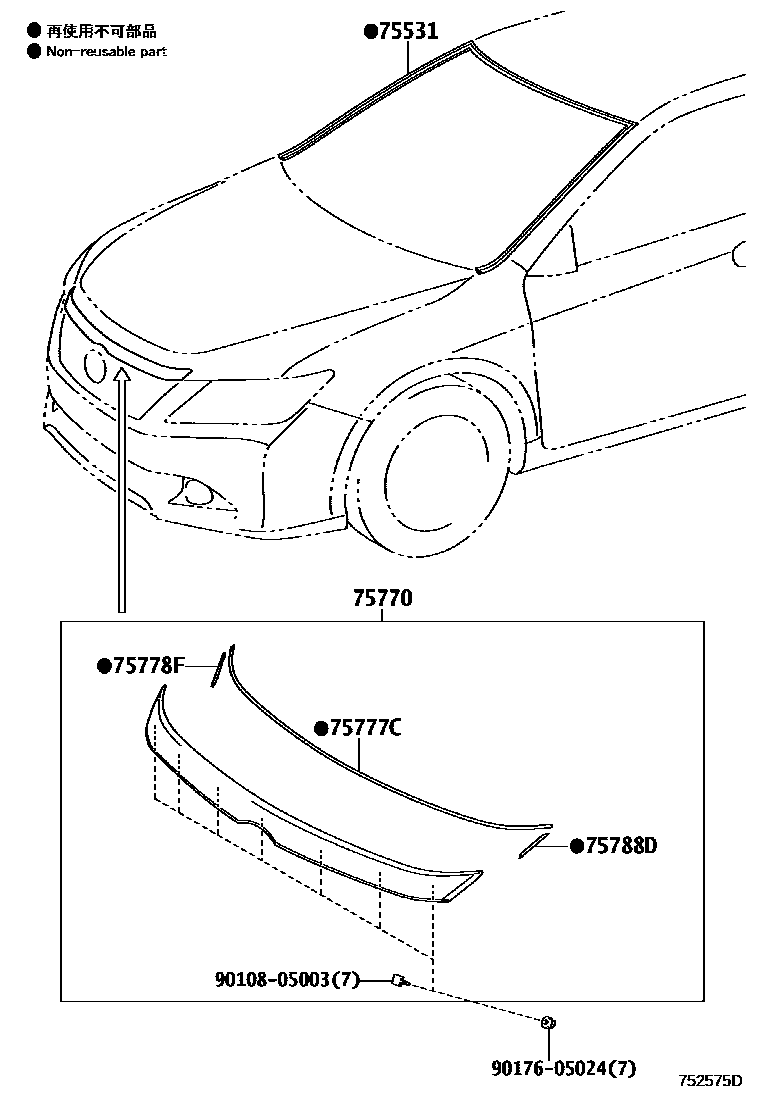

FRONT MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-06180iACV51,ASV50,AVV50201112-201501

75770MOULDING ASSY, HOOD, FRONT

main75770-06010iACV51,ASV50,AVV50201112-201307

PLATED

main75770-06011iACV51,ASV50,AVV50201308-201501

PLATED

main75770-06060iASV5#,AVV50201501-201711

PLATED

75777CPAD, HOOD FRONT MOULDING

main75777-06020iACV51,ASV50,AVV50201112-201501

main75777-06110iASV5#,AVV50201501

75778FPAD, HOOD FRONT MOULDING, RH

main75778-06040iACV51,ASV50,AVV50201112-201501

75788DPAD, HOOD FRONT MOULDING, LH

main75788-06040×2iACV51,ASV50,AVV50201112-201501

9010805003

main90108-05003

9017605024

main90176-05024

7 parts on this diagram · 2 diagrams in section
