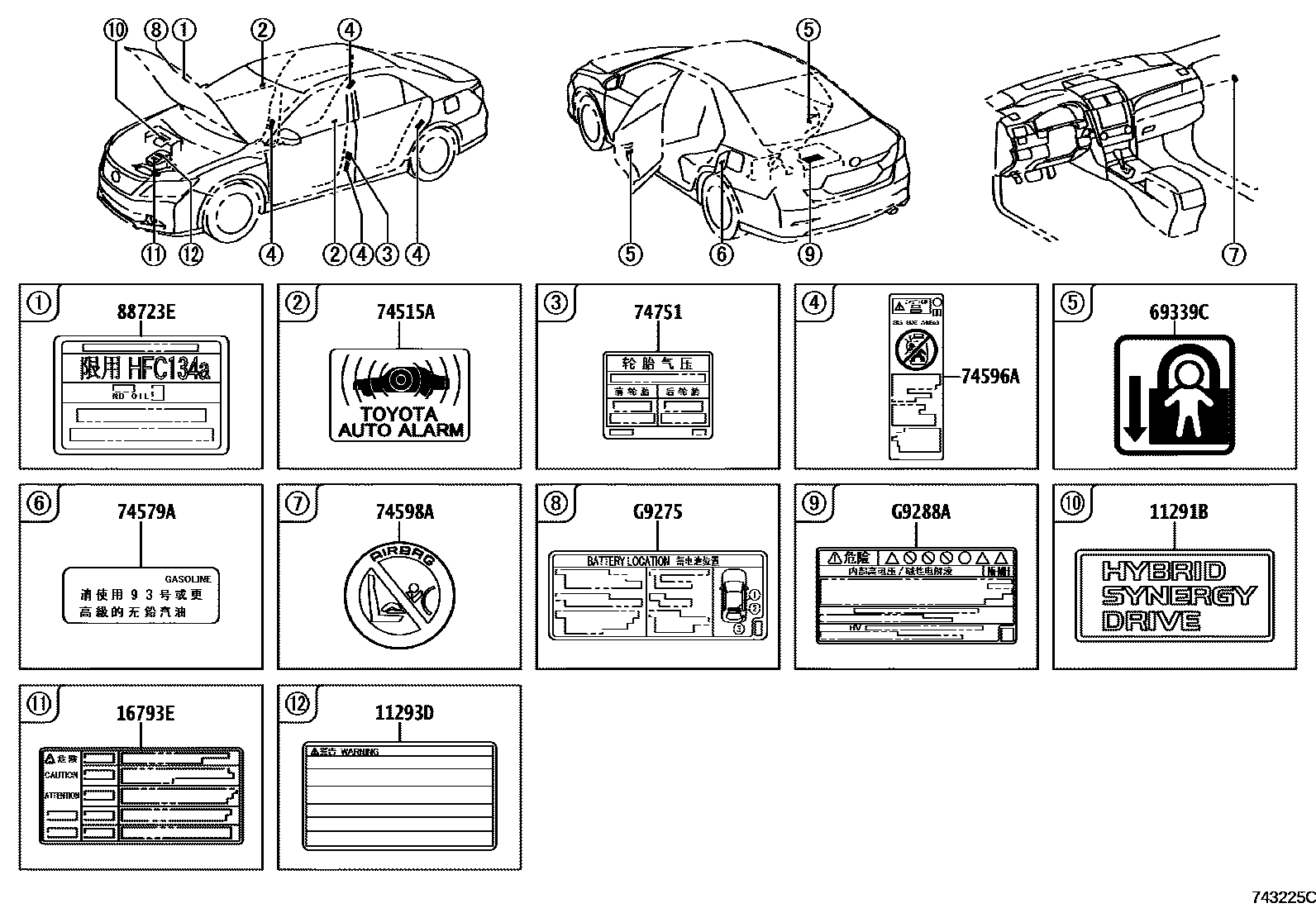

CAUTION PLATE (EXTERIOR & INTERIOR)

11291BPLATE, ENGINE NAME

main11291-36040i4ARFXE..AVV50201205-201711

11293DLABEL, ENGINE CAUTION

main11293-36070i4ARFXE..AVV50201205-201711

16793ELABEL, COOLING FAN CAUTION

main16793-28020i1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50201112-201711

sub16793-36040

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-06080iACV51,ASV50,AVV50201112-201501

74515APLATE, THEFT WARNING

main74515-06020iASV5#,AVV50201112-201501

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-0D010iASV50,AVV50201304-201501

(L)

main74579-26010iACV51,ASV50,AVV50201112-201207

sub74579-33010

main74579-26011iASV50,AVV50201304-201501

(J)

main74579-26011iACV51201208-201310

74596ALABEL, SIDE AIRBAG CAUTION

main74596-53020iASV5#..20E,20S,25G,25S201112-201501

74598ALABEL, PASSENGER AIRBAG CAUTION

main74598-06040iACV51,ASV50,AVV50201112-201501

74751LABEL, TIRE PRESSURE INFORMATION

main42661-06870iACV51,ASV50..25G,STD201112-201501

main42661-06870iAVV50201205-201501

CHINA G GRADE

main42661-06880iACV51,ASV50,AVV50..20S,25S,25V,HBD201112-201501

main42661-06A70iAVV50201501

G GRADE

main42661-06A80iASV51..20S201501

88723ELABEL, COOLER SERVICE CAUTION

main88723-06110iAVV50201205-201501

main88723-0D020iASV5#201112-201501

G9275LABEL, BATTERY CAUTION, NO.1

mainG927576030iAVV50201205-201501

G9288ALABEL, BATTERY CARGING NOTICE

mainG928847090iAVV50201205-201501

12 parts on this diagram · 1 diagram in section
