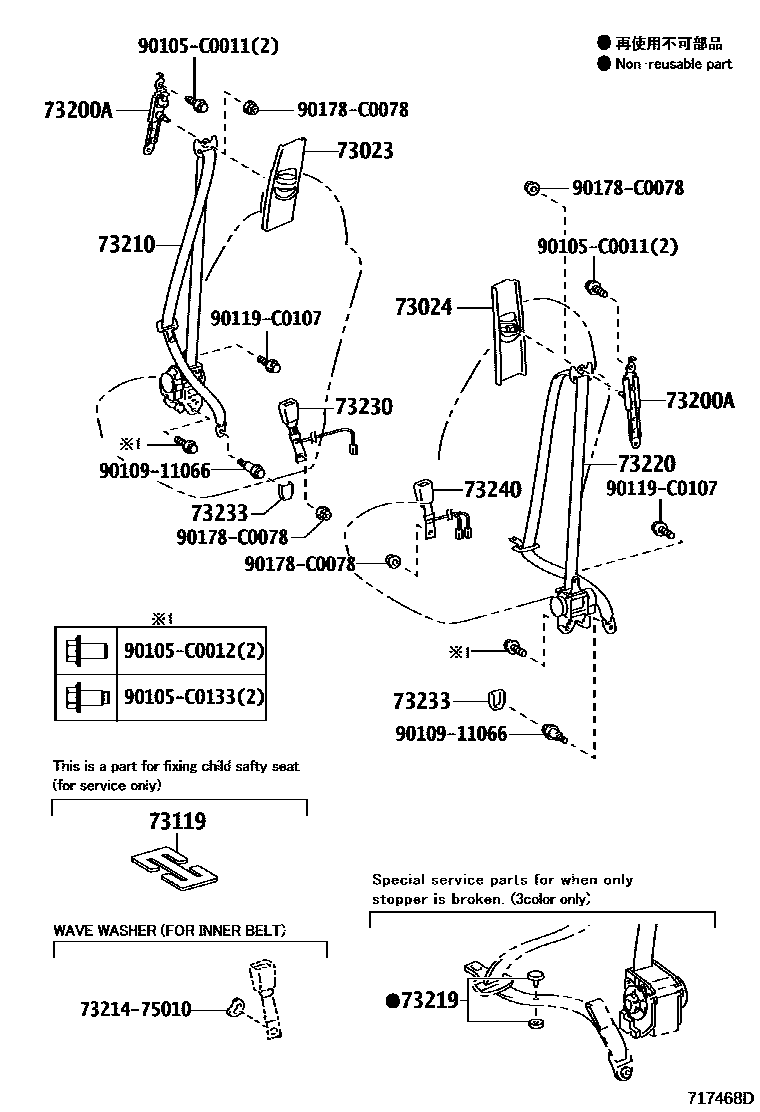

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06060-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main73023-06060-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main73023-06060-B0iASV5#,AVV50201309-201711

GRAY,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06060-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main73024-06060-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main73024-06060-B0iACV51,ASV50,AVV50201309-201711

GRAY,TRIM2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iASV5#,AVV50201501

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06080iACV51,ASV50,AVV50201112-201502

main73200-0G020iASV5#,AVV50201503

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06350-A0iASV50..25S201112-201501

SHELL,TRIM0#

main73210-06350-A1iASV5#,AVV50..20E,25G,25V,HBD201501-201711

FLAXEN,TRIM0#

main73210-06350-C0iACV51,ASV50,AVV50..20S,25G,25S,25V,HBD201309-201501

CHINA G GRADE,BLACK,TRIM2#

main73210-06350-C0iACV51..STD201309-201711

BLACK,TRIM2#

main73210-06350-C0iASV5#,AVV50..20S,25G,25S,25V,HBD201501-201711

G GRADE,BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iACV51,ASV50,AVV50201112-201501

BLACK

main73219-33020iASV5#,AVV50201112-201501

GRAY

main73219-33030iASV5#,AVV50201112-201501

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06320-A0iASV50..25S201112-201501

SHELL,TRIM0#

main73220-06320-A1iASV5#,AVV50..20E,25G,25V,HBD201501-201711

FLAXEN,TRIM0#

main73220-06320-C0iACV51..STD201309-201501

CHINA G GRADE,BLACK,TRIM2#

main73220-06320-C0iACV51,ASV50,AVV50..20S,25G,25S,25V,HBD201309-201711

BLACK,TRIM2#

main73220-06320-C0iASV5#,AVV50..20S,25G,25S,25V,HBD201501-201711

G GRADE,BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-06500-A0iASV50..25S201112-201501

SHELL,TRIM0#

main73230-06500-A1iASV51..20E201501-201711

FLAXEN,TRIM0#

main73230-06500-C0iASV5#..20S,25S201309-201711

BLACK,TRIM2#

main73230-06520-A0iACV51..STD201112-201501

SHELL,TRIM0#

main73230-06520-A0iASV50,AVV50..25G,25V,HBD201112-201501

CHINA G GRADE,SHELL,TRIM0#

main73230-06520-A1iASV50,AVV50..25G,25V,HBD201501-201711

FLAXEN,TRIM0#

main73230-06520-A1iASV51..20E201501-201711

G GRADE,FLAXEN,TRIM0#

main73230-06520-C0iACV51..STD201309-201501

CHINA G GRADE,BLACK,TRIM2#

main73230-06520-C0iASV50,AVV50..25G,25V,HBD201309-201711

BLACK,TRIM2#

main73230-06520-C0iASV50,AVV50..25G,25V,HBD201501-201711

G GRADE,BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0F010-A0iASV50..25S201112-201501

SHELL,TRIM0#

main73233-0F010-A2iASV5#,AVV50..20E,25G,25V,HBD201501-201711

FLAXEN,TRIM0#

main73233-0F010-C0iACV51,ASV50,AVV50..20S,25G,25S,25V,HBD201309-201501

CHINA G GRADE,BLACK,TRIM2#

main73233-0F010-C0iACV51,ASV50,AVV50..20S,25G,25S,25V,HBD201309-201711

BLACK,TRIM2#

main73233-0F010-C0iASV5#,AVV50..20S,25G,25S,25V,HBD201501-201711

G GRADE,BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-06490-A0iACV51201112-201501

SHELL,TRIM0#

main73230-06490-A1iASV51..20E201501-201711

FLAXEN,TRIM0#

main73230-06490-C0iACV51..20S201309-201501

BLACK,TRIM2#

main73230-06510-A0iACV51..STD201112-201501

SHELL,TRIM0#

main73230-06510-A0iACV51..STD201112-201501

CHINA G GRADE,SHELL,TRIM0#

main73230-06510-A1iASV51..20E201501-201711

G GRADE,FLAXEN,TRIM0#

main73230-06510-A1iASV50,AVV50..25G,25V,HBD201501-201711

FLAXEN,TRIM0#

main73230-06510-C0iACV51..STD201309-201711

BLACK,TRIM2#

main73230-06510-C0iASV51..20E201501-201711

G GRADE,BLACK,TRIM2#

main73230-06510-C0iASV50,AVV50201309-201501

CHINA G GRADE,BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105C0011

main90105-C0011

90105C0012

main90105-C0012

90105C0133

main90105-C0133

9010911066

main90109-11066

90119C0107

main90119-C0107

90178C0078

main90178-C0078

17 parts on this diagram · 2 diagrams in section
