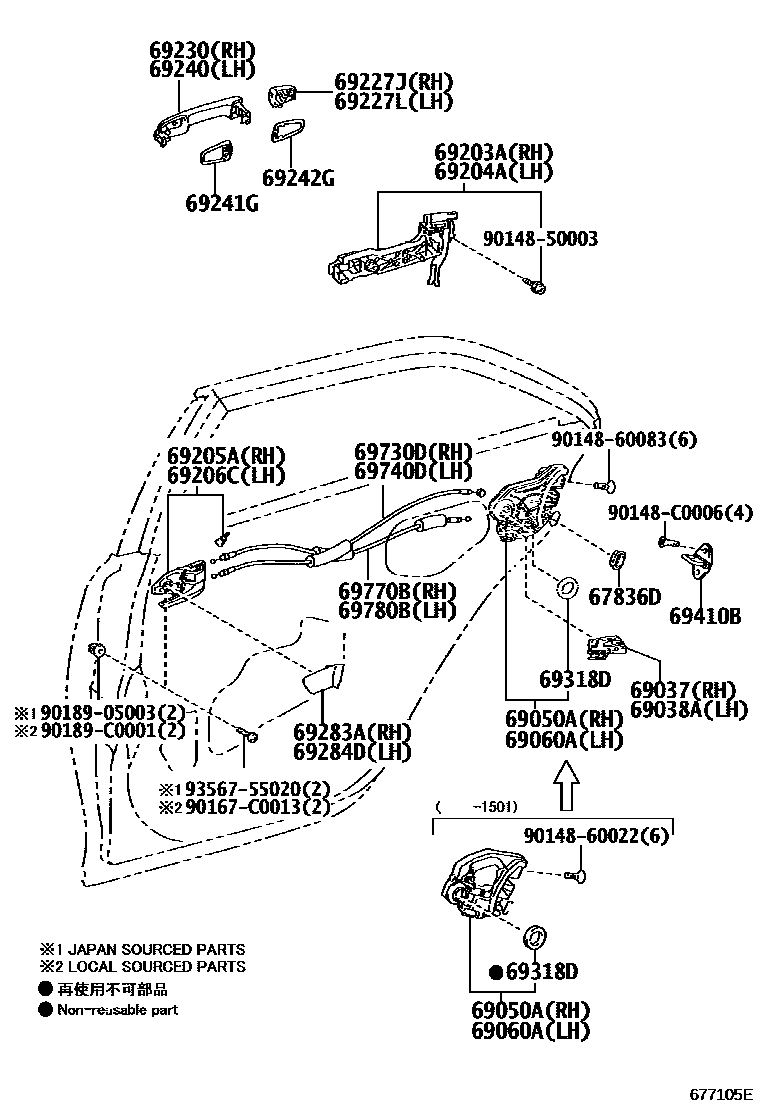

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-06020iACV51,ASV50,AVV50201112-201501

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02070iASV5#,AVV50201501

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02070iASV5#,AVV50201501

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02470iASV5#,AVV50201501

main69050-06111iACV51,ASV50,AVV50201112-201501

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02470iASV5#,AVV50201501

main69060-06111iACV51,ASV50,AVV50201112-201501

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-06090iACV51,ASV50,AVV50201112-201501

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-06090iACV51,ASV50,AVV50201112-201501

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-06131-C0iACV51,ASV50,AVV50201112-201711

BLACK,TRIM0#,2#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-06121-C0iACV51,ASV50,AVV50201112-201711

BLACK,TRIM0#,2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69250-06170-A0iASV5#,AVV50201112-201711

WHITE PEARL CS.,070

main69250-06170-B0iACV51,ASV50,AVV50201112-201711

SILVER ME.,1D4

main69250-06170-B1iACV51,ASV50,AVV50201112-201501

GRAY ME.,1G3

main69250-06170-B3iASV5#,AVV50201501-201711

GRAY M.M.,1H1

main69250-06170-C0iASV5#,AVV50201112-201608

ATTITUDE BLACK MC.,218

main69250-06170-C1iASV5#,AVV50201608-201711

BLACK MC.,209

main69250-06170-D0iACV51,ASV50,AVV50201309-201501

RED M.M.,3R3

main69250-06170-D1iASV5#,AVV50201501-201711

RED MC.,3T3

main69250-06170-E0iACV51,ASV50,AVV50201112-201309

BEIGE ME.,4T8

main69250-06170-E1iASV5#,AVV50201608-201711

DK. BROWN M.M.,4U3

main69250-06170-J0iAVV50201205-201501

LIGHT BLUE MICA METALLIC,8U8

main69250-06170-J1iACV51,ASV50,AVV50201112-201501

TRUE BLUE M.M.,8W1

main69250-06170-J2iASV5#,AVV50201501-201711

GRAYISH BLUE M.M.,8V5

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69250-06170-A0iACV51,ASV50,AVV50201112-201711

WHITE PEARL CS.,070

main69250-06170-B0iASV5#,AVV50201112-201711

SILVER ME.,1D4

main69250-06170-B1iACV51,ASV50,AVV50201112-201501

GRAY ME.,1G3

main69250-06170-B3iASV5#,AVV50201501-201711

GRAY M.M.,1H1

main69250-06170-C0iASV5#,AVV50201112-201608

ATTITUDE BLACK MC.,218

main69250-06170-C1iASV5#,AVV50201608-201711

BLACK MC.,209

main69250-06170-D0iACV51,ASV50,AVV50201309-201501

RED M.M.,3R3

main69250-06170-D1iASV5#,AVV50201501-201711

RED MC.,3T3

main69250-06170-E0iACV51,ASV50,AVV50201112-201309

BEIGE ME.,4T8

main69250-06170-E1iASV5#,AVV50201608-201711

DK. BROWN M.M.,4U3

main69250-06170-J0iAVV50201205-201501

LIGHT BLUE MICA METALLIC,8U8

main69250-06170-J1iACV51,ASV50,AVV50201112-201501

TRUE BLUE M.M.,8W1

main69250-06170-J2iASV5#,AVV50201501-201711

GRAYISH BLUE M.M.,8V5

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-06200-A0iASV5#,AVV50201112-201711

WHITE PEARL CS.,070

main69210-06200-B0iACV51,ASV50,AVV50201112-201711

SILVER ME.,1D4

main69210-06200-B1iACV51,ASV50,AVV50201112-201501

GRAY ME.,1G3

main69210-06200-B3iASV5#,AVV50201501-201711

GRAY M.M.,1H1

main69210-06200-C0iACV51,ASV50,AVV50201112-201608

ATTITUDE BLACK MC.,218

main69210-06200-C1iASV5#,AVV50201608-201711

BLACK MC.,209

main69210-06200-D0iACV51,ASV50,AVV50201309-201501

RED M.M.,3R3

main69210-06200-D1iASV5#,AVV50201501-201711

RED MC.,3T3

main69210-06200-E0iACV51,ASV50,AVV50201112-201309

BEIGE ME.,4T8

main69210-06200-E1iASV5#,AVV50201608-201711

DK. BROWN M.M.,4U3

main69210-06200-J0iAVV50201205-201501

LIGHT BLUE MICA METALLIC,8U8

main69210-06200-J1iACV51,ASV50,AVV50201112-201501

TRUE BLUE M.M.,8W1

main69210-06200-J2iASV5#,AVV50201501-201711

GRAYISH BLUE M.M.,8V5

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-06200-A0iASV5#,AVV50201112-201711

WHITE PEARL CS.,070

main69210-06200-B0iACV51,ASV50,AVV50201112-201711

SILVER ME.,1D4

main69210-06200-B1iACV51,ASV50,AVV50201112-201501

GRAY ME.,1G3

main69210-06200-B3iASV5#,AVV50201501-201711

GRAY M.M.,1H1

main69210-06200-C0iACV51,ASV50,AVV50201112-201608

ATTITUDE BLACK MC.,218

main69210-06200-C1iASV5#,AVV50201608-201711

BLACK MC.,209

main69210-06200-D0iACV51,ASV50,AVV50201309-201501

RED M.M.,3R3

main69210-06200-D1iASV5#,AVV50201501-201711

RED MC.,3T3

main69210-06200-E0iACV51,ASV50,AVV50201112-201309

BEIGE ME.,4T8

main69210-06200-E1iASV5#,AVV50201608-201711

DK. BROWN M.M.,4U3

main69210-06200-J0iAVV50201205-201501

LIGHT BLUE MICA METALLIC,8U8

main69210-06200-J1iACV51,ASV50,AVV50201112-201501

TRUE BLUE M.M.,8W1

main69210-06200-J2iASV5#,AVV50201501-201711

GRAYISH BLUE M.M.,8V5

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-06070iASV5#,AVV50201501

main69241-06090iACV51,ASV50,AVV50201112-201501

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-06070iASV5#,AVV50201501

main69242-06090iACV51,ASV50,AVV50201112-201501

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-06070-C0iACV51,ASV50,AVV50201112-201711

BLACK,TRIM0#,2#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-06070-C0iACV51,ASV50,AVV50201112-201711

BLACK,TRIM0#,2#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iASV5#,AVV50201112-201501

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D020iACV51,ASV50,AVV50201112-201501

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-06110iACV51,ASV50,AVV50201112-201501

main69730-06170iASV5#,AVV50201501

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-06110iACV51,ASV50,AVV50201112-201501

main69730-06170iASV5#,AVV50201501

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-06100iACV51,ASV50,AVV50201112-201501

main69770-06160iASV5#,AVV50201501

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-06100iACV51,ASV50,AVV50201112-201501

main69770-06160iASV5#,AVV50201501

9014850003

main90148-50003

9014860022

main90148-60022

9014860083

main90148-60083

90148C0006

main90148-C0006

90167C0013

main90167-C0013

9018905003

main90189-05003

90189C0001

main90189-C0001

9356755020

main93567-55020

31 parts on this diagram · 1 diagram in section
