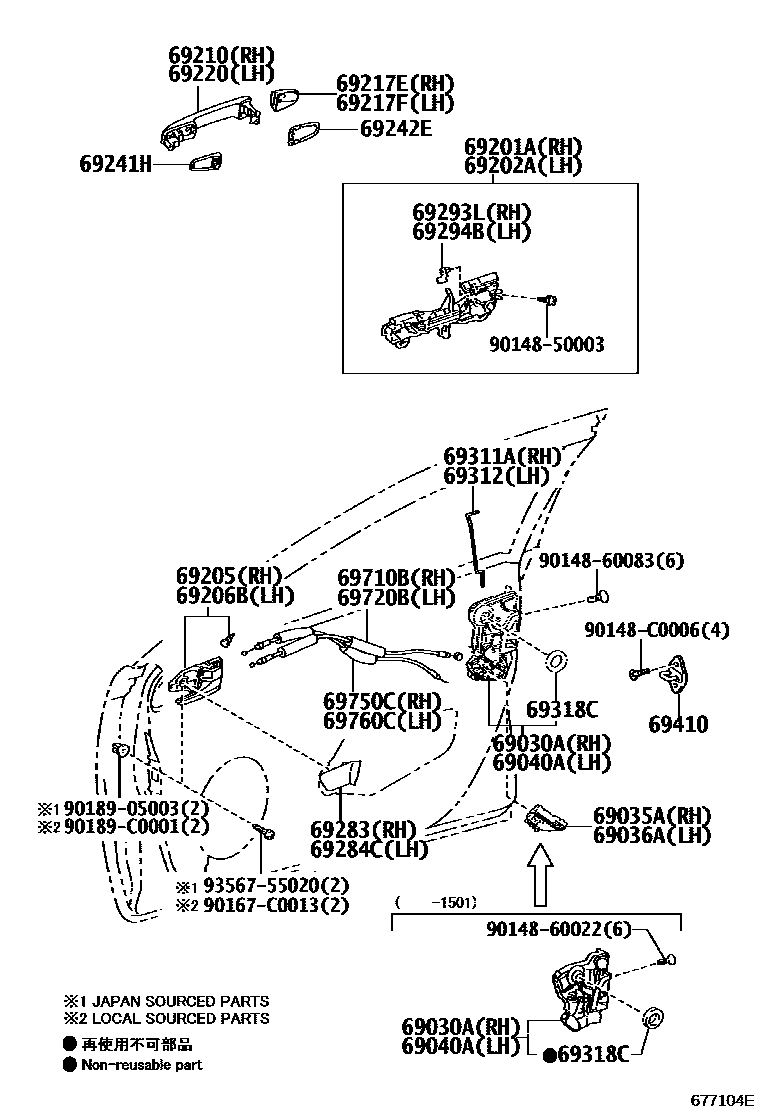

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM0#,2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM0#,2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
RED MC.,3T3
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
LIGHT BLUE MICA METALLIC,8U8
TRUE BLUE M.M.,8W1
GRAYISH BLUE M.M.,8V5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
RED MC.,3T3
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
LIGHT BLUE MICA METALLIC,8U8
TRUE BLUE M.M.,8W1
GRAYISH BLUE M.M.,8V5
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
RED MC.,3T3
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
LIGHT BLUE MICA METALLIC,8U8
TRUE BLUE M.M.,8W1
GRAYISH BLUE M.M.,8V5
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
VALUE PACKAGE,WHITE PEARL CS.,070
SILVER ME.,1D4
VALUE PACKAGE,SILVER ME.,1D4
VALUE PACKAGE,GRAY ME.,1G3
GRAY ME.,1G3
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
VALUE PACKAGE,ATTITUDE BLACK MC.,218
BLACK MC.,209
VALUE PACKAGE,RED M.M.,3R3
RED M.M.,3R3
RED MC.,3T3
BEIGE ME.,4T8
VALUE PACKAGE,BEIGE ME.,4T8
DK. BROWN M.M.,4U3
VALUE PACKAGE,TRUE BLUE M.M.,8W1
TRUE BLUE M.M.,8W1
GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
RED MC.,3T3
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
LIGHT BLUE MICA METALLIC,8U8
TRUE BLUE M.M.,8W1
GRAYISH BLUE M.M.,8V5
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM0#,2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM0#,2#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860022
main90148-60022
9014860083
main90148-60083
90148C0006
main90148-C0006
90167C0013
main90167-C0013
9018905003
main90189-05003
90189C0001
main90189-C0001
9356755020
main93567-55020
34 parts on this diagram · 1 diagram in section
