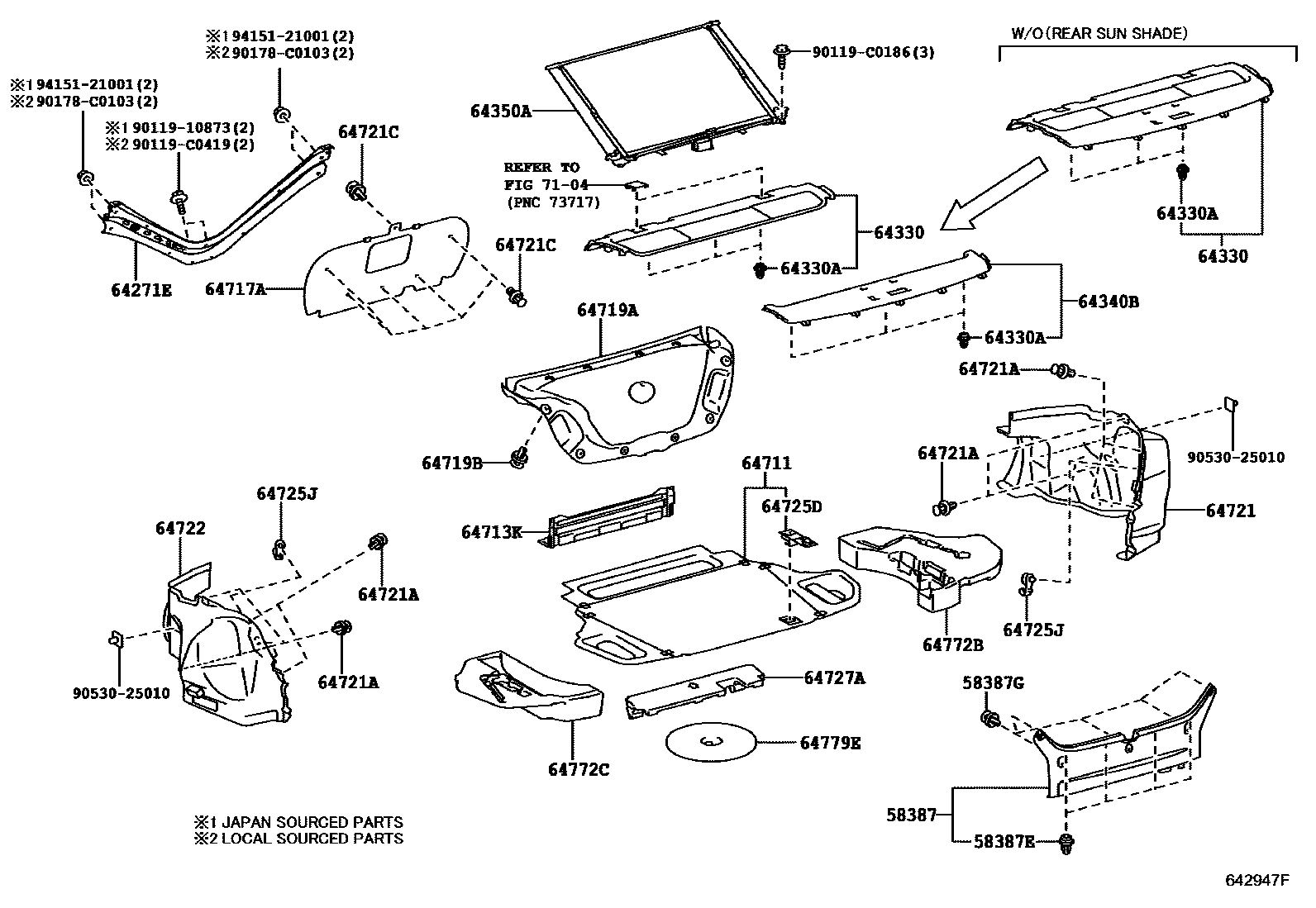

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-06161iACV51,ASV50,AVV50201112-201512

sub58387-06162

main58387-06162iASV5#,AVV50201601

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-10161iACV51,ASV50,AVV50201112-201501

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-07201iACV51,ASV50,AVV50201112-201501

main90467-C0012-C0iASV5#,AVV50201501-201711

BLACK

64271EPANEL, ROOM PARTITION

main64241-06060iACV51,ASV50201112-201711

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-06680-A0iACV51,ASV50..20S,25G,25S,STD201112-201501

SHELL,TRIM0#

sub64330-06681

main64330-06680-A1iASV5#..20E,20S,25G,25S201501-201512

FLAXEN,TRIM0#

sub64330-06681

main64330-06680-C0iACV51,ASV50..20S,25G,25S,STD201309-201512

BLACK,TRIM2#

sub64330-06681

main64330-06681-A1iASV5#..20E,25G201601-201711

FLAXEN,TRIM0#

main64330-06681-C0iASV5#..20E,20S,25G,25S201601-201711

BLACK,TRIM2#

main64330-06710-A1iASV50,AVV50..25V,HBD201501-201512

FLAXEN,TRIM0#

sub64330-06711

main64330-06710-C0iASV50,AVV50..25V,HBD201501-201512

BLACK,TRIM2#

sub64330-06711

main64330-06711-A1iASV50,AVV50..25V,HBD201601-201711

FLAXEN,TRIM0#

main64330-06711-C0iASV50,AVV50..25V,HBD201601-201711

BLACK,TRIM2#

main64330-06A00-A0iASV50,AVV50..25V,HBD201112-201501

SHELL,TRIM0#

sub64330-06A01

main64330-06A00-C0iASV50,AVV50..25V,HBD201309-201501

BLACK,TRIM2#

sub64330-06A01

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161iASV50,AVV50..25V,HBD201501

G GRADE

main90467-10161iACV51,ASV50..20S,25G,25S,STD201112-201501

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-06190-A0iASV50,AVV50..25V,HBD201112-201501

SHELL,TRIM0#

sub64340-06191

main64340-06190-A1iASV50,AVV50..25V,HBD201501-201512

FLAXEN,TRIM0#

sub64340-06191

main64340-06190-C0iASV50,AVV50..25V,HBD201309-201512

BLACK,TRIM2#

sub64340-06191

main64340-06191-A1iASV50,AVV50..25V,HBD201601-201711

FLAXEN,TRIM0#

main64340-06191-C0iASV50,AVV50..25V,HBD201601-201711

BLACK,TRIM2#

64350ASHADE ASSY, REAR WINDOW

main64350-06110iAVV50201501-201512

G GRADE

sub64350-06111

main64350-06110iAVV50201501-201512

E GRADE

sub64350-06111

main64350-06110iASV50,AVV50..25V,HBD201112-201501

sub64350-06111

main64350-06111iASV50,AVV50..25V,HBD201601

E GRADE

main64350-06111iASV50,AVV50..25V,HBD201601

G GRADE

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-06280-C0iASV5#201112-201512

BLACK,TRIM0#,2#

sub64711-06281

main64711-06281-C0iASV5#..20S,25S201601-201711

BLACK,TRIM2#

main64711-06281-C0iASV5#..20S,25S201601-201711

BLACK,TRIM0#,2#

main64711-06290-C0iAVV50201205-201512

BLACK,TRIM0#,2#

sub64711-06291

main64711-06291-C0iAVV50201601-201711

BLACK,TRIM0#,2#

64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER

main64713-06070-C0iACV51,ASV50,AVV50201112-201512

BLACK,TRIM0#,2#

sub64713-06071

main64713-06071-C0iASV5#,AVV50..20E,25G,25V,HBD201601-201711

BLACK,TRIM2#

main64713-06071-C0iASV5#,AVV50..20E,25G,25V,HBD201601-201711

BLACK,TRIM0#,2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-06200-C0iASV5#201112-201512

BLACK,TRIM0#,2#

sub64717-06201

main64717-06201-C0iASV5#..20S,25S201601-201711

BLACK,TRIM0#,2#

main64717-06201-C0iASV5#..20S,25S201601-201711

BLACK,TRIM2#

main64717-06210-C0iAVV50201205-201512

BLACK,TRIM0#,2#

sub64717-06211

main64717-06211-C0iAVV50201601-201711

BLACK,TRIM0#,2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-06200-C0iACV51,ASV50,AVV50201112-201309

BLACK,TRIM0#,2#

sub64719-06203

main64719-06201-C0iACV51,ASV50..20S,25S201309-201512

BLACK,TRIM0#,2#

sub64719-06202

main64719-06201-C0iACV51,ASV50..20S,25S201309-201512

BLACK,TRIM2#

sub64719-06202

main64719-06202-C0iASV5#,AVV50..20E,25G,25V,HBD201601-201711

BLACK,TRIM0#,2#

main64719-06202-C0iASV5#,AVV50..20E,25G,25V,HBD201601-201711

BLACK,TRIM2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07201iACV51,ASV50,AVV50201112-201501

main90467-C0012-C0iASV5#,AVV50201501-201711

BLACK

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64710-06011-C0iAVV50201205-201512

BLACK,TRIM0#,2#

sub64710-06012

main64710-06012-C0iAVV50201601-201711

BLACK,TRIM0#,2#

main64721-06241-C0iASV5#201112-201512

BLACK,TRIM0#,2#

sub64721-06242

main64721-06242-C0iASV5#..20E,25G,25V201601-201711

BLACK,TRIM2#

main64721-06242-C0iASV5#..20S,25S201601-201711

BLACK,TRIM0#,2#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07201iACV51,ASV50,AVV50201112-201501

main90467-C0012-C0iASV5#,AVV50201501-201711

BLACK

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-07201iAVV50201205-201501

main90467-08186-C0iACV51,ASV50201112-201501

BLACK

sub90467-08186

main90467-C0012-C0iASV5#201501-201711

BLACK

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-06251-C0iASV5#201112-201512

BLACK,TRIM0#,2#

sub64722-06252

main64722-06252-C0iASV5#..20E,25G,25V201601-201711

BLACK,TRIM0#,2#

main64722-06252-C0iASV5#..20S,25S201601-201711

BLACK,TRIM2#

main64722-06261-C0iAVV50201205-201512

BLACK,TRIM0#,2#

sub64722-06262

main64722-06262-C0iAVV50201601-201711

BLACK,TRIM0#,2#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-06060iASV5#,AVV50201112-201501

64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-33090-C0iASV5#,AVV50201112-201702

BLACK,TRIM0#,2#

main64725-33090-C2iASV5#,AVV50..20E,25G,25V,HBD201702-201711

BLACK,TRIM0#,2#

main64725-33090-C2iASV5#,AVV50..20E,25G,25V,HBD201702-201711

BLACK,TRIM2#

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-06070iASV5#,AVV50201112-201501

64772BPAD, SPARE WHEEL COVER

main64772-06181iACV51,ASV50201112-201605

sub64772-06182

main64772-06182iASV5#201606

main64772-06191iAVV50201205-201605

sub64772-06192

main64772-06192iAVV50201606

64772CPAD, SPARE WHEEL COVER

main64773-06171iACV51,ASV50,AVV50201112-201605

sub64773-06172

main64773-06172iASV5#,AVV50201606

64779ETRAY, SPARE WHEEL COVER

main64779-06141iACV51,ASV50,AVV50201112-201605

sub64779-06142

main64779-06142iASV5#,AVV50201606

7104

9011910873

main90119-10873

90119C0186

main90119-C0186

90119C0419

main90119-C0419

90178C0103

main90178-C0103

9053025010

main90530-25010

9415121001

main94151-21001

30 parts on this diagram · 2 diagrams in section
