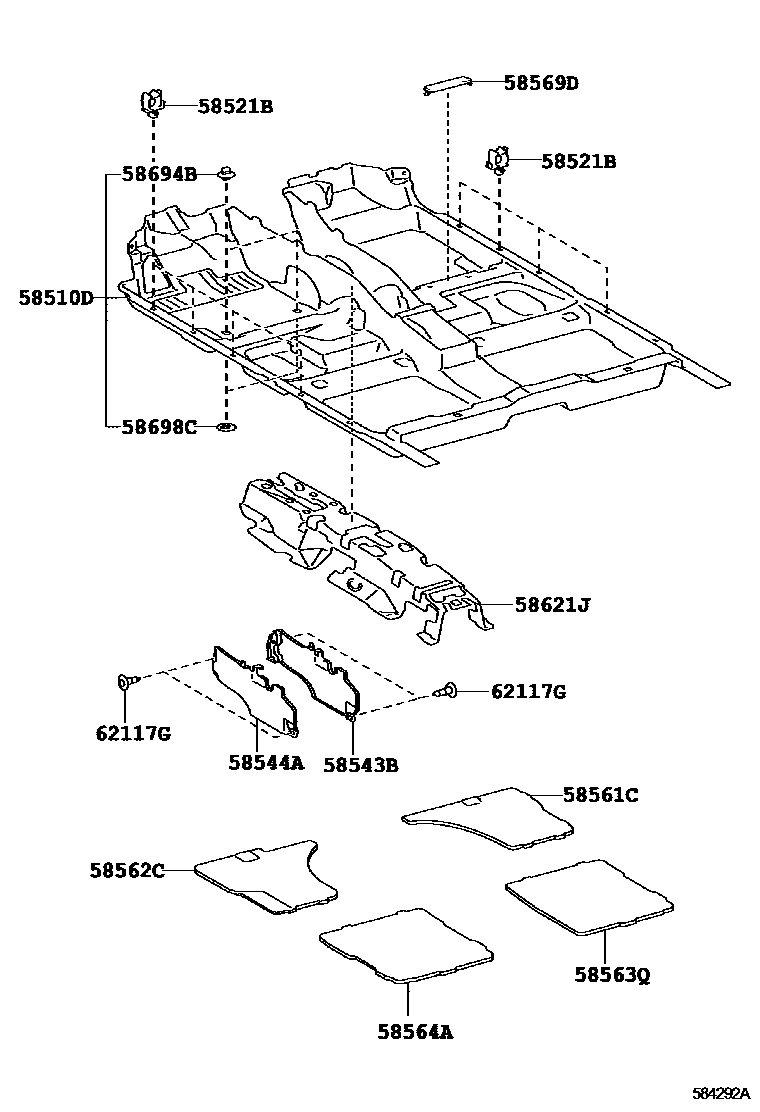

MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
SHELL,TRIM0#
BLACK,TRIM2#
FLAXEN,TRIM00
BLACK,TRIM00,2#
BLACK,TRIM2#
58521BHOOK, FLOOR CARPET
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58569DCOVER, FRONT FLOOR CAUTION PLATE
58621JSILENCER, CENTER CONSOLE, NO.1
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
62117GCLIP, NO.2(FOR COWL SIDE TRIM)
BLACK,(L)
13 parts on this diagram · 2 diagrams in section
