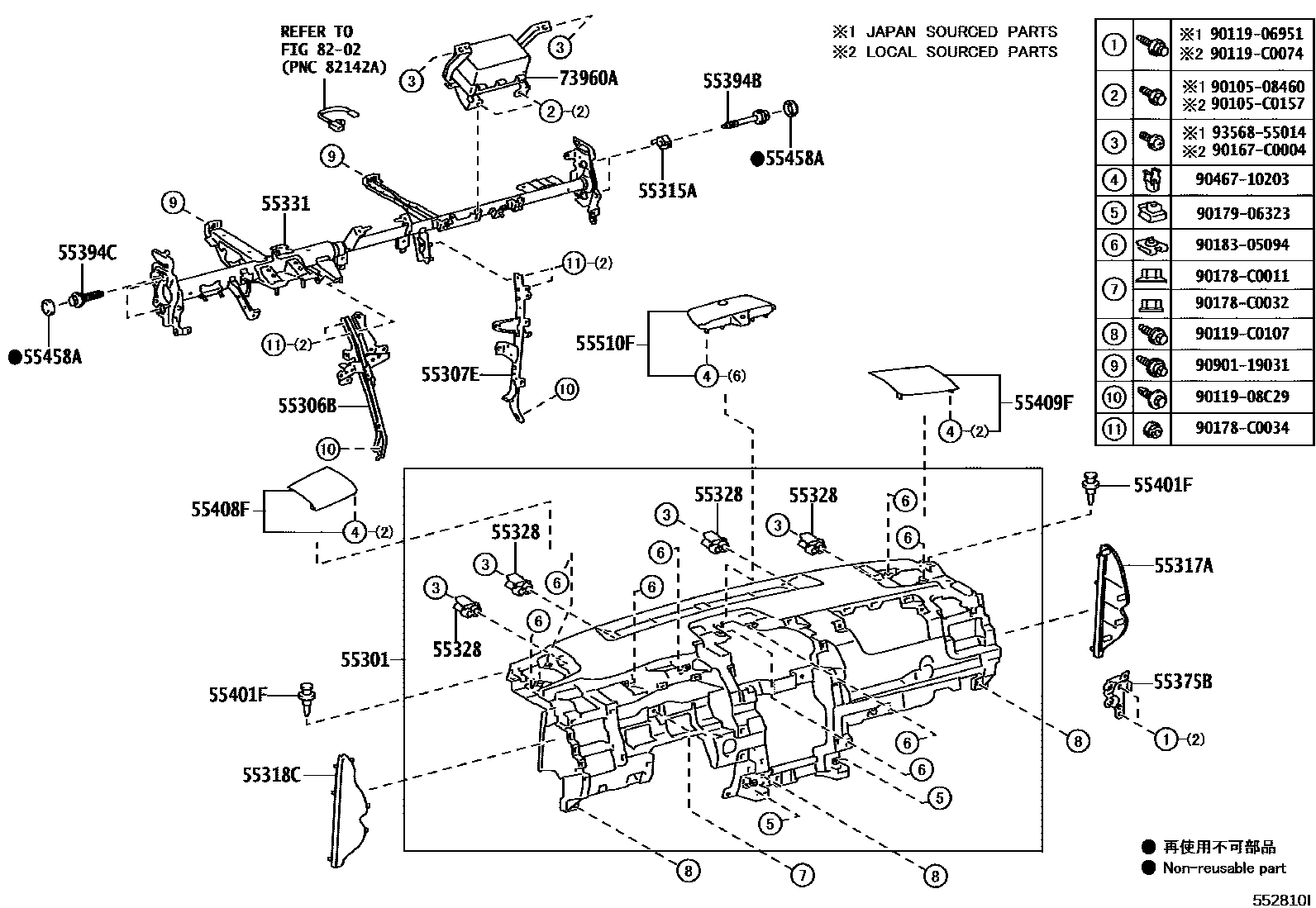

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-06340-C0iACV51,ASV50201112-201512

BLACK,TRIM0#,2#

sub55301-06341

main55301-06341-C0iASV5#..20E,25G,25V201601-201711

BLACK,TRIM2#

main55301-06341-C0iASV5#..20S,25S201601-201711

BLACK,TRIM0#,2#

main55301-06350-C0iAVV50201205-201512

BLACK,TRIM0#,2#

sub55301-06351

main55301-06351-C0iAVV50201601-201711

BLACK,TRIM0#,2#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-06110iASV5#,AVV50201112-201501

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-06130iASV5#,AVV50201112-201501

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-48160iACV51,ASV50,AVV50¥270201112-201711

55317APANEL, INSTRUMENT SIDE, RH

main55317-06200-C0iASV5#,AVV50201112-201711

BLACK,TRIM0#,2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-06130-C0iACV51,ASV50,AVV50201112-201711

BLACK,TRIM0#,2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-0E100iASV5#,AVV50201506

main55328-60090iACV51,ASV50,AVV50¥340201112-201505

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-06350iASV5#,AVV50201112-201501

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-06190iASV5#,AVV50201112-201501

55394BBOLT, INSTRUMENT PANEL

main90119-C0285iASV5#,AVV50201112-201501

55394CBOLT, INSTRUMENT PANEL

main90119-C0284iASV5#,AVV50201112-201501

55401FCLIP(FOR SAFETY PAD)

main52161-02040iASV5#,AVV50201506

(L)

main52161-16010iASV5#,AVV50¥120201112-201506

sub52161-0K040¥120

main52161-16010iASV5#,AVV50¥120201506

(J)

sub52161-0K040¥120

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-06090-C0iACV51,ASV50,AVV50201112-201711

BLACK,TRIM0#,2#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-06090-C0iACV51,ASV50,AVV50201112-201711

BLACK,TRIM0#,2#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110iACV51,ASV50,AVV50¥60201112-201501

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-06040-C0iASV5#,AVV50201112-201711

BLACK,TRIM0#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06200iACV51,ASV50,AVV50201112-201501

8202

9010508460

main90105-08460¥80

90105C0157

main90105-C0157

9011906951

main90119-06951¥80

9011908C29

main90119-08C29¥80

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90167C0004

main90167-C0004

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017906323

main90179-06323¥110

9018305094

main90183-05094¥90

9046710203

main90467-10203¥60

9090119031

main90901-19031¥90

9356855014

main93568-55014¥70

33 parts on this diagram · 4 diagrams in section
